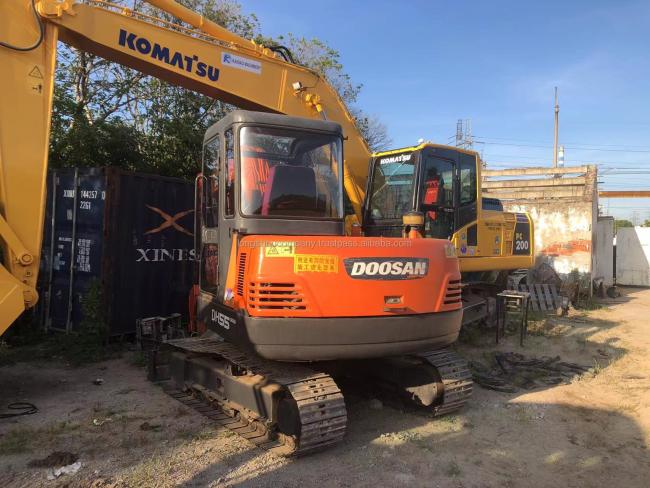

DOOSAN DX55-9C Mini Crawler Excavator 2010 Year Second Hand for Earthwork Construction

Name:ShangHai Long shou Machinery Co,Ltd

Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China

Contact :warm qiu

Whats app/Mobile phone:+8618019387660

We chat number:18019387660

specifications

Tonnage (ton) 5

Working weight of the whole machine (kg) 5500

Bucket capacity (m ³)     0.18-0.21

Boom length (mm) 3000

Stick length (mm) 1600

Power Traditional Power

Manufacturer joint venture/import

Bucket Backhoe

dynamic system

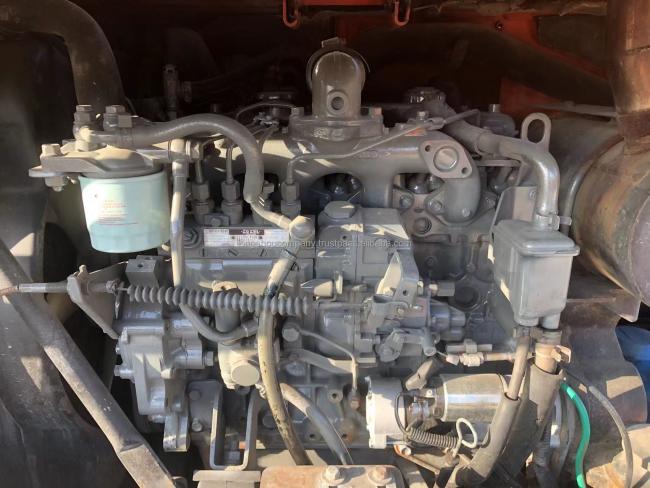

Engine model 4TNV94L

Rated power (kW/rpm) 36.2/2100

Cylinder diameter x stroke (mm) 94 * 110 Number of cylinders (piece) 4

performance

Rotation speed (rpm) 9.2

Bucket excavation force (kN) 40.2

Dipper arm excavation force (kN) 24.5 walking speed (km/h) 4.3/2.4

hydraulic system

Maximum flow rate of main pump (l/min) 2 * 57.8

Main pump type variable piston pump

Bucket oil cylinder - number x cylinder diameter x stroke (mm) 85 X 55 X 600

Stick oil cylinder - number x cylinder diameter x stroke (mm) 85 X 55 X 883

Boom oil cylinder - number x cylinder diameter x stroke (mm) 110 X 60 X 719

Oil capacity

Fuel tank (L) 115

Hydraulic oil tank (L) 62

Main body size

Total length of transportation (mm) 5850

Total transportation height (mm) 1930

Ground clearance of counterweight (mm) 685

Minimum ground clearance (mm) 360

Rear end turning radius (mm) 1650

Boarding width (mm) 1860

Total length of track (mm) 2540

Track shoe width (mm) 380

Number of Carrier Sprockets (One Side) (One)

Number of heavy wheels (one side) (number) 5

Number of track shoes (one side) (pieces) 40

Scope of work

Maximum excavation radius (mm) 6135

Maximum excavation depth (mm) 3800

Maximum excavation height (mm) 5795

Maximum unloading height (mm) 4110

Maximum vertical excavation depth (mm) 3125

Maximum excavation radius of the parking surface (mm) 6000

Maximum effective excavation depth (mm) 3800
