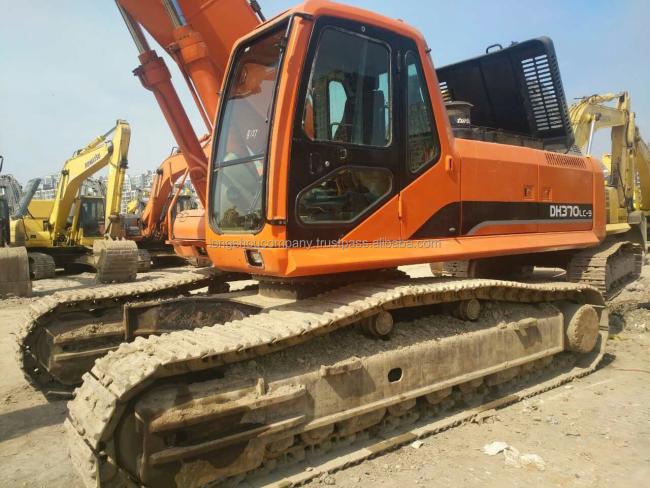

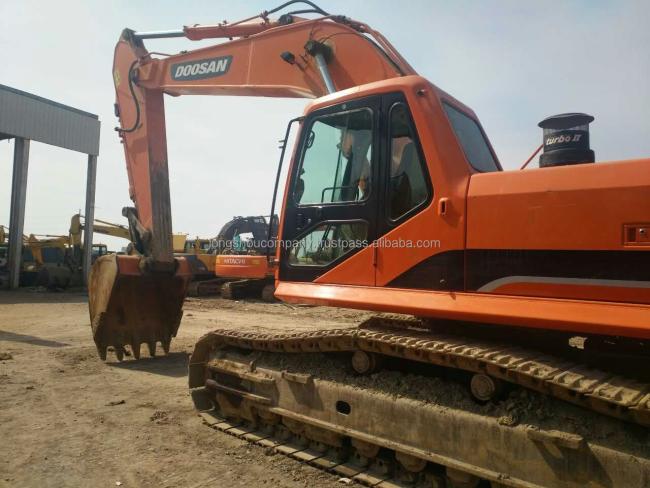

37500 KG Doosan Used DH370LC-7 Excavator with Good Condition 30Ton 225 220 300
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Olivia
Whats app/Mobile phone:+8618701954897
We chat number:18701954897
specifications
Tonnage (ton) 37
Working weight of the whole machine (kg) 37500
Bucket capacity (m ³) 1.2-2.01
Boom length (mm) 6500
Stick length (mm) 3200
Power Traditional Power
Manufacturer joint venture/imported bucket backhoe
dynamic system
Engine model Doosan DE12TIA
Rated power (kW/rpm) 202/2000
Cooling method: water cooling
performance
Rotating speed (rpm) 9.3
Bucket excavation force (kN) 226.4-240.1
Dipper arm excavation force (kN) 165.6-175.4
Walking speed (km/h) 2.8-4.8
Main body size
Total length of transportation (mm) 11310
Total transportation width (mm) 3350
Total transportation height (mm) 3560
Full height of cab (mm) 3170
Ground clearance of counterweight (mm) 1275
Minimum ground clearance (mm) 540
Rear end turning radius (mm) 3500
Total length of track (mm) 5215
Track gauge (mm) 2750
Track shoe width (mm) 600
Total width of track (mm) 3350
Track grounding length (mm) 4250
Scope of work
Maximum excavation radius (mm) 11230
Maximum excavation depth (mm) 7858
Maximum excavation height (mm) 10400
Maximum unloading height (mm) 7245
Maximum vertical excavation depth (mm) 6115
Maximum excavation radius of the parking surface (mm) 11020
Maximum effective excavation depth (mm) 7420
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
