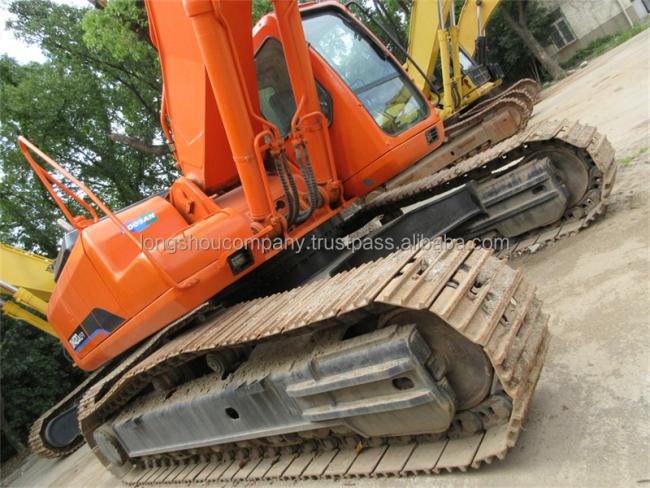

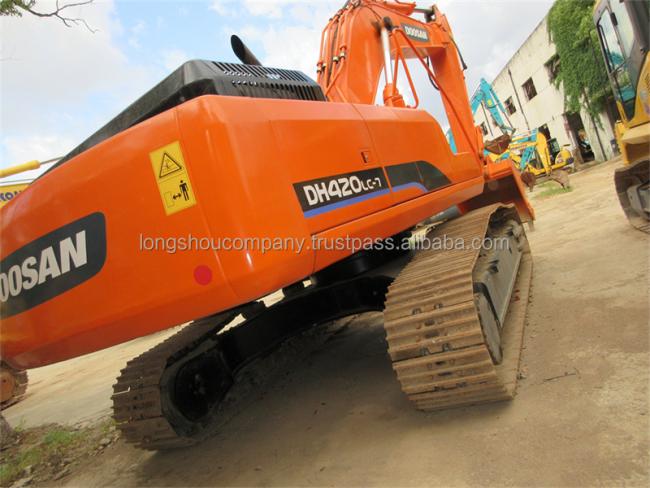

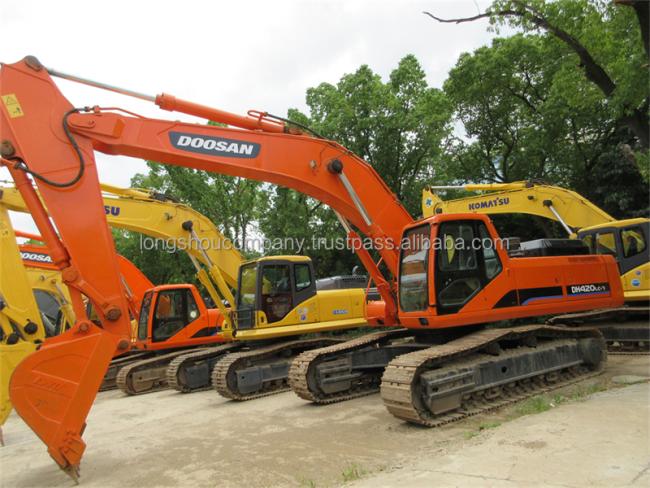

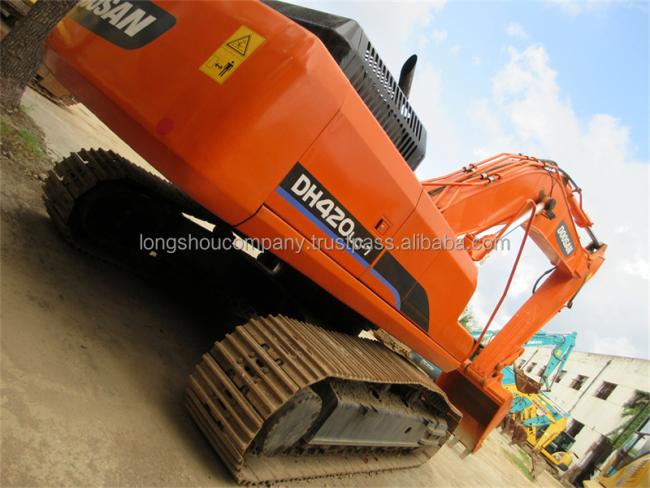

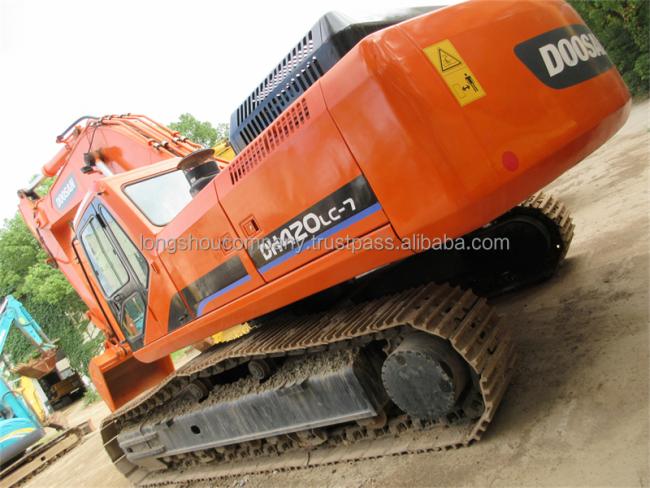

Doosan DH420LC-7 Used Excavator with ORIGINAL Hydraulic Pump and 2.18 Bucket Capacity
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Olivia
Whats app/Mobile phone:+8618701954897
We chat number:18701954897
specifications
Tonnage (ton) 42
Working weight of the whole machine (kg) 41200
Bucket capacity (m ³) 1.44-2.18

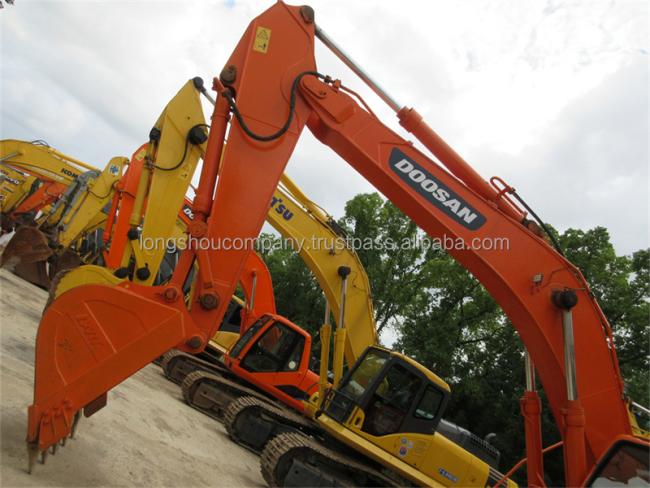

Boom length (mm) 6700
Stick length (mm) 2600/3250/4000
Origin Yantai, Shandong
Power Traditional Power
Manufacturer joint venture/imported bucket backhoe
dynamic system
Engine model Doosan DE12TIS
Rated power (kW/rpm) 210/2000
Cooling method: water cooling
performance
Rotating speed (rpm) 9.5
Bucket excavation force (kN) 242.1/264.6
Dipper arm excavation force (kN) 218.5/139.1; 176.4/193.1; 152.9/166.6
Walking speed (km/h) 3.3-5.5
hydraulic system
Maximum flow rate of main pump (l/min) 2 × 315
Hydraulic circuit for walking (Mpa) 26.5
Rotary hydraulic circuit (Mpa) 26.5
Main pump type: parallel inclined axis axial piston pump, working hydraulic oil circuit (Mpa) standard 31.4/boost 34.3, pilot pump flow rate (L/min) 24
Main body size
Total length of transportation (mm) 11690
Total transportation width (mm) 3350
Total transportation height (mm) 3575
Full height of cab (mm) 3150
Ground clearance of counterweight (mm) 1277
Minimum ground clearance (mm) 540
Rear end turning radius (mm) 3660
Boarding width (mm) 2990

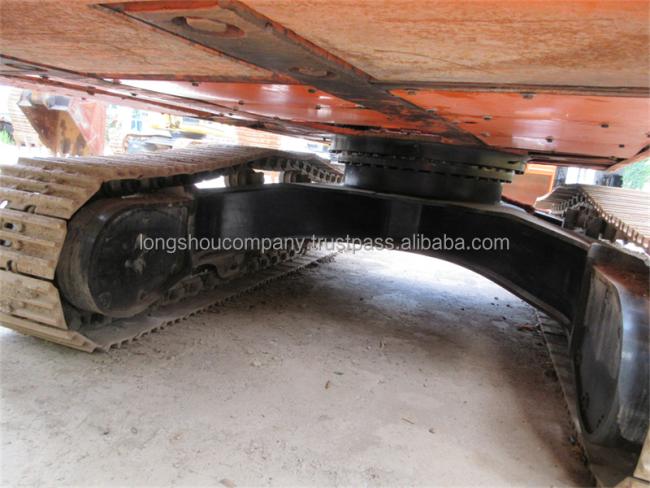

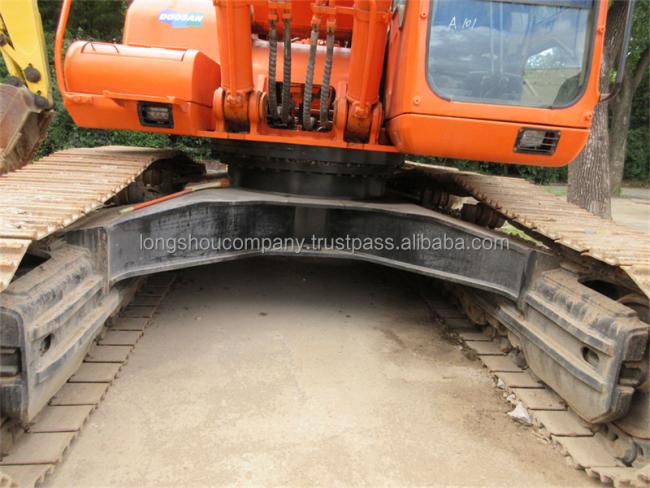

Total length of track (mm) 5215
Track gauge (mm) 2750
Track shoe width (mm) 600
Total width of track (mm) 3350
Track grounding length (mm) 4250
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
