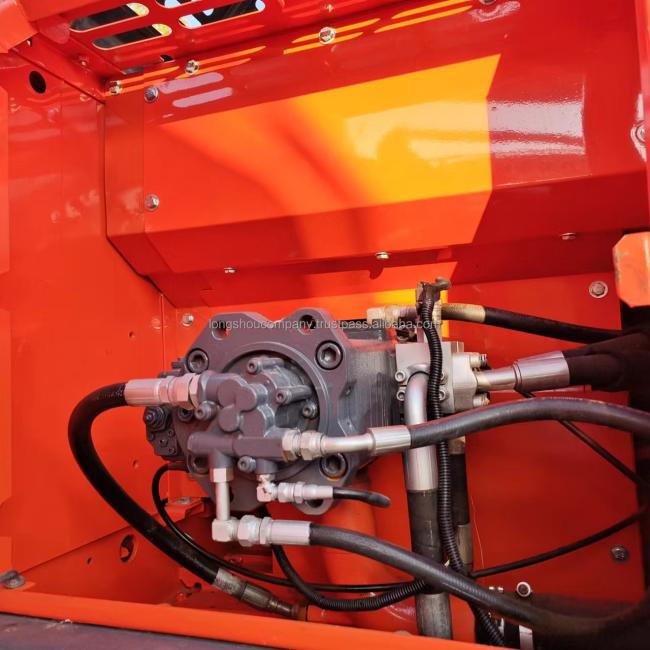

2018 Used Doosan DX225 Excavator 22 Ton Crawler Excavator with Original Hydraulic Pump
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Olivia
Whats app/Mobile phone:+8618701954897
We chat number:18701954897
specifications
Tonnage (ton) 22
Working weight of the whole machine (kg) 21800
Bucket capacity (m ³) 1.05 m3
Boom length (mm) 5700
Stick length (mm) 2900
Power Traditional Power
Manufacturer joint venture/import
Bucket Backhoe
dynamic system
Engine model DL06
Rated power (kW/rpm) 115 (154 HP)/1900
Cylinder diameter x stroke (mm) 100 * 125
Number of cylinders (6)
Work form inline
performance
Ground specific voltage (Kpa) | 44
Rotation speed (rpm) 10.5
Bucket excavation force (kN) 152
Dipper arm excavation force (kN) 108
Walking speed (km/h) 5.7/3.1
hydraulic system
Maximum flow rate of main pump (l/min) 2 X 212/min
Oil capacity
Fuel tank (L) 400
Hydraulic system (L) 195
Main body size
Total length of transportation (mm) 9506
Total transportation width (mm) 2990
Total transportation height (mm) 2891
Full height of cab (mm) 832
Ground clearance of counterweight (mm) 1096
Minimum ground clearance (mm) 475
Minimum turning radius of the front working device (mm) 562
Rear end turning radius (mm) 2794
Boarding width (mm) 1008
Total length of track (mm) 4440
Track shoe width (mm) 600
Total width of track (mm) 2990
Scope of work
Maximum excavation radius (mm) 9873
Maximum excavation depth (mm) 6592
Maximum excavation height (mm) 9616
Maximum unloading height (mm) 6830
Maximum vertical excavation depth (mm) 3929
Maximum excavation radius of the parking surface (mm) 9699
Maximum effective excavation depth (mm) 6411
