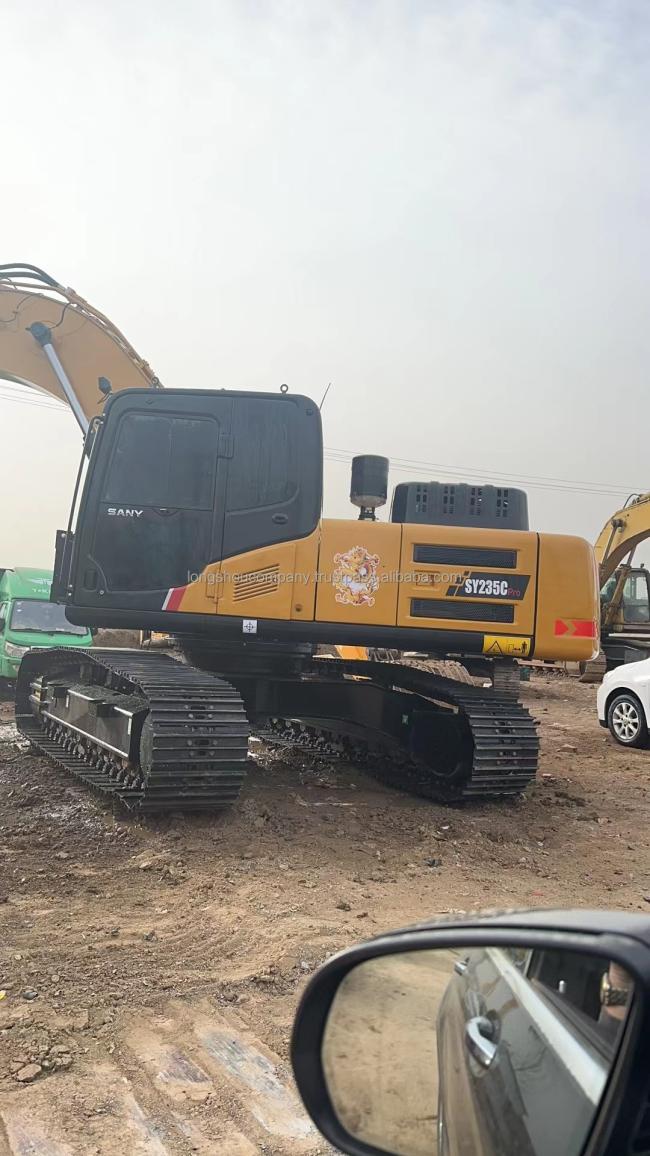

Buy Used Sany SY235C Excavator 25 Ton Digger Machine for Road Construction

Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Tony
Whats app/ Mobile phone:+8613564042317
We chat number:13564042317

Technical parameters of Sany Heavy Industry SY235C-9 excavator

Model SY235C-9

Overall size (mm) A Total length (during transportation) 9920

B total width (transportation/operation) 2980

C total height (transportation) 3550

D Upper width 2710

E total height (top of cab) 2990

F standard track shoe width 600

G gauge (transportation/operation) 2380

H minimum ground clearance 440

Tail turning radius 2890

J Track grounding length 3640

K track length 4445

L Track height 965

Scope of work (mm) a Maximum excavation height of 9640

B Maximum unloading height 6725

Maximum excavation depth of 6785

Maximum vertical arm excavation depth of 5845

Maximum excavation distance of 10150

F Minimum turning radius 3800

The maximum height at the minimum turning radius of g is 7940

Performance parameters Total weight kg 24200

Standard bucket capacity m3 1.2

Rated power kW/rpm 128.5/2100

Walking speed (high/low) km/h 5.5/3.5

Rotating speed rpm 11

Climbing ability 70%/35 °

Grounding specific pressure kPa 47.6

Engine model 6BG1-XABEC-03-C2

Bucket excavation force (KN) 175

Dipper arm excavation force (KN) 122

Optional bucket (m3) 1.1~1.2

Optional shoe bandwidth (mm) 800/700
