0.5 tons of Double-stage reverse osmosis water treatment with Wooden Case

Price Negotiable
Price: negotiable
MOQ: 1 set
Delivery Time: 7 days
Brand: HYJB
Product Description

0.5 tons of Double-stage reverse osmosis water treatment with Wooden Case



Product Description



Dual-stage reverse osmosis water purifier mainly utilizes reverse osmosis membrane for water filtration. Reverse osmosis membrane is a kind of semi-permeable membrane, which can filter out the ions, solutes, bacteria and other substances in the water after applying pressure on one side of the water, so as to obtain pure water. In use, the reverse osmosis membrane is also preceded by a layer of quartz sand filter and a layer of activated carbon filter. Their role is to let the water of large particles of impurities, odor and other substances are filtered out, so as to extend the service life of the reverse osmosis membrane.





Parameter Table



Model
Water Making Ability
Inlet Caliber
Effluent Caliber
Blowdown alCer
Size(mm)
Power
YSRO-0.5T
0.5m3/h
DN20
DN20
DN15
1500×600×1500
1.3kw
YSRO-1T
1m3/h
DN25
DN25
DN20
1700×600×1500
2.1kw
YSRO-2T
2m3/h
DN32
DN25
DN20
2500×1000×1950
4.4kw
YSRO-3T
3m3/h
DN40
DN32
DN25
2500×1200×2150
4.5kw
YSRO-5T
5m3/h
DN50
DN40
DN32
2500×1350×2150
7.0kw
YSRO-8T
8m3/h
DN50
DN50
DN40
3500×1500×2150
11kw
YSRO-10T
10m3/h
DN50
DN50
DN40
3500×1600×2300
15kw





Key Advantage

High retention and removal of organic matter, colloids, particles, bacteria, viruses, heat sources, etc. There is no phase change in the separation process, and it has reliable stability. Small energy consumption, high water utilization rate, lower operating costs than other desalination equipment. Small equipment size, simple operation, easy maintenance, strong adaptability, long service life.





Maintenance





First, replace the filter element
The core part of the two-stage reverse osmosis water equipment is the cartridge, which can effectively filter the impurities and harmful substances in the water. However, after a period of time, the filter element is easy to accumulate a large amount of dirt, affecting the filtration effect, so it is very important to replace the filter element regularly.
Normally, it is recommended to replace the cartridge every 6 months. However, the specific replacement cycle should still be based on the actual use and water quality conditions to decide.
Second, cleaning the filter shell
In addition to replacing the cartridge, cleaning the filter shell is also very important maintenance content. The filter shell can effectively prevent impurities in the water into the cartridge, but after a long time of use, the filter shell will accumulate a lot of dirt inside, affecting the filtration effect.
Therefore, when replacing the filter cartridge, the filter housing should be cleaned at the same time. The specific operation method is to remove the filter shell, rinse the inside with water, and use cleaner for thorough cleaning. After cleaning, make sure that the inside of the filter housing is dry so that the filter element is not damp when it is loaded.

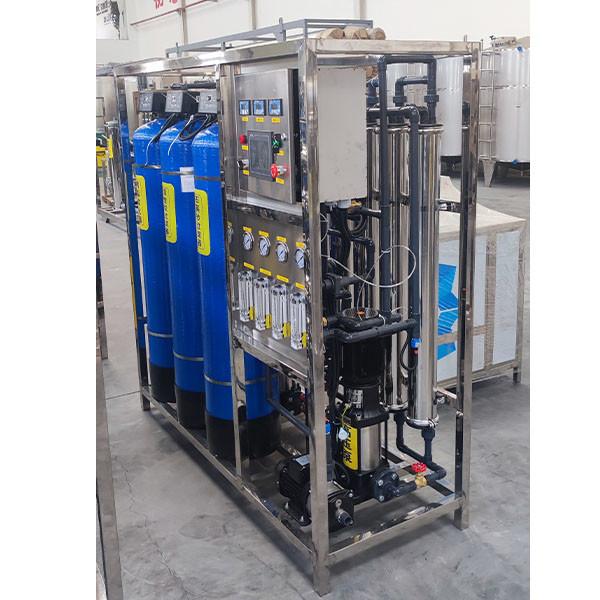

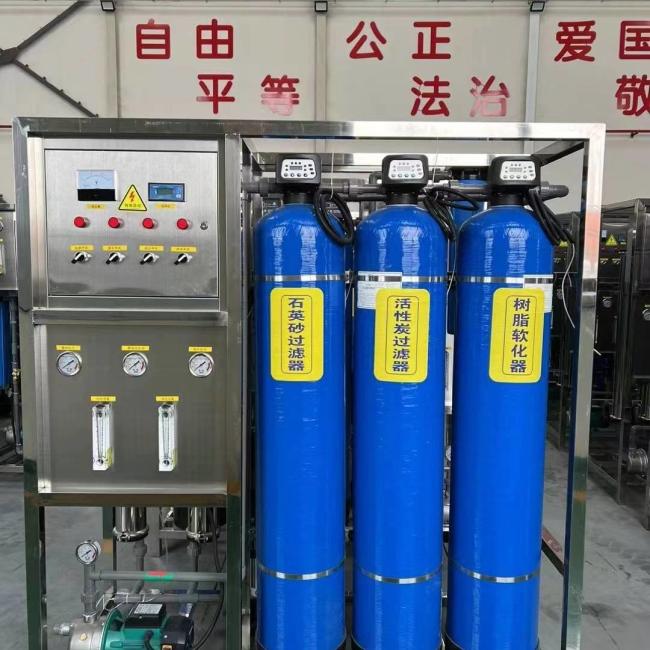

Product Display
