0.25T Two Tanks Of Double-Stage Stainless Steel Reverse Osmosis Equipment For Industrialization
0.25T Two Tanks Of Double-Stage Stainless Steel Reverse Osmosis Equipment For Industrialization
Product Description:
Original water tank -- original water pump -- quartz sand filter -- activated carbon filter -- scale inhibition feeding device -- security filter -- primary high pressure pump -- primary RO reverse osmosis system -- secondary high pressure pump -- secondary RO reverse osmosis system -- pure water tank
Parameter Table:
|
Model
|
Water Making Ability
|
Inlet Caliber
|
Effluent Caliber
|
Blowdown alCer
|
Size(mm)
|
Power
|
|
YSRO-0.5T
|
0.5m3/h
|
DN20
|
DN20
|
DN15
|
1500×600×1500
|
1.3kw
|
|
YSRO-1T
|
1m3/h
|
DN25
|
DN25
|
DN20
|
1700×600×1500
|
2.1kw
|
|
YSRO-2T
|
2m3/h
|
DN32
|
DN25
|
DN20
|
2500×1000×1950
|
4.4kw
|
|
YSRO-3T
|
3m3/h
|
DN40
|
DN32
|
DN25
|
2500×1200×2150
|
4.5kw
|
|
YSRO-5T
|
5m3/h
|
DN50
|
DN40
|
DN32
|
2500×1350×2150
|
7.0kw
|
|
YSRO-8T
|
8m3/h
|
DN50
|
DN50
|
DN40
|
3500×1500×2150
|
11kw
|
|
YSRO-10T
|
10m3/h
|
DN50
|
DN50
|
DN40
|
3500×1600×2300
|
15kw
|
Key Advantages:
Efficient purification: The two-stage reverse osmosis process through double membrane treatment can remove impurities such as dissolved solids and ions from the water and provide high purity water.
Energy saving and environmental
Protection: The two-stage reverse osmosis equipment adopts the mode of continuous operation, and uses the concentrated water generated by the first stage reverse osmosis as the feed water of the second stage reverse osmosis, reducing the waste water generation and reducing energy consumption.
Flexible and reliable: two-stage reverse osmosis equipment has high operational flexibility, at the same time, the equipment structure is compact, stable and reliable operation.
Maintance:
1. Take regular water samples for testing
2. Record the operating parameters of the equipment regularly
3. Record the result of each maintenance

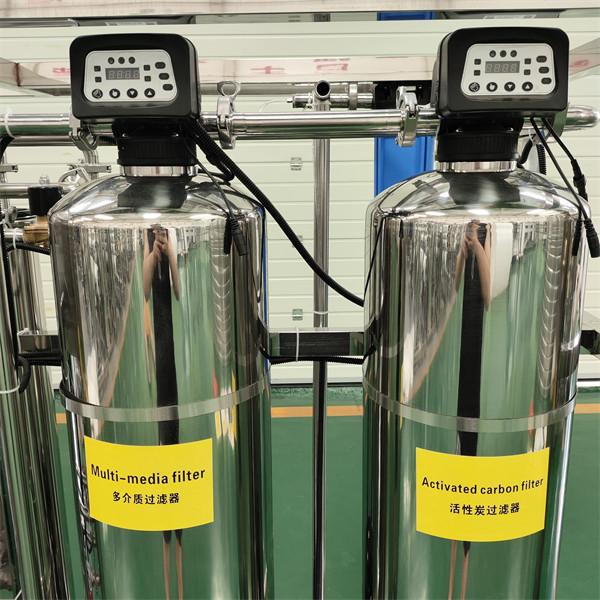

Picture Display:
