Stainless Steel 18T Reverse Osmosis System for Manufacturing Plant Water Treatment

Description

RO reverse osmosis water purification equipment feed water for municipal tap water (raw water quality in line with GB5749-2006 "drinking water health standards"), the design of multi-stage pretreatment + a RO reverse osmosis process * can make the water quality: conductivity is less than 10.0 μs/cm; multi-stage pre-treatment + secondary RO reverse osmosis process * can make the water quality: conductivity is less than 2.0 μs/cm. The reverse osmosis process, with stable performance, high degree of intelligence, easy maintenance and other characteristics, is basically a comprehensive replacement of the original electrodialysis, ion exchange and other desalination processes.

Parameter Table

Functional features:

A pretreatment system design of science, rationality, otherwise affect the service life of the RO membrane and the quality of produced water; two for the RO reverse osmosis membrane host design, to comprehensively consider the arrangement of the membrane, membrane selection, and many other elements; three for the system's maintenance and maintenance of the overall design, to involve the RO reverse osmosis water purification equipment, membrane cleaning, replacement of consumables for the treatment unit, equipment maintenance space, electrical control of the Heat dissipation, ventilation between equipment. The main configuration of the equipment: the core component RO membrane using the United States Dow Chemical or the United States Hydronics low-pressure membrane, stable performance, low energy consumption; pressure lift pump: the use of listed companies in the South Special Pump stainless steel multi-stage centrifugal water pump, with low noise, energy efficiency and other advantages; EDI module: the use of imported stable electric continuous desalination equipment, with high recovery rate, no thick water cycle, 2 years warranty, etc. Advantages; UV lamps: the use of stable output of 273 nanometer wavelength of the Stable output of 273 nm wavelength lamps, high sterilization rate, long service life, 9,000 hours; system piping: the use of food-grade sanitary U-PVC/SUS304/316 fittings, 50 years without leakage, no dissolution and other characteristics. Our complete set of equipment company warranty: two years, for your safe production. Process.

Main Components:
1,Pre-treatment part (including: quartz sand filtration, activated carbon filtration, resin softening filtration, precision filtration or UF ultrafiltration process

2, reverse osmosis part (including: high-pressure multi-stage pumps, reverse osmosis membrane elements, reverse osmosis membrane shells, system control instruments, etc.)

3, post-treatment part (including: EDI desalination, polishing filter, water supply system, sterilization device, fine filtration equipment)

4,Single set of processing capacity: 0.5-100 tons / hour

5,System desalination rate: more than 99.9%. Art.

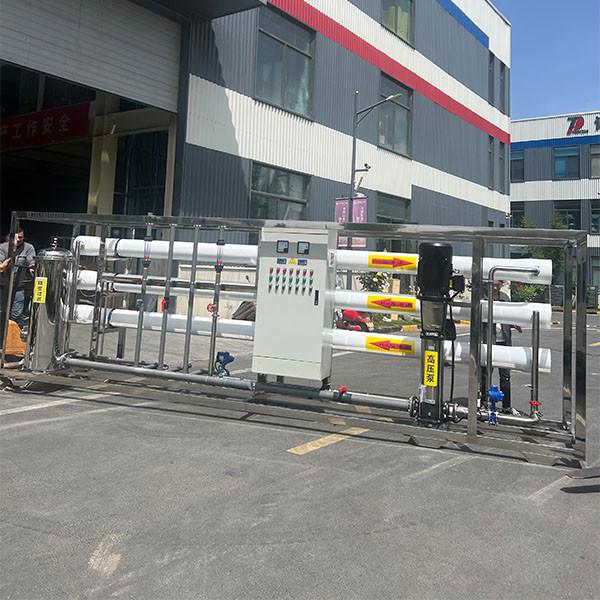

Product  Display
