1 Ton Dual Stage EDI Water Purification Equipment For Medical Purposes
1 Ton Dual-Stage With EDI Ultrapure Water Equipment Machine For Medical Purposes
Product Description
Equipment used to produce pure water for medical needs. The whole system is also made of all stainless steel material combination, and before the water point must be equipped with sterilization device. Using reverse osmosis, EDI and other latest technology, more targeted design of a complete set of high-purity water treatment process to meet the pharmaceutical companies, hospitals, purified water production, I.V. production of water requirements.
Parameter Table
| Model | Water Making Ability |
Inlet Caliber(mm) |
Effluent Caliber(mm) |
Blowdown Caliber(mm) |
Size(mm) | Power(KW) |
| EDI-2-PVC-0.25T | 250L/H | 25 | 25 | 25 | 1700*800*1700 | 3 |
| EDI-3-PVC-0.25T | 250L/H | 25 | 25 | 25 | 2000*800*1700 | 3 |
| EDI-2-304-0.25T | 250L/H | 25 | 25 | 25 | 2200*650*1750 | 3 |
| EDI-3-304-0.25T | 250L/H | 25 | 25 | 25 | 2500*650*1750 | 3 |
| EDI-2-PVC-0.5T | 500L/H | 32 | 25 | 25 | 1700*800*1700 | 3.7 |
| EDI-3-PVC-0.5T | 500L/H | 32 | 25 | 25 | 2000*800*1700 | 3.7 |
| EDI-2-304-0.5T | 500L/H | 32 | 25 | 25 | 2300*700*1750 | 3.7 |
| EDI-3-304-0.5T | 500L/H | 32 | 25 | 25 | 2600*700*1750 | 3.7 |
| EDI-2-PVC-1T | 1000L/H | 32 | 32 | 32 | 2500*750*1950 | 4.6 |
| EDI-3-PVC-1T | 1000L/H | 32 | 32 | 32 | 3000*750*1950 | 4.6 |
| EDI-2-304-1T | 1000L/H | 32 | 32 | 32 | 3000*750*1950 | 4.6 |
| EDI-3-304-1T | 1000L/H | 32 | 32 | 32 | 3500*750*1950 | 4.6 |
| EDI-PVC-0.25T | 250L/H | 25 | 25 | 25 | 800*600*1500 | 0.37 |
| EDI-304-0.25T | 250L/H | 25 | 25 | 25 | 800*600*1500 | 0.37 |
| EDI-PVC-0.5T | 500L/H | 25 | 25 | 25 | 800*600*1500 | 0.55 |
| EDI-304-0.5T | 500L/H | 25 | 25 | 25 | 800*600*1500 | 0.55 |
| EDI-PVC-1T | 1000L/H | 32 | 32 | 32 | 800*600*1500 | 0.55 |
| EDI-304-1T | 1000L/H | 32 | 32 | 32 | 800*600*1500 | 0.55 |
| EDI-PVC-2T | 2000L/H | 32 | 32 | 32 | 1000*600*1500 | 0.75 |
| EDI-304-2T | 2000L/H | 32 | 32 | 32 | 1000*600*1500 | 0.75 |
| Description:EDI ultrapure water equipment is a two-stage reverse osmosis equipment + EDI equipment, generally 0.25-1 tons can be made into a one-piece machine, can also be made into a component level, 2 tons and above are made into a component machine | ||||||
Product Characteristics
Medical water purification equipment features, purified water storage cycle should not be greater than 24 hours, its tank should be made of stainless steel or verified non-toxic, corrosion-resistant, non-leaching contaminating ions of other materials. Protect its air vent should be installed without shedding fibers of hydrophobic sterilization filter. The inner wall of the tank should be smooth, the receiver and welds should not have dead ends and trachoma.
Key technologies
1.The system adopts full-automatic control (manual control is also available), and automatic backwashing and regeneration programs can be set when the system is running.
2.Primary reverse osmosis and secondary reverse osmosis are equipped with reflux piping, and the reverse osmosis equipment is equipped with a chemical cleaning device and a disinfection device.
3.The primary reverse osmosis piping is made of 304 stainless steel, and the secondary reverse osmosis is made of 316L stainless steel.

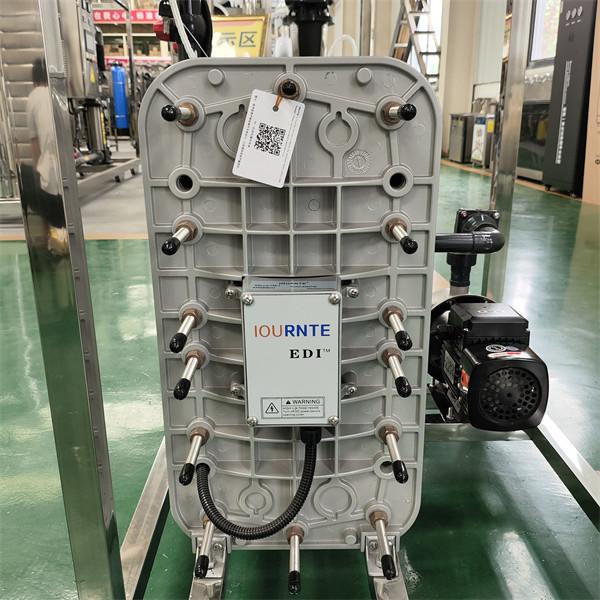

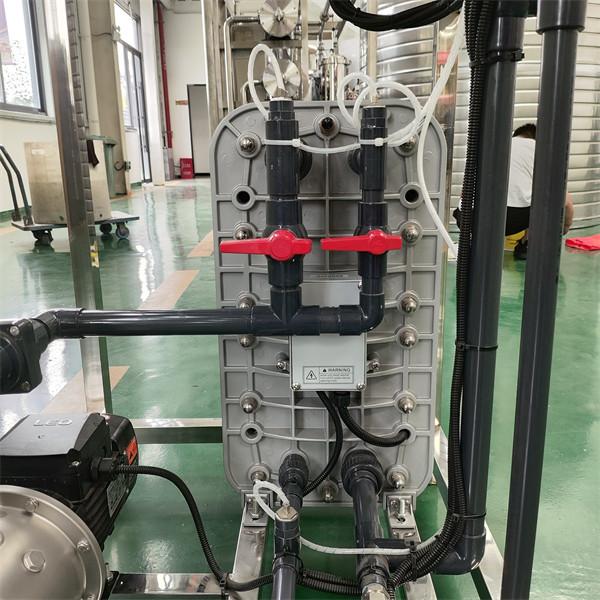

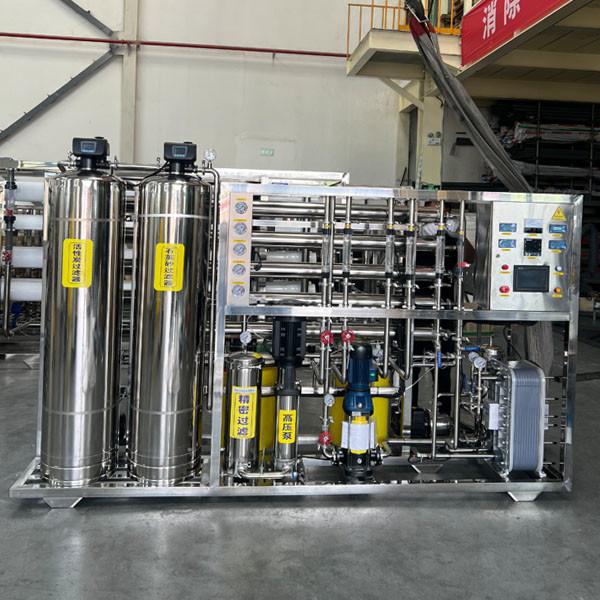

Products Display
