Three ton single pole reverse osmosis equipment
Three ton single pole reverse osmosis equipment
Efficient performance:
The desalination rate is over 97%, which can effectively remove salt and impurities from water.
The water recovery rate is as high as 75%, ensuring the efficient utilization of water resources.
Parameter Table
|
Model
|
Water Making Ability
|
Inlet Caliber
|
Effluent Caliber
|
Blowdown alCer
|
Size(mm)
|
Power
|
|
YSRO-0.5T
|
0.5m3/h
|
DN20
|
DN20
|
DN15
|
1500×600×1500
|
1.3kw
|
|
YSRO-1T
|
1m3/h
|
DN25
|
DN25
|
DN20
|
1700×600×1500
|
2.1kw
|
|
YSRO-2T
|
2m3/h
|
DN32
|
DN25
|
DN20
|
2500×1000×1950
|
4.4kw
|
|
YSRO-3T
|
3m3/h
|
DN40
|
DN32
|
DN25
|
2500×1200×2150
|
4.5kw
|
|
YSRO-5T
|
5m3/h
|
DN50
|
DN40
|
DN32
|
2500×1350×2150
|
7.0kw
|
|
YSRO-8T
|
8m3/h
|
DN50
|
DN50
|
DN40
|
3500×1500×2150
|
11kw
|
|
YSRO-10T
|
10m3/h
|
DN50
|
DN50
|
DN40
|
3500×1600×2300
|
15kw
|
Excellent effluent quality:
Due to the effective removal of microorganisms such as bacteria, organic matter, and inorganic substances such as metal elements by reverse osmosis, the effluent quality is superior to other methods.
Clear, sweet, sterile, low salt, no scale, pollution-free, and containing certain trace elements and minerals.
Easy to operate:
The entire process can be completed under normal temperature conditions without the need for special operating conditions.
The equipment can operate automatically through PLC programs and has a 24-hour continuous water production function.

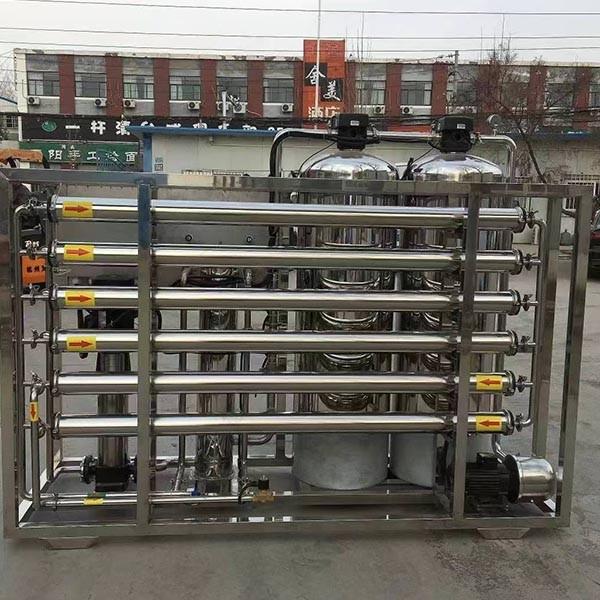

Product Display
