6-Ton Dual Stage Pure Water Equipment High-Efficiency Water Treatment Solution For Industrial

Price Negotiable
Price: negotiable
MOQ: 1set
Delivery Time: 7 days
Brand: HYJB
Product Description

6-Ton Dual Stage High-Efficiency Water Treatment Solution For Industrial



Product Description:



The six ton dual stage water treatment equipment is an efficient and advanced water treatment system designed to meet the demand of processing six tons of water per hour. This device integrates pre-treatment, two-stage reverse osmosis, softened water, ultrafiltration, and possible subsequent treatment systems (such as EDI). Through multiple filtration and purification steps, it thoroughly removes various impurities, harmful substances, and ions from the water, ensuring that the purity and quality of the effluent meet high standards. The six ton dual stage water treatment equipment is widely used in various fields such as industry, medical, chemical, electronics, and drinking, providing high-quality water sources for various industries.



Parameter Table:

Model
Water Making Ability
Inlet Caliber
Effluent Caliber
Blowdown alCer
Size(mm)
Power
YSRO-0.5T
0.5m3/h
DN20
DN20
DN15
1500×600×1500
1.3kw
YSRO-1T
1m3/h
DN25
DN25
DN20
1700×600×1500
2.1kw
YSRO-2T
2m3/h
DN32
DN25
DN20
2500×1000×1950
4.4kw
YSRO-3T
3m3/h
DN40
DN32
DN25
2500×1200×2150
4.5kw
YSRO-5T
5m3/h
DN50
DN40
DN32
2500×1350×2150
7.0kw
YSRO-8T
8m3/h
DN50
DN50
DN40
3500×1500×2150
11kw
YSRO-10T
10m3/h
DN50
DN50
DN40
3500×1600×2300
15kw







Key Advantages:



1. Improvement of preprocessing system:
The pretreatment system includes multi-media filters, activated carbon filters, etc., which effectively remove suspended solids, colloids, oils, microorganisms and other impurities in the raw water, protecting the performance and lifespan of subsequent reverse osmosis membranes.
The pre-treatment system can also reduce the turbidity of water, improve its transparency, and create favorable conditions for subsequent treatment.
2. Softened water system:
Using ion exchange resin to replace hardness ions such as calcium and magnesium in water with sodium ions, reducing water hardness and preventing scale formation.
The softened water system not only protects the operational efficiency and service life of water treatment equipment, but also improves the taste and quality of water.
3. Deep purification of ultrafiltration system:
The ultrafiltration system utilizes the microporous technology of ultrafiltration membranes to apply low pressure to water for filtration, effectively removing large molecular substances such as bacteria, viruses, proteins, etc. from the water.
The ultrafiltration system provides strong support for deep purification, further improving the purity and quality of the effluent.

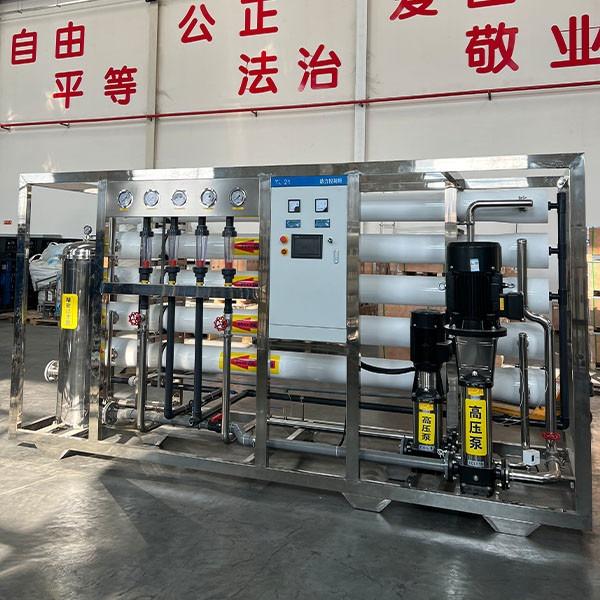

Picture Display:
