Zion EK60 High Strength Vacuum Pump Graphite Vane High Purity Material 2 Ready to Ship
Price:
$0.10 - $5.00/pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
LFYGY
Product Description
Product Description

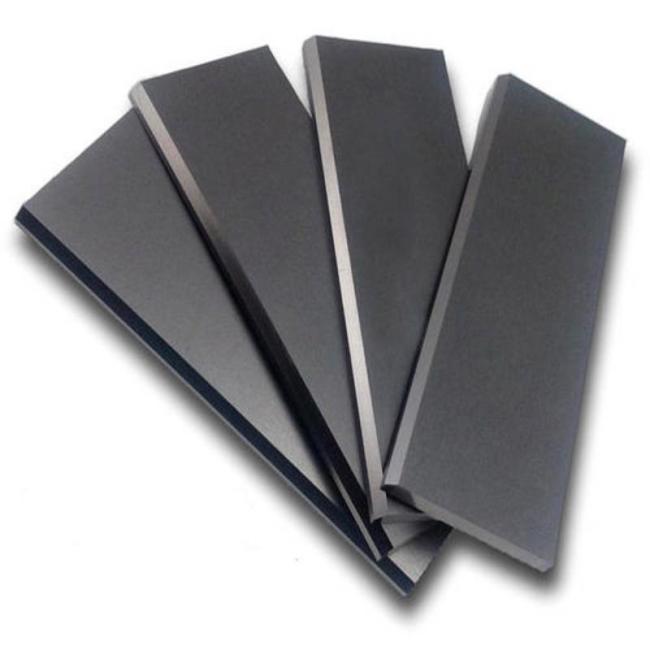

China zion EK60 high strength vacuum pump graphite vane
1.Density:2.00g/cm3
2.Compressive strength:90Mpa
3.Ash content:0.20%
4.Dimension:we have lots of standard size in stock, also can produce as per your size.
Graphite vanes&blade processed by excellent graphite material,density: 2.0g/cm3.
Widely used for various mechanical equipment, vvacuum pump etc.
With good properties of corrosion resisting, self-lubrication,high and low temperature durability,thermal stability.
Main Features
•Self lubricating – dry running
•Low wear rate
•Low coefficient of thermal expansion
•Dimensionally stable
•Compatible with food & pharmaceuticals
•Excellent thermal shock
•Good hardness
•Good impact resistance
•Excellent strength
How to maintenance
01

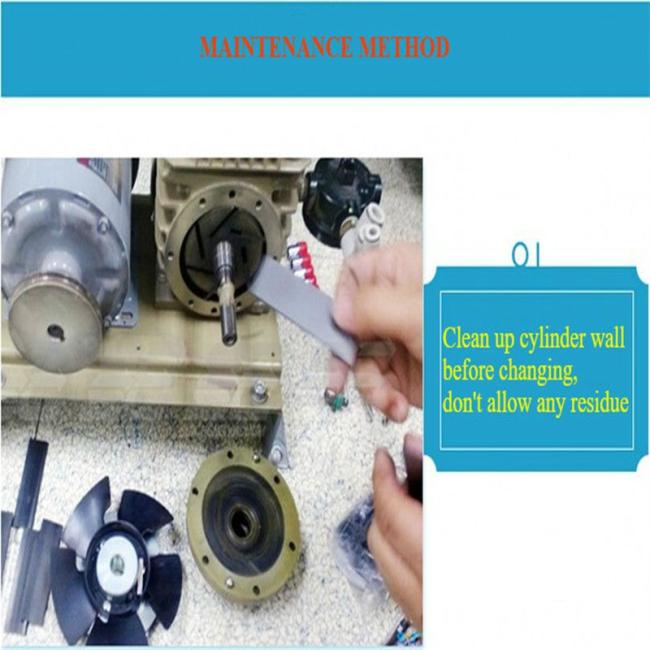

Clean up cylinder wall before changing , don't allow any residue
02

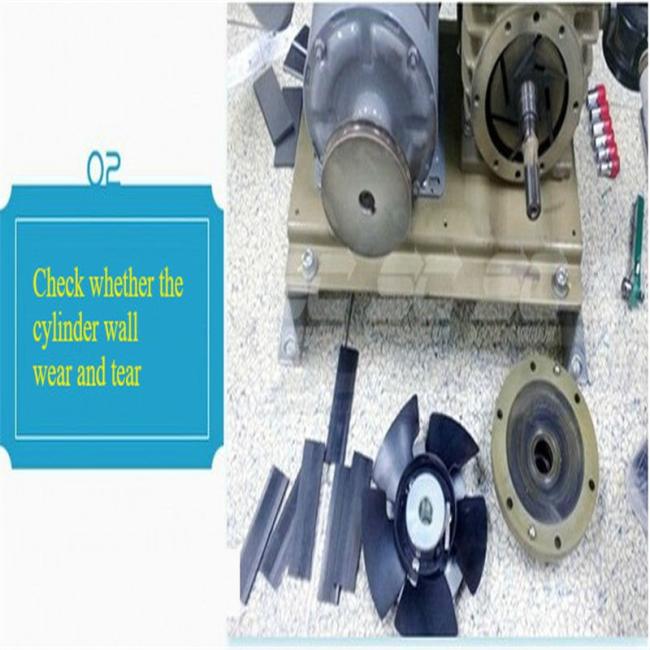

Check whether the cylinder wall wear and tear
03
Note direction of chamfer, not opposite direction, otherwise the vanes will be broken quickly
04
Regular upkeep pump bearings filling high temperature lubricating oil
05
Keep air inlet filter good work performance, replaced periodically and maintenance
06
Size must be to measure accurately from the amount of rotor slot to the cylinder wall, please leave small gap, must consider the expansion coefficient of vanes, otherwise the vanes will be creashed from two ends.
07

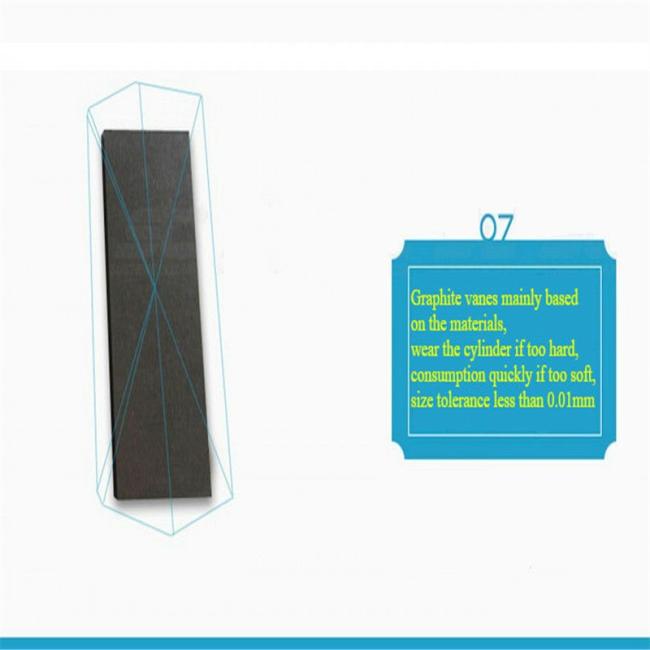

Graphite vanes mainly based on the material, wear the cylinder if too hard, consumption quickly if too soft, size tolerance less than 0.01mm
Our size talbe
Production process
01. Design 02. Drawing 03.Cutting 04.Machining

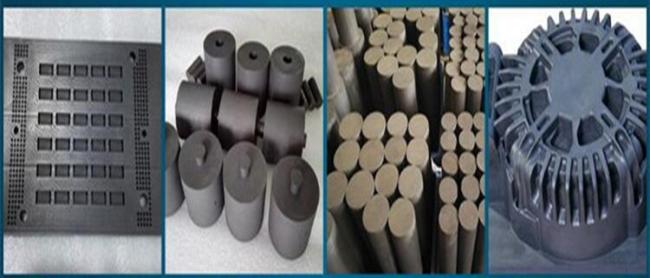

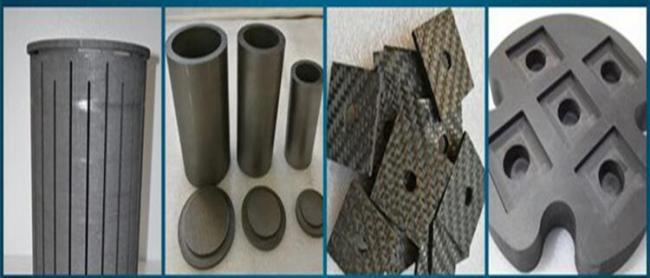

Production series
Grahpite Graphite mold Graphite Graphite
for Electronic semiconductor for sintering for Mechanical Industry for EDM
Graphite Graphite High-tech fields Application Aerospace Application
for High Tem Industry Furnace for smelting
