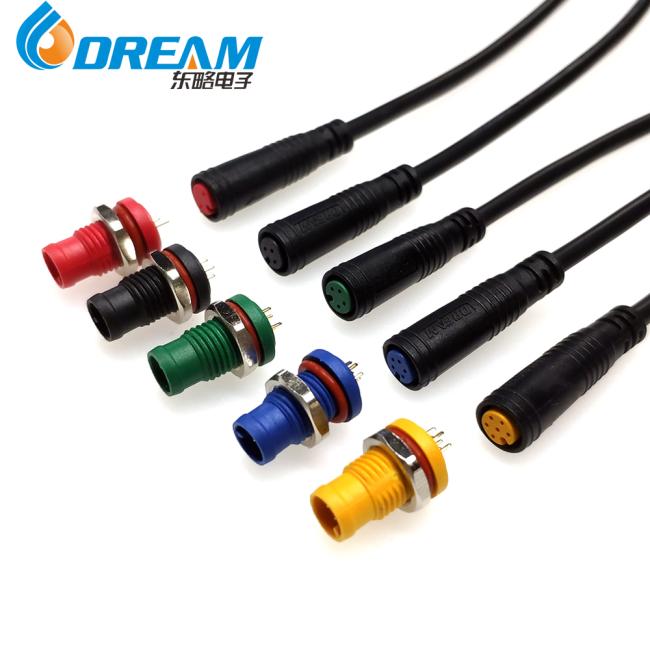

DREAM START IP66 MiniH Waterproof Connector 2/3/5/6Pin Male Female Plug Ebike Cable Bicycle
DREAM START IP66 MiniH Waterproof Connector 2/3/5/6Pin Male Female Plug Ebike Cable Bicycle
Main Usage:
This waterproof connector can be used for connecting electric bicycle drive system and
including controller and display&brake lever&throttle as well as batteries. With
waterproof/normal connector and very robust quality. It can also used for GPS as well as
medical system etc.
Specification:
ODM/ OEM E-Bike Connector Female Male 2 3 4 5 6 pin Waterproof Connector
From 2-pin/3-pin/4-pin/5-pin/6-pin signal connectors.
From 3-pin/6-pin/8-pin/9-pin/10-pin motor connectors.
Cables can be male&female connector,male&bare wires,female&bare wires.
Customized cable length and style.
Passed many certificates,very durable and high quality,extremely long using life.
|
Pins number |
Reted current |
Reted voltage |
Contact resistance |
Insulation resistance |
IP-Code |
Cable Specifications |
Cable Range |
|||||||
|
2 |
2A |
60V AC |
10mΩ |
100MΩ |
IP65 |
≤0.3mm² |
0-4mm |
|||||||
|
3 |
2A |
60V AC |
10mΩ |
100MΩ |
IP65 |
≤0.2mm² |
0-4mm |
|||||||
|
4 |
2A |
60V AC |
10mΩ |
100MΩ |
IP65 |
≤0.2mm² |
0-4mm |
|||||||
|
5 |
1.5A |
40V AC |
10mΩ |
100MΩ |
IP65 |
≤0.2mm² |
0-4mm |
|||||||
|
6 |
1.5A |
40V AC |
10mΩ |
100MΩ |
IP65 |
≤0.2mm² |
0-4mm |
|||||||
|
Other Parameters |
|
|
|
|
|
|
|
|||||||
Product Description:
1). Direct plug-in docking assembly, simple to use and convenient installation;TEST
2). For low voltage, low current of signal products tailored;
3). The plug with compact structure and dainty appearance, is more suitable for the demand;
4). Innovation and development in 2008, the first generation of electric bicycle universal signal lines.
5). Mainly used for led strip, electric bicycle accessories and other signal lines
FAQ
About us
Q: Are you Trading Company or Manufacturer?
A:We are a factory,We manufacture connector more than 18 years
Q: What is your quality control process?
A:We do 100% inspection for all products before packing. We have an excellent QC process and department,
they will inspect every product and ensure the connector can work before shipped out.
About Moq
Q: What's your Moq?
A:Without MOQ,We can accept samples order also, But we recommend buying more than 100 to save shipping.
About OEM&ODM
Q: Can you provide custom service?
A:Yes! We have profesional designer can provide free design for you.
Please send your requirements to us!
About Price
Q: What's your best price for this connector?
A:We will quote you best Factory direct price. according to your quantity, so when you making an inquiry,
please let us know the quantity you want.
