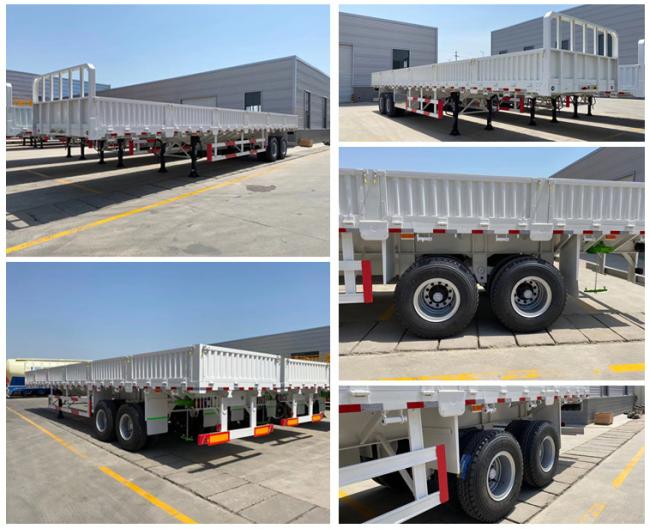

40tons Bulk 3 Axles Cargo Trailer Wall Panels with Cross Arm Type Suspension Systems
Side wall trailer can be used to transport many kinds of objects, from boxes to bulk cargo.
it can load 40-100 tons cargos, we can design it according to your requirements.| Chinese factory price 40tons bulk 3 axles cargo trailer wall panels | |
| Type | side wall semi trailer |
| Tare Weight | Approx. 6.2 T |
| Dimension | 13000*2500*3800mm |
| Loading Capacity | 30-100T |
| Axle | 13T/16T, FUWA/BPW, etc |
| Rim | 9.00*22.5/8.00-20/8.5-20 |

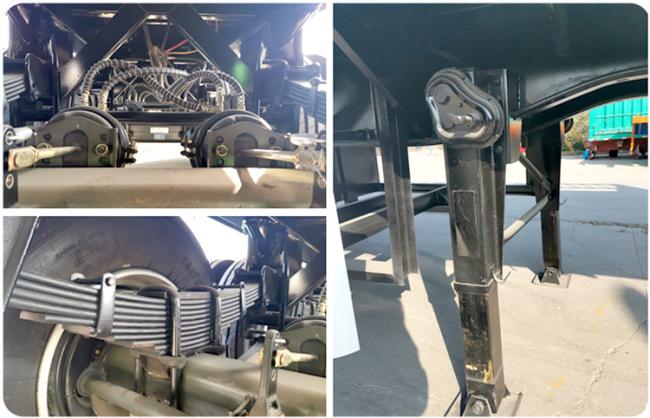

| Suspension | Mechanical suspension(Germany type or America type) or Air suspension |
| Leaf Spring | 90(width)mm*13(thickness)mm*10 layer(especial for exporting market) |
| King pin | Jost brand 2.0 or 3.5 inch |
| Spport leg | Jost brand two speed |
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm; Material is Q345B steel |
| Side beam | 16mm channel steel (Material is Q235B steel) |
| Bottom Platform | 3mm checquered steel plate |
| Side wall | 600 mm height (can be customized) |
| Brake chamber | Wabco re 6 relay valve; T30/30+T30 spring brake chamber |
| ABS | Optional |
| Twist locks | Optional |
| Valve | Wabco valve (especial for exporting market) |
| Light | LED Light (especial for exporting market) |
| Tool box | One piece 1m *0.5m*0.5m ( size can be customized) |
| Painting | Complete chassis sand blasting to clean rust, 1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer |
Main products
1. Shacman dump Truck / Tipper Truck
2. Hohan tractor Truck
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement trailer
10. High-altitude operation truck
11.Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )
Shipping method for Chinese factory price 40tons bulk 3 axles cargo trailer wall panels :
Usually Our fence cargo trailer can be shipped by Ro-ro ship or Bulk ship or Flat rack container.
Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free.
FAQ:
1. Q: What's your MOQ?
A: One unit trailer or truck.
2. Q: What is your lead time?
A: Usually it is 15-20 days after deposit received.
3. Q: What is the warranty of the trucks?
A: 12 months about engine, axle and transimission, some spare part can be 18 months. And we can help you solve every
problem about the truck by email and phone whole life.
4. Q: What's your payment terms?
A: T/T: 30% deposit by T/T,70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter.
5. Q:If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
A:You can tell me that you are using the Tractor/Primer Mover model or the distance between fifth wheel and the ground,
we can design a height that matches your Tractor.
6. Q:If We Can Provide Terms For Reducing Your Import Duties ?
A:Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction, Will Also Offer You The Best Way
For Import Duty Reduction.
7. Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
