550kv Ultra High Voltage Hollow Core Porcelain Insulators for Energy System
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
What we can do

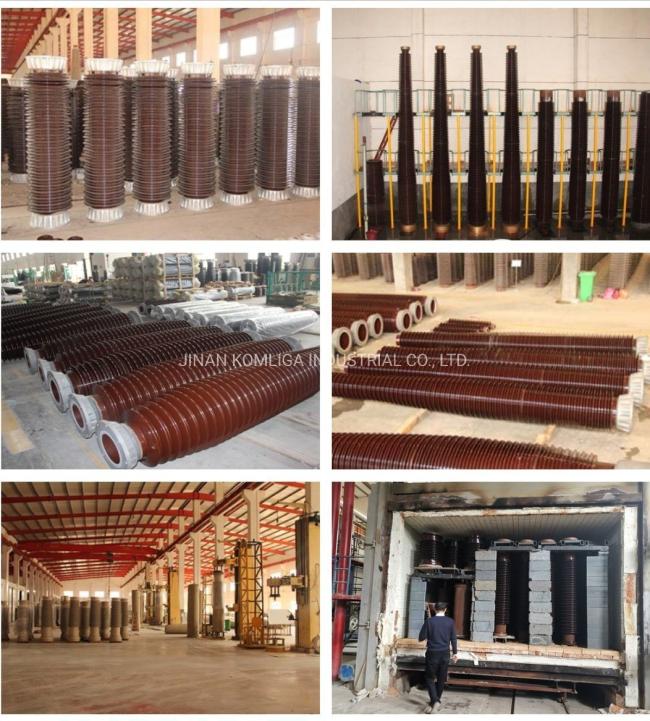

Porcelain hollow insulators
| BASIC PRODUCTION MOTHED | |
| Method of producing | Wet process |
| Material of porcelain | C120 as per IEC672-3 |
| C130 as per IEC672-3 | |
| Glaze color | Brown |
| Grey | |
| White | |
Flange material | Al. Alloy as per GB,ASTM,EN etc |
| Cast iron as per GB | |
| Other material available | |
| Max. height of single piece | 2600mm |
| Max. height for inorganic adhesive glaze boned | 4000mm |
| Max. height of multi-pieces epoxy jointed | 9500mm |
| Max. outer diameter | 1000mm |
- We are professional manufacturer with competitive price.
- Used for surge arrester, SF6 circuit breaker, instrument transformer, cable terminal, transformer and GIS and so on.
- Voltage class can be made up to 1100KV.
- Ultra-high mechanical performance, using C130 formula
- Ultra-low tolerance
- Inorganic adhesion can be up to 12M, Height for single piece can be up to 2.9M, Max dia. for single piece up to 1.1M.
- According to IEC and ANSI standard.
- Can meet customers' specific design request
- Brown or gray color both available
We are producing… --252kV insulators for inverted current transformer
--550kV insulators for inverted current transformer
-- 550kV insulator for cable terminals
--550kV insulators for transformers
--252kV insulators for circuit breaker
--363kV insulators for circuit breaker
--550kV Insulators for grading capacitors
--750kV Insulators for CVT (Capacitor voltage transformer)
--126kV Insulators for GIS (Gas insulated substation)
--252kV Insulators for GIS (Gas insulated substation)
--Inorganic bonded (Glaze bonded)insulator for363KV SF6 current transformer
--550kV & 750kV insulators for surge arresters
