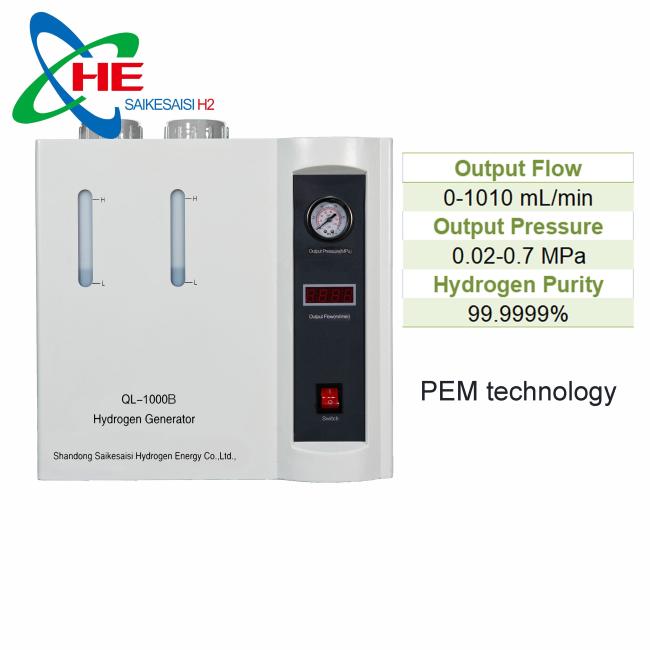

QL-1000 Hydrogen Generator High Purity 99.999% and 99% Production Rate for Lab Scale
Specifications
QL series lab scale hydrogen generator produce up to 99.9995% purity Hydrogen gas by utilizing SPE technology to electrolyze pure water (no adding alkali).
Specifications of lab scale hydrogen generator:
1. 0~1L/min flow hydrogen generator
2. H2 purity :99.999%
3. PEM technology .
4. CE certification. Own patent right.
Technical Parameter of lab scale hydrogen generator:
| Type | QL-1000 |
| Output Volume (L/min) | 0~1 |
|
Output Pressure (MPa) |
0.02~0.4 /0.02~0.7 |
|
Pluctuation Rate of Output Pressure(%) |
<0.2 |
|
H2 purity (%) |
>99.9995 |
|
Second Protective Pressure (MPa) |
0.76 |
|
Power Voltage (V) |
220±15% 110±15% 50~60Hz |
|
Input power (W) |
<500 |
|

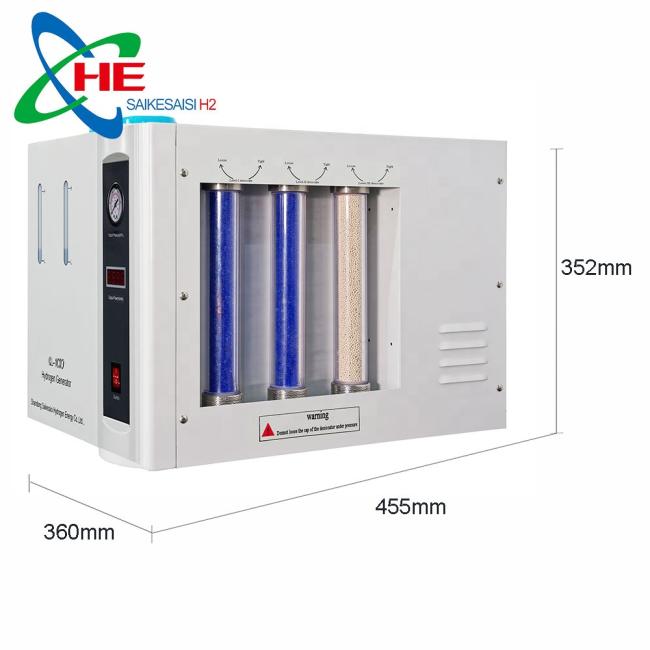

Dimension (LxWxH) mm |
485x230x380 |
|
Gross Weight (KG) |
< 25 |
Structural characteristics of the Products of lab scale hydrogen generator:
- Distance between anode and cathode is close to zero, and highly active SPE catalytic electrodes are used.
- Plural-electrode and multiunit electrolysis cell structure with excellent chemical technological process properties of the mass and heat transfer.
- Best choice of materials for multi-electrode and pluralist electrolysis cell with excellent properties of electrochemistry, anti-corrosion and bearing deactivation.
Functions and Characteristics of the Products of lab scale hydrogen generator:
- Electrolysis of pure water ( no adding alkali) to produce hydrogen with no corrosion and pollution, and the purity of hydrogen is extremely high.
- Voltage of unit cell is low, and electric resistance in the electrolysis cell is little, giving out no heat, and cycle of changing desiccants is long, producing highly pure hydrogen.
- With stable pressure and output, Hydrogen is controlled according to the requirements, and automatic control technology is perfect and reliable.
- Power consumption is less, and the electrolysis is efficient.
Applied Area of lab scale hydrogen generator:
- The small-sized products (QL-150/300/500/1000) are ideal equipment for gas chromatographs and optical fiber sintering. The products can absolutely take the place of steel cylinders of hydrogen, and can be used safely and conveniently.
- Used for fuel cell.
- Supply hydrogen for metal hydride.
- Others application: reduction protection ,purification of materials , Metal welding and smelting, fire fiber optic, surface protection , Used for cars or truck.
- storing power for wind power, solar power generator ,Etc
