This Pelican portable DRONE JAMMERS PTC-UAV-P7 is elaborately designed as a domestic and international drone-controlling device by adopting advanced technologies-DDS both at home and abroad. It is an environment-friendly jammer; it is designed to disturb low-altitude  flying drone's remote control signals without influence on surrounding signals such as those for mobile communication, communication base station, car remote control and so on. The jammer is configured with 7 frequencies signals (remote control signals+WIFI2.4G/5.8G +GPS ) to intercept drone's remote control signal.

Basic Specifications
Working Frequencies: 8 Frequencies
Total Output Power:525W
Jam Range:300-3000meters
Power Supply: AC 220V to DC-27V or 24V/45Amp charger
External Battery Working time: 1hours for optional
Product Size: 626 mm(L)×49.2mm(W)× 350mm(H)
Product Weight: appr.40kg
Package Contents: Host x 1, AC 220V to DC-48V charger x1, Antennas x 8, Tripod antennas holder for optional

Technical Parameters

Features and Advantages

1. Ultrahigh frequency board-band jamming technology
2. Wide coverage of 7 Frequencies with high effective power
3. Long jamming Range up to 3km.
4. Portable type and Friendly use
5. Support 1-2hours battery operation and high gain Directional Antennas for option
6. Effective segmentation to block each drone controlled signals.
7. Imported chips, slow start circuit design can avoid the sparking phenomenon caused by  mechanical switch, high integration and stable operation. standing wave and other fault alarms, the drone signal jammer will automatically cut off the failed module to avoid damage to the drone shield.
8. Perfect self-protection function, when the device is overheated, over output -power, standing wave and other fault alarms, the drone signal jammer will automatically cut off the failed module to avoid damage to the drone shield.

How to Use:

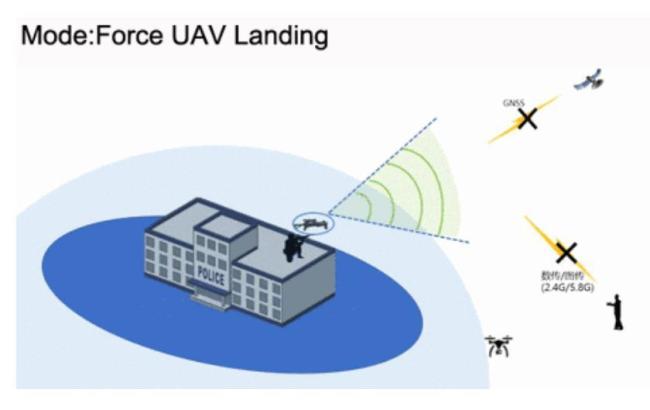

Put the Drone jammer to point at your target drone, it will cut off the signal between the controller and the drone. The drone will not be able to receive any control signals or transmit any camera signals back to the controller and drop down. The drone will be officially MIA (missing in action).

Applications:

Any sensitive locations where the drones/UAVs are not allowed to use, like Government, Oilfield, Homeland Security, Large Gathering Place, Counter-terrorism, Ar-my Security, Airport Security, Petrochemical Industry, Sports Venues, VIP Convoy Protection, Schools and Universities

etc.
