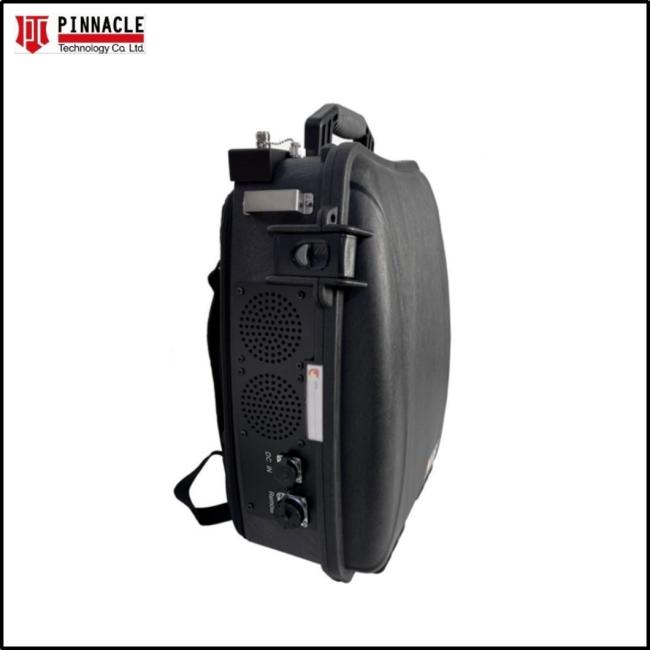

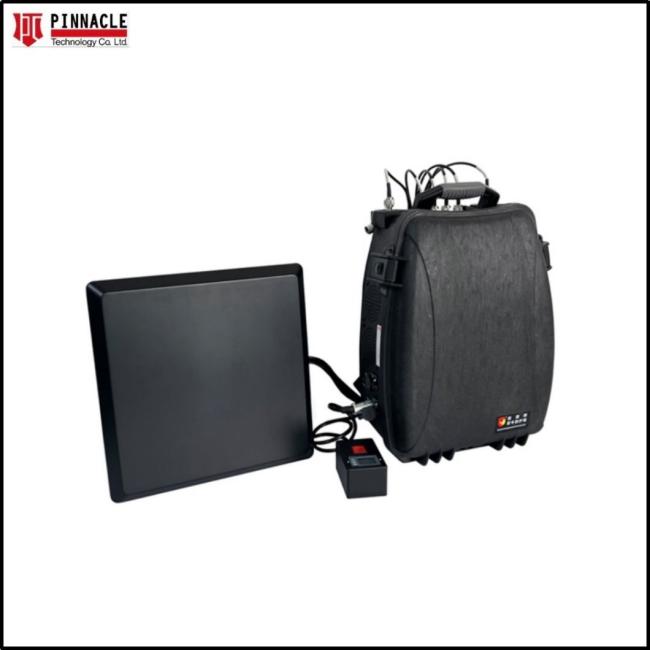

433MHz 900MHz Backpack Anti Drone Jammer Signal With Internal Battery
Price:
Contact Us
MOQ:
1set
Delivery Time:
10-20days
Brand:
PTC
Product Description
This packpack UAV defense jamming system is specially designed for single Solider and VIP protection from drone spying, which mainly for cutting off most the commercial drones signals and without influence on surrounding signals such as those for mobile communication, communication base station, car remote control and so on. The jammer is configured with 8 frequencies signals (remote control signals+WIFI2.4G/5.8G +GPS ) to intercept drone's remote control signal.
| The Specification of PTC-UAV-LB8 | ||
| Eight Bands in One Directional Antenna |
2.4-2.5GHz:25W WiFi 11.g, b, Bluetooth (Vertical Polarization) |
|
| 2.4-2.5GHz:25W WiFi 11.g, b, Bluetooth (Horizontal Polarization) |
||
| GPS L1 + GLONASS L1 :30W 1570-1620MHz |
||
| 5.7GHz-5.9GHz: 30.0W WiFi 11.a |
||
| 433MHz:40W Remote Control | ||
| 860-930MHz:30W Remote Control | ||
| 5100MHz-5350MHz: 30W WiFi 11.a | ||
| 1200-1300MHz: 25W GPS L2 , FPV | ||
| Total : 235 W | ||
| Two 2.4GHz Bands 25W per band ( 4 bands in 1 Directional Antenna, 4 bands in Omni Antenna) Cover Most Commercial Drones / UAVs Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, MAVIC Series... 100% Safe VSWR over protection (Isolator) for each modular Each Band ON/OFF and Wired Remote Control with Battery Status LCD |
||
| Power supply: | AC adapter (AC220V/110V-DC27V or 27V/18Amp) | |
| Jamming Range: | 500~1500 Meters | |
| Battery Operating Time | 1- 2 Hours (more option about battery working time) | |
| Dimension:490 x 370 x 190 mm (H × W × D) | ||
| Weight:13 Kg (approximately) just main unit not included antenna & all accessories | ||
| Operating temperature:-20ºC~ +60ºC | ||
| Electrical Specifications | ||||||||||
| Frequency Range | 1575-1620MHz | 2400-2500MHz | 5650-5920MHz | 860-930MHz | 1170-1280MHz | 433MHz | 5100-5400MHz | |||
| Gain | 12dBi | 14dBi | 17dBi | 8dBi | 8dBi | 5dBi | 17dBi | |||
| VSWR | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | |||
| Polarization | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | |||
| Horizontal beamwidth | 20±5 | 20±5 | 20±5 | 32±5 | 32±5 | 75±5 | 20±5 | |||
| Vertical beamwidth | 20±5 | 20±5 | 20±5 | 32±5 | 32±5 | 65±5 | 20±5 | |||
| Front to back ratio | ≥24dB | ≥25dB | ≥25dB | ≥25dB | ≥25dB | ≥25dB | ≥25dB | |||
| Input Impedance | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | |||
| Max Input Power | 50W | 50W | 50W | 50W | 50W | 50W | 50W | |||
| Double 2.4GHz 25W block much longer Good Isolation each other (8 bands in) |
||||||||||
| Connector | SMA-J | |||||||||
| Lightning protection | Direct Ground | |||||||||
| Mechanical Specifications | ||||||||||
| Dimensions | 390*390*50mm (only Antenna) | |||||||||
| Weight | 2.5kg | |||||||||
| Radiator Material | Alumina | |||||||||
| Radome Material | Black | |||||||||
Features and Advantages
- Ultrahigh frequency board-band jamming technology
- Wide coverage of 8 Frequencies with high effective power
- Long jamming Range up to 500m-1.5km.
- Light Weight and Friendly use
- Built-In 1-2hours battery operation and high gain Directional Antennas
- Effective segmentation to block each drone controlled signals.
- Imported chips, slow start circuit design can avoid the sparking phenomenon caused by mechanical switch, high integration and stable operation. standing wave and other fault alarms, the drone signal jammer will automatically cut off the failed module to avoid damage to the drone shield.
- Perfect self-protection function, when the device is overheated, over output -power, the amplifier will be switch off automatically.
How to Use:

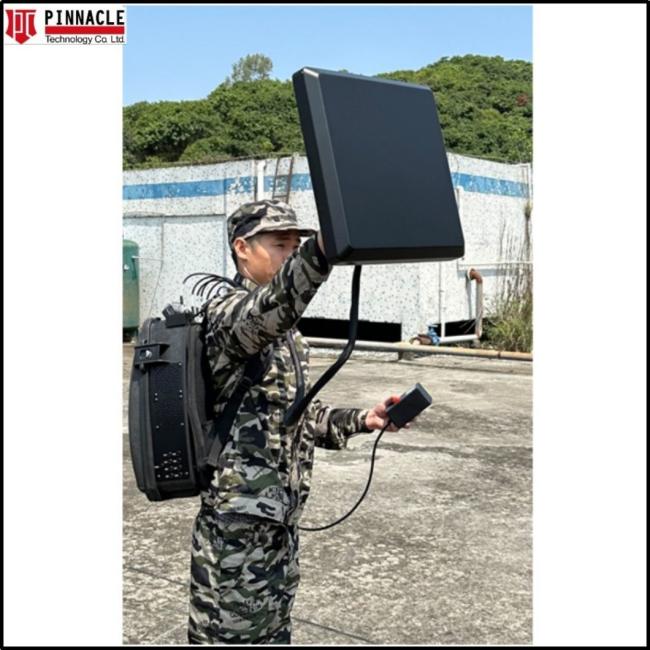

Put the Drone jammer to point at your target drone, using the gun-shaped antenna holder (with the antennas on it), it will cut off the signal between the controller and the drone. The drone will not be able to receive any control signals or transmit any camera signals back to the controller and drop down. The drone will be officially MIA (missing in action).

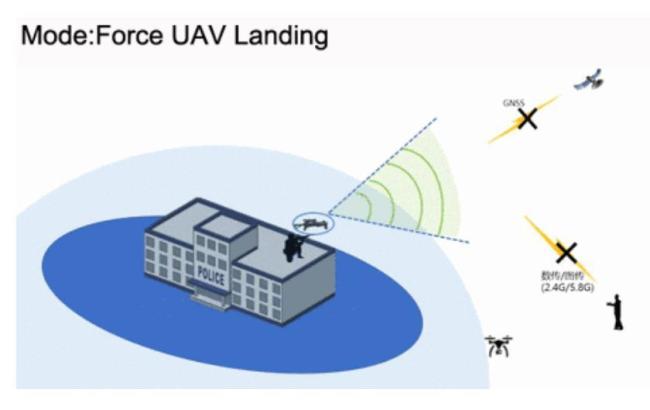

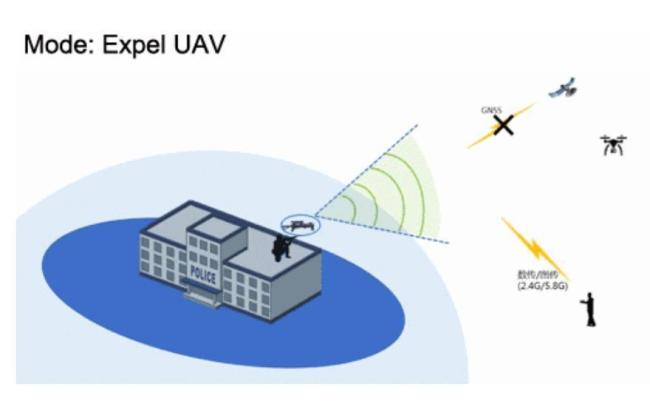

There are 2 Jamming Modes:
Applications:
Any sensitive locations where the drones/UAVs are not allowed to use, like Government, Oilfield, Homeland Security, Large Gathering Place, Counter-terrorism, Ar-my Security, Airport Security, Petrochemical Industry, Sports Venues, VIP Convoy Protection, Schools and Universities
etc.
