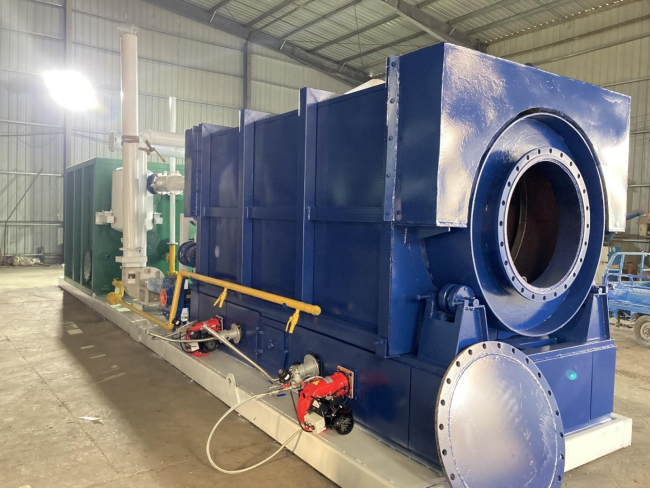

Small Plastic to Oil Machine Pyrolysis Equipment for Recycling Rubber and Plastic

Model

MJ-2 Batch Type Pyrolysis Plant

Applicable Solid Waste

Used Plastics(Except for PET&PVC)/Aluminium Film/Medical Blister Waste...

Reactor Size

D1400*L5500mm*T12mm

Reactor Material

Q245R Boiler Steel

Input Processing Capacity

3-4 TPD, 2 Batches

Operation

Batch

Final Extracted Products

Pyrolysis Oil+Carbon Black+Steel Wires(Only for Tires)+Combustible Gas

Required Energy Supply

Electric and Fuel

Power Consumption

12 kw/h

Diesel Consumption

120 Liter

Rotating Speed

0.4turn/min

Inside Pressure

<0.04mpa

Land Required

30 square meter

Workers Required

2 workers, two shifts

Loading Plan

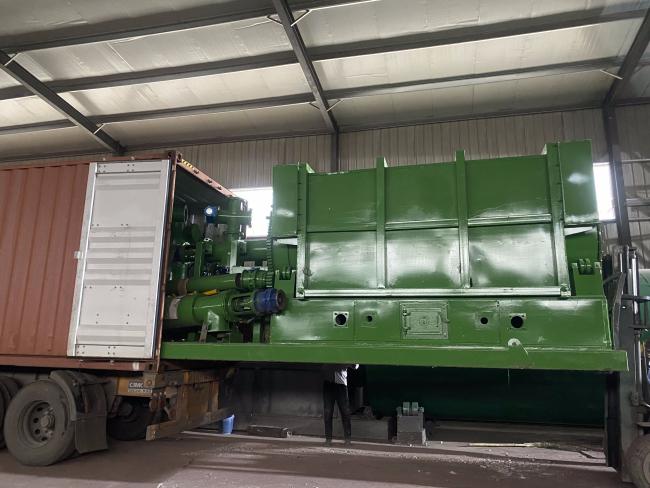

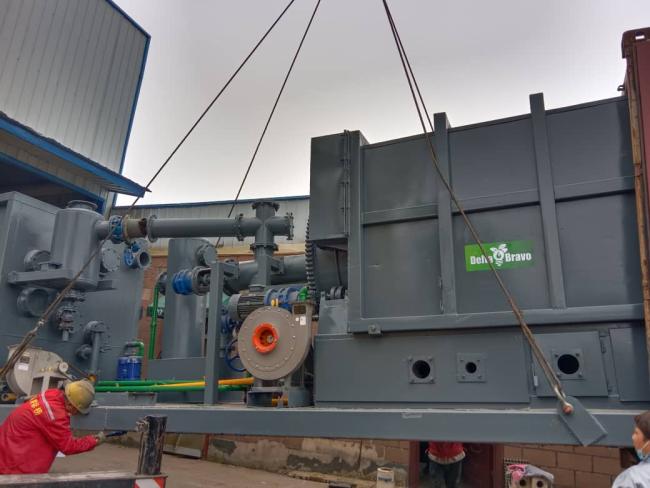

One 40HC Container

No.

Items

Specification

1

Reactor/1set

D1400*L4000*12 mm

Material: Q245R boiler steel

2

Diesel Burners/2 sets

Heating capacity:

300,000Kcal/h

Two sections of fire

3

Reactor Casing/1 set

φ1710*3300

Insulation of the reactor, inside put the high temperature ceramic wool and refractory material

4

Reactor base/1 set

Reactor supporter , and heating burner, reduce civil works , shorten installation time

5

Gas separator/1 set

Φ530*1000mm

Separating heavy oil gas and light oil gas

6

Integrated Condenser/1 set

2250*2000*2800

Oil gas condenser

oil storage tank

Water seal

7

8

9

Flue tube condenser/1 set

Φ320*1500mm

Cool down the smoke, protect draft fan and better meet environmental standards

10

Draft fan/1 set

For smoke flowing to dedustor

Power: 4KW

11

Desulfurization  Tower/1 set

Ø530*2300mm

Φ325*2000mm

12

Atomized water tank/1 set

13

Chimney/1 set

14

Electric control cabinet/1 set

Complete controlling of the electrical parts in the system

Temperature & Pressure display,

Over temperature & pressure alarm

15

Syngas burner/2 sets

For combustible gas burning

16

Air blower/1 set

For syngas burning

Power: 2.2kw

17

Water pump/1 set

2.2KW

18

Oil pump/1 set

2.2KW
