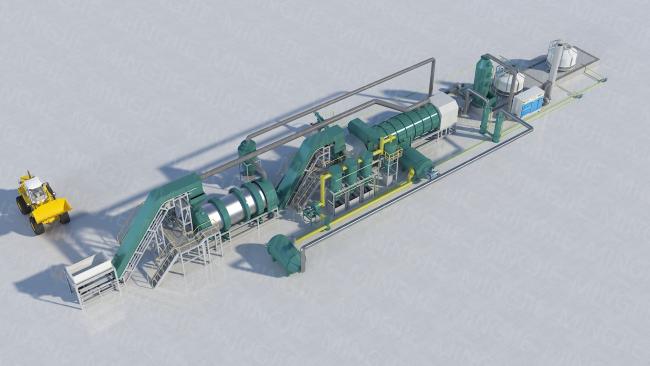

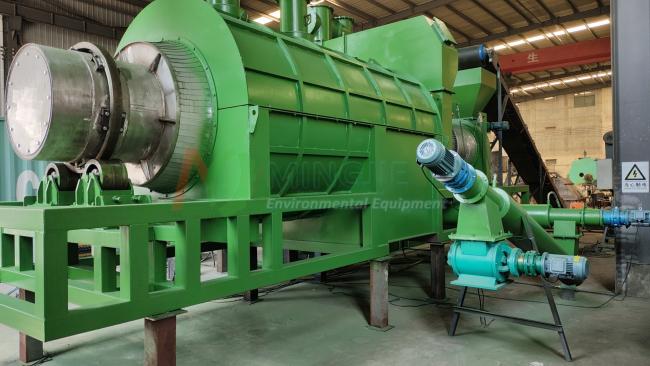

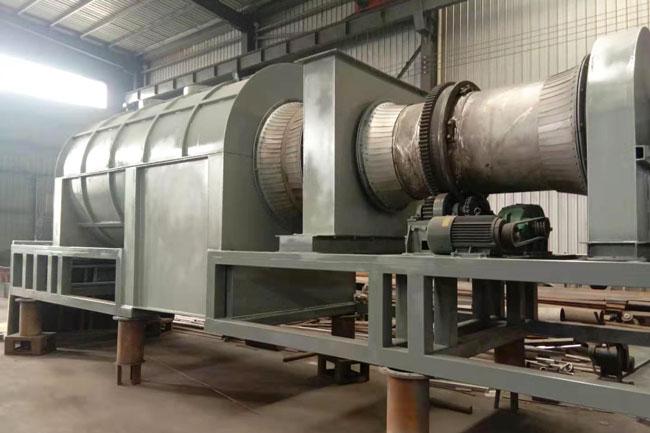

1cbm Effective Volume Biomass Carbonization Furnace for Continuous Carbonization Process
Price:
$120,000.00/sets 1-1 sets
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
Mingjie
Product Description
Product Overview
What is the carbonization?
Biomass carbonization refers to the thermal degradation process of biomass under the environment of high temperature without oxygen, in which volatiles are released and carbon is enriched. The carbonized product is biochar/charcoal, which can be used as soil conditioner or fuel.
PRODUCT SPECIFICATIONS
Model | MJT-500 | MJT-1000 | MJT-2000 | MJT-3000 | |||
Reactor Structure | Dual Cylinder | Dual Cylinder | Dual Cylinder | Dual Cylinder | |||
Input Capacity | 300-500KG/H | 800-1000KG/H | 1500-2000KG/H | 2500-3000KG/H | |||
Feedstock size | <20mm | <20mm | <20mm | <20mm | |||
Feedstock moisture | <15% | <15% | <15% | <15% | |||
Charcoal output ratio | 28-35% | 28-35% | 28-35% | 28-35% | |||
Working Method | Fully Continuous | Fully Continuous | Fully Continuous | Fully Continuous | |||
Fuel Consumption | 35-50m³ Natural Gas for initial Heating | 40-60m³ Natural Gas for initial Heating | 60-80m³ Natural Gas for initial Heating | 80-100m³ Natural Gas for initial Heating | |||
Land required | L35*W12*H6m | L35*W12*H7m | L45*W15*H7m | L45*W15*H7m | |||
Final product | Charcoal/Biochar, Tar&Wood Vinegar, Syngas | ||||||
FEATURES AT A GLANCE
Final Product & Application
Biochar/Charcoal
1. Used as soil conditioner, carbon sequestration, improve the quality of soil 2. Used as fuel for industry heating and cooling or BBQ 3. Can be reprocessed into activated carbon, widely used in the smelting, chemical fields.
Wood vinegar & tar
Widely used as a crop insecticide, make leaf surface fertilizer
Syngas
1. Can be recycled to heat the carbonization host. 2. By this way, you can reduce a lot of fuel costs.

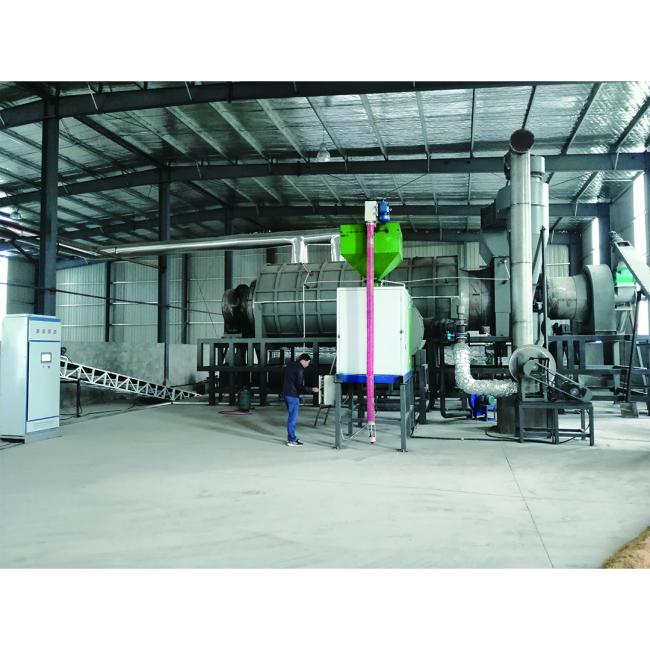

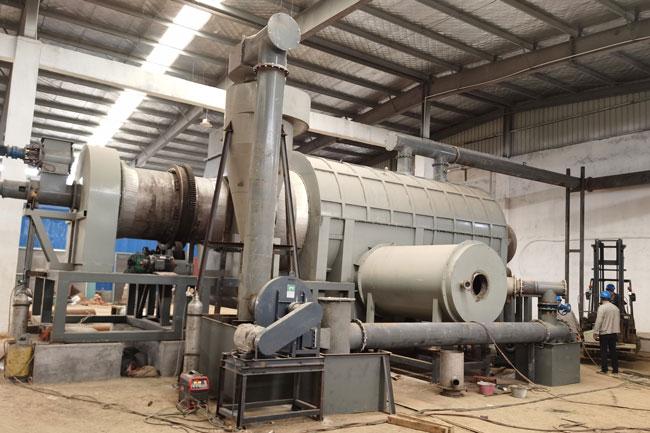

Successful Project

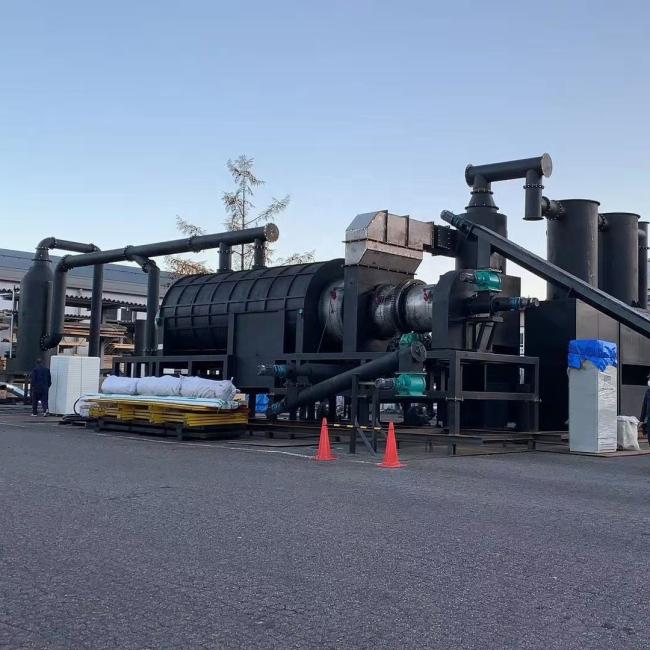

Project in Japanese
Project in Tanzania
Project in China
SIMILAR PRODUCTS
FAQ
Q1:What kinds of raw materials can be processed to this carbonization plant?
A1:The carbonization plant can process all kinds of biomass, like coconut shell, rice husk, plants stew, saw dust, fowl manure etc..
Q2: What is the feeding requirement of this carbonization plant? A2: The raw materials should be under 20mm and 15% water content.(We could match the dryer and shredder based on your raw materials.) Q3: Is this carbonization plant fully continuous type? and how long does it can run?
A3: Yes. It is the fully continuous carbonization plant, and it can run at least 14 days without any stop.
