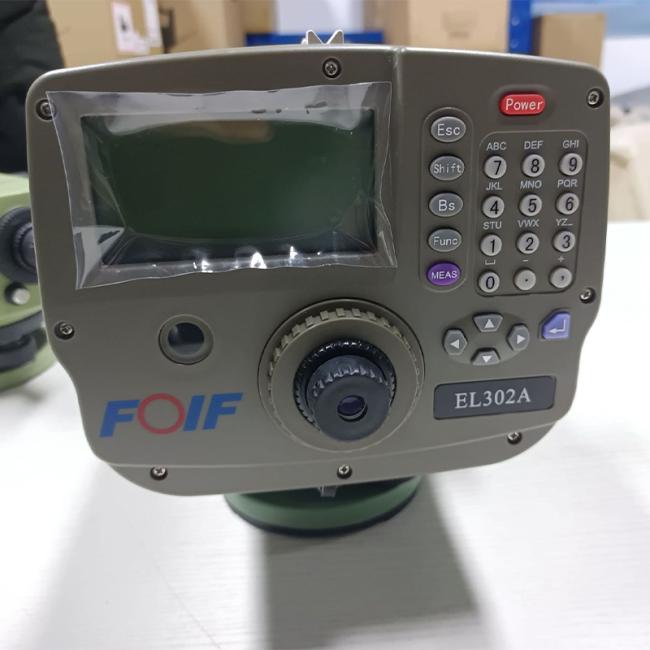

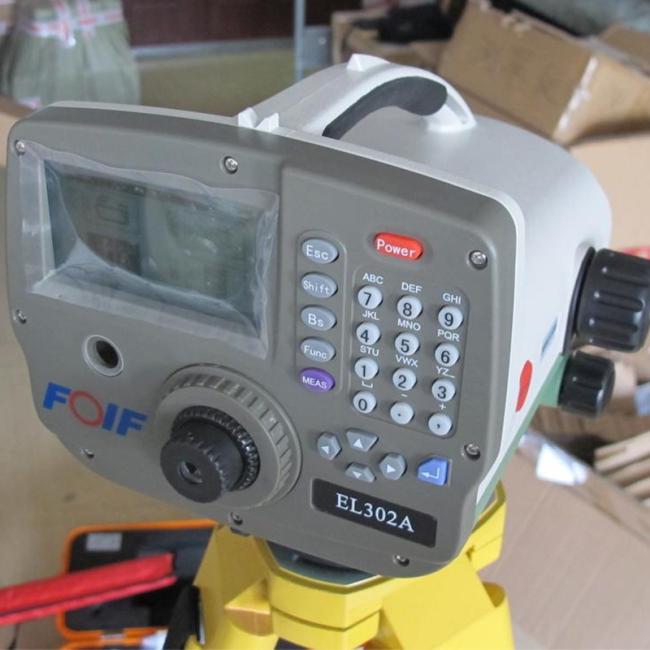

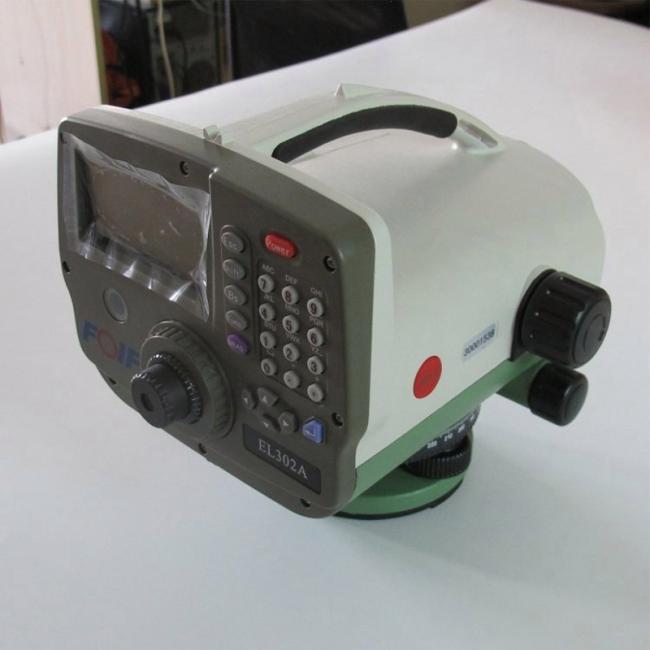

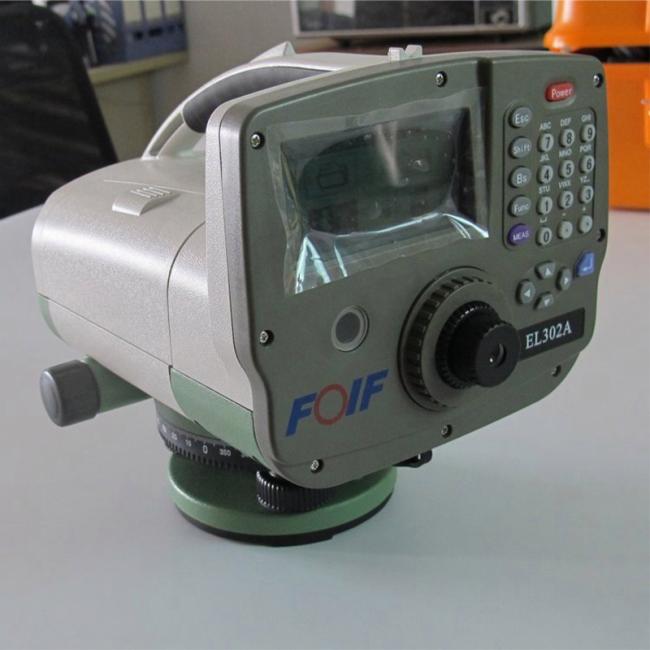

FOIF EL302A Laser Digital Auto Level Survey Instrument For Land Survey

Price Negotiable
Price: $1,250.00
MOQ: 1 set
Delivery Time: 30 work day
Brand: Stonex EL302A Level
Product Description

FOIF EL302A Digital Level With High Precision LCD Screen For Land Survey



Product Description
Features:
EL300 Series Digital Level:
  • Quicker and easier than an optical level; Easy one-touch operation, simply push the MEAS button
  • Quick height and distance result-the reading is displayed almost instantly with measurement

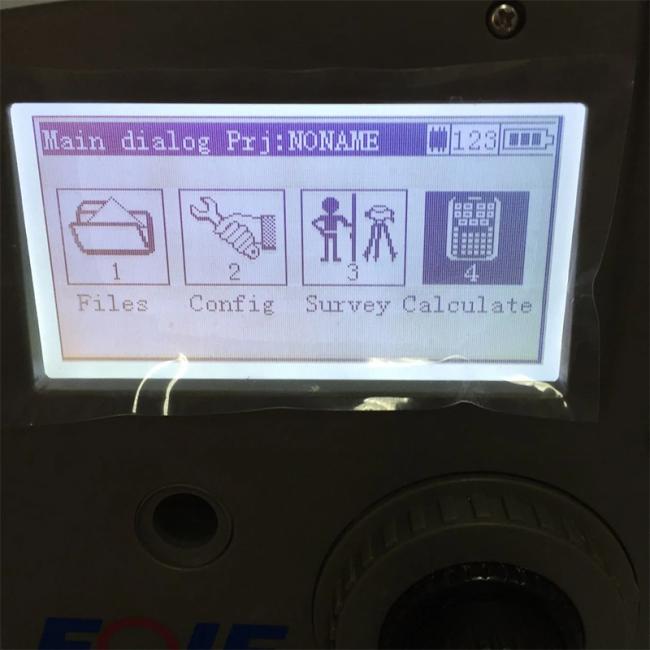

  • LCD display presents all important measured data at a glance and shows the next step to take
  • Reliable reading, even in dim light conditions
  • Standard deviation of 1km double run: ≤±0.6mm (electronic reading)
  • Far measuring range: ≥ 105m
  • On board program, such as BF, BFFB, BFBF, BBFF, FBBF, stake out, intermediate
Available models:
  • EL302A
  • EL312A
  • Available Bar Code Staff: Light compact measuring Tape (B3120),
    Telescopic Aluminum 5m (B2650) and Fixed Height Fiber Glass 2m or 3m (B2620 or B2630)



Specification



Accuracy
Electronic measurement
±0.7mm
optical measurement
±1.5mm
Distance measurement
D10m: ±0.2%*D
Electronic measurement
time for single measurement
≤2s
Range
2-105m
Measurement modes
Single, average, tracking
Display resolution(m/inch selectable)

Height
0.01mm/0.00001ft
Distance
1mm/0.001ft
Telescope
Clear objective aperture
45mm
Magnification
30x
Field of view at 100m
2.6m
Shortest focus distance
1.0m
Automatic compensator
Working range
14'
Setting accuracy
±0.5"

Power
Battery
2000mAh Ni-MH rechargeable
Continuous operation time
12hours

Measurement programs
On-board programs
BF, BFFB,BFBF,BBFF,FBBF, stake out, intermediate
Onboard adjustment
Yes

Others
Memory
3000points, supports SD card
Display
LCD, 7 lines*32characters
Keyboard
Alphanumerical key board
Interface
USB, RS-232C optional, Bluetooth
Sensitivity of circular level
8'/2mm
Water and dust protection
IP54
Operating Temp
-20℃~+50℃
Net Weight
3kg
