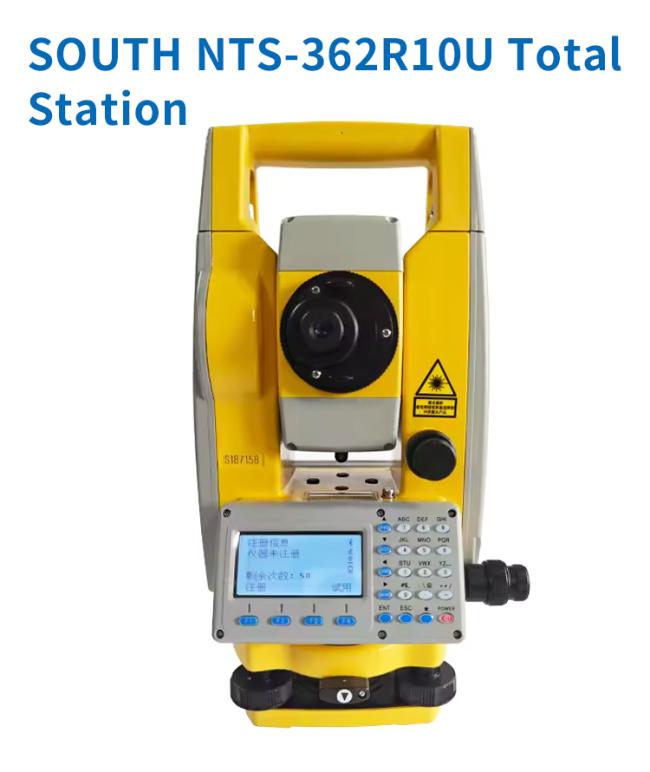

SOUTH N6+ Series NTS-362R10U Total Station 2" Accuracy 1000m Reflectorless
Products Description
|

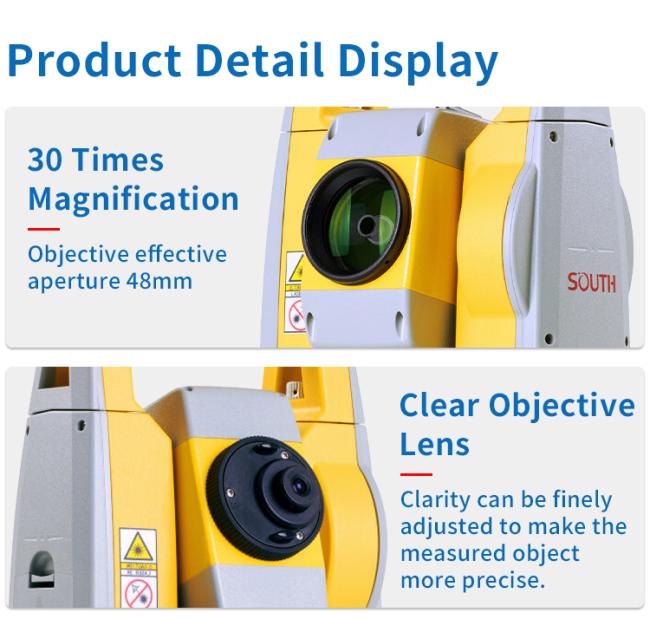

The telescope
|
||
|
Magnification
|
30X
|
|
|
Viewing Angle
|
1°30'
|
|
|
Stadia
|
≥1.2M
|
|
|
Ranging system
|
||
|
Ranging accuracy (prism)
|
2+2PPM
|
|
|
Ranging accuracy (no prism)
|
3+2PPM
|
|
|
|
Prism mode (good atmospheric conditions)
|
5000M
|
|
Reflector plate(Kodak White card with 90% reflectance)
|
1000M
|
|
|
Prism free mode
|
1000M
|
|
|
Measuring time
|
Precision of 0.3 seconds, 0.1 seconds tracking
|
|
|
The Angle measuring system
|
||
|
Angle measuring principle
|
Absolute coding
|
|
|
Reading
|
0.1 "/ 1" / 5 "/ 10"Optional
|
|
|
Angle measuring accuracy
|
2"
|
|
|
The screen
|
||
|
Screen type
|
High light display
|
|
|
The screen size
|
2.6 in
|
|
|
Digital display
|
The biggest: minimum 999999999.999:1 mm
|
|
|
The data transfer
|
||
|
USB port
|
√
|
|
|
Bluetooth
|
√
|
|
|
Onboard battery
|
||
|
The power supply
|
Rechargeable lithium battery 3100 mAh
|
|
|
Voltage
|
7.4 V dc
|
|
|
Continuous working time
|
Eight hours
|
|
|
The size and weight
|
||
|
Size
|
200MMx190MM×330MM
|
|
|
Weight (KG)
|
5.5KKG
|
|
Certifications
FAQ
1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder
4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
