Industrial UV Flatbed Printer for Large Size 60*90cm Operating System Window7/8/9
Price:
$7,200.00/sets 1-9 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Big-color
Product Description
Product Description
Product Application
Big Color small size uv printer flatbed can print on roraty and flat material by one printer. It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.
SPECIFICATIONS FOR ZT-6090 | ||||||
Product Name | uv6090 flatbed printer | |||||
Model | ZT6090 uv printer | |||||
Printer head | 3 pc TX800/4720/ 3200U1 head | |||||
Speed | 7.5m2/h(Production mode) / 5.5m2/h(Precision mode) / 4.5m2/h(High precision mode) | |||||
Maximum Resolution | 720*4320 dpi | |||||
Ink | 4 color +white +varnish | |||||
Printing Type | Glass ,Acylic board,Wood,Board,Metal,Leather and so on | |||||
Connect port | USB3.0 High speed transfer port | |||||
Machine Dimension | 1.5*1.6*1.38m | |||||
packing size | 1.85*1.69*1.05m=3.282 | |||||
Model No | Print head | Printing area | Printing height | Speed | Color |
6090-dx8 | 3 pcs Epson DX8 | 600*900mm | 250mm | 4.5m²/h | CMYK+W+V |
6090-dx9 | 3 pcs Epson xp600 | 600*900mm | 250mm | 4.5m²/h | CMYK+W+V |
6090-4720/3200 | 3 pcs Epson 4720 | 600*900mm | 250mm | 7.5m²/h | CMYK+W+V |
System:
Much more protessional and more stable than desktop modified printer. Control the color freely.

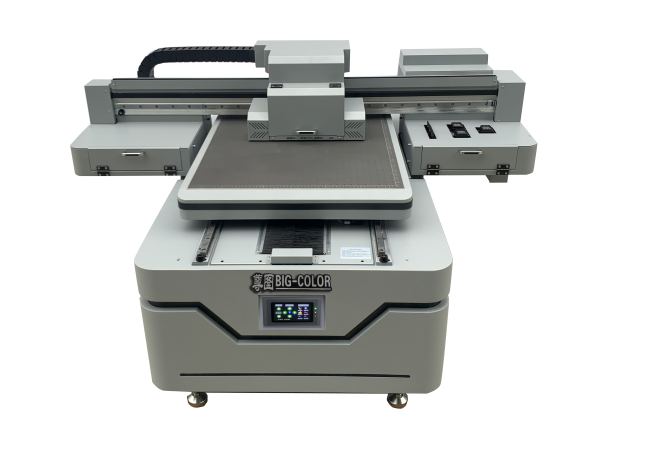

The front of printer.
The side of printer.
No based table type.
No based table type.
LCD Touch Control Panel:
LED touch screen, more convenient operation
CNC aluminum beam & PTFE vacuum platform.
CNC alumimum beam is good material for good printing.The main function is to ensure the stability of the printing process
PTFE vaccum platbed will guarantee strong suction for printing material,Especially for light materials, ensure that it will not move during the printing process
Rotary & Mug cup Print Unit.
Both flatbed printing and rotary printing(for bottle and mugs)
Stronger CNC Machine Frame：
16 position adjustable position for vaccum table.
Auto Height Sensor：
It can automatically measure the printing height, saving a lot of labor and time for you.
Reliable Board System.
Two small fan is installed on the board to cool down the board card and prolong the service life of the board card.
Multi-function button：
Poweder machine control Unit: Powder drop speed, Powder shake speed, heater temperature adjustable.
Ink Alarming system & Ink Stiring system:
Powder drop speed, Powder shake speed, heater temperature adjustable.
Stainless steel capping station
Stainless steel capping station, corrosion resistance, long service life
Stronger Screw Bar on Yaxis:
The printing movement of the machine depends on the screw.We use many stable screw to guaranteed quality.
3pcs Big Water cooling Lamp.
Dual Fan Body Cooling System:
Different head optional for different request
3200 head:
higher head cost, but faster printing speed
it is fit for printing factory choose
it is fit for printing factory choose
DX8 head:
Lower head cost, but speed slower than 3200 head
it is fit for home work usage
it is fit for home work usage
Main Features
1) Not only can print on flatbed material but also can printer cylinders.
2) Automatic stirring system for white ink and lacking ink alarming system.
3) PTFE cellular flatform,durable and stable.
4) Carriage height could reach to 250mm ,and it can work on 3 heads by varnish+white+color or even 4 heads.
5) Support for multiple printing on same picture by one time,fit for most special production request .
6) Our Big color have focus on printer research manufacture for more than 10 yeas, we also work on OEM printing machine. so we could also give you best suggestion and solution for your printing request if you need.
CE Certifications
Sample
Wine bottle
leather
sheath
Phone case
Related Products
UV DTF FILM
DTF PRINTER for 30cm
A2/A3 uv flatbed printer
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Product packaging
uv printer Packaging | ||
size | 1.85*1.69*1.05M=3.3CBM | |
weight | 0.3T | |
Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
