Product Description
Commerical Wholesale Wing Open Out Hurricane Impact Aluminum Casement Windows
Products Description
Aluminum alloy casement window is made of aluminum alloy building profiles,it has better airtightness,large opening area,ventilation,thermal insulation,safety, anti-theft, windproof than sliding window.
Product details
Profiles | series | 1. 6063-T5 high quality thermal break aluminium profiles 2. 6063-T5 high quality non-thermal break aluminium profiles Commonly used series:45/50mm: 50series max-glass-thickness:22mm | |
Thickness | 0.8/1.0/1.2/1.4/1.8mm | ||
color | Brown\ dark grey\light grey\ black\star black | ||
Glass | Types: | Low-e glass\frosted glazing\ grey/blue/green tinted glass,etc. 1. Double tempered glazing:5+12A+5,6+12A+6 2. Single tempered d glazing:6,8,10,12... Laminated glass:6.38,10.76,10.38... | |
Thickness: | 4-19mm. | ||
color | clear/super clear/ tinted blue/green/coffee brown/gray | ||
Hardware | Brand:Germany brand\Australia brand\China brand Aluminum alloy interior casement window: Handle +multi-point lock + transmission rod+ hinge + EPDM sealing strip+ wind bracing + internal invisible window flynet “7” form handle+ EPDM sealing strip+ wind bracing + internal invisible window flynet Aluminum alloy exterior casement window: handle +multi-point lock + transmission rod + hinge+ sealing strip+ limiter + external invisible window flynet “7” form handle+hinge+ sealing strip+ wind bracing + external invisible window flynet American aluminum alloy exterior casement window: hand window opener+ lock+hinge+ sealing strip+ external invisible window flynet | ||
Mesh | Stainless steel security mesh\Aluminum security mesh Fiberglass flyscreen\Retractable flyscreen | ||
Finish | Powder coating \ Anodized \ Electrophoresis \ Wood grain | ||
Advantages | 1. Large openable area for maximising ventilation 2. Wide sash profile creates an appealing ‘picture frame’ effect 3. Flush-faced external profile for shedding dust and rain 4. Internally fitted screens 5. Continuous seal system provides excellent weatherproofing and acoustic (noise reducing) properties | ||

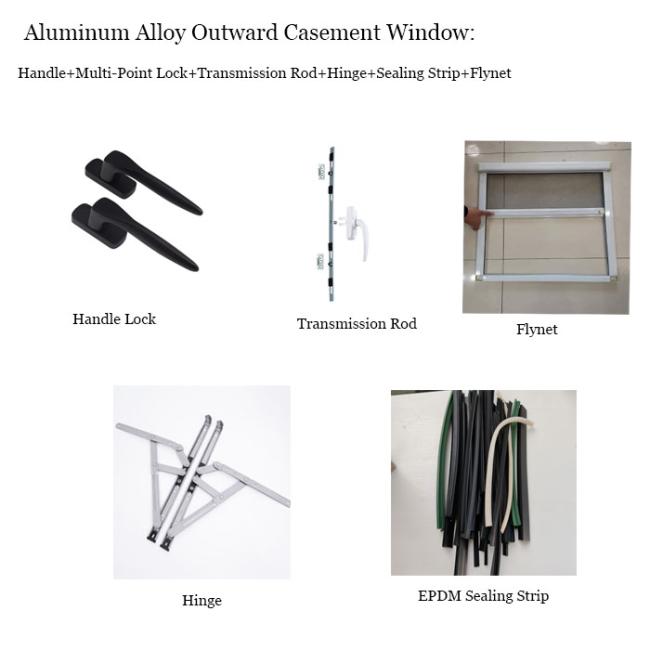

Hardware
Aluminum alloy interior casement window:
Handle lock +multi-point lock + transmission rod+ hinge + EPDM sealing strip+ wind bracing + external fixed flynet.
“7” form handle+ hinge+EPDM sealing strip+ wind bracing + external fixed flynet.
Aluminum alloy exterior casement window:
handle +multi-point lock + transmission rod + hinge+EPDM sealing strip+ limit stopper + interior invisible flynet.
“7” form handle+hinge+EPDM sealing strip+ wind bracing +interior flynet
American aluminum alloy exterior casement window:
Chain winder+ lock+hinge+EPDM sealing strip+ interior invisible flynet.
Handle lock +multi-point lock + transmission rod+ hinge + EPDM sealing strip+ wind bracing + external fixed flynet.
“7” form handle+ hinge+EPDM sealing strip+ wind bracing + external fixed flynet.
Aluminum alloy exterior casement window:
handle +multi-point lock + transmission rod + hinge+EPDM sealing strip+ limit stopper + interior invisible flynet.
“7” form handle+hinge+EPDM sealing strip+ wind bracing +interior flynet
American aluminum alloy exterior casement window:
Chain winder+ lock+hinge+EPDM sealing strip+ interior invisible flynet.
Profiles | 1.Non-thermal break aluminum profiles 2.Thermal break aluminum alloy profiles 3. Frame: 6063/6065 and different aluminum profiles produced by our own factory |
Non-thermal break aluminum casement window 1.Common series: 45/50mm 2. the biggest glass thickness of 50:22mm 3.The profile thickness:0.8/1.0/1.2/1.4/1.8mm | |
Thermal break aluminum casement window 1.Common series: 50/70/80mm 2. the biggest glass thickness:3-39mm 3. The profile thickness: 1.2/1.4/1.6/2.0mm | |
Color: Silver oxide, electrophoretic champagne,spraying white/dark grey/ light grey/coffice/brown/red/black, wood grain,others,customized | |
Surface Treatment | 1.Spraying 2.Anodizing 3.Electrophoresis 4.Wood grain transfer 5.Coating |
Profile details
Aluminum alloy casement window profiles are divided into non-thermal break and thermal break aluminum alloy profile.The main difference is the thermal break aluminum alloy profile has better thermal insulation performance. Thermal break aluminum window and door's K or U value can reach 1.0 to 1.5 W/M2k.The surface treatment has four
types: anodize oxidation, surface electrophoresis, powder coating and wood grain transfer, fluorocarbon spray works best.
types: anodize oxidation, surface electrophoresis, powder coating and wood grain transfer, fluorocarbon spray works best.
Glass types are Low-e glass,frosted glazing and tinted glass,etc. Especially,double tempered glazing is 5mm+12A+5mm,6mm+12A+6mm.Single tempered glazing is 6mm, 8mm,10mm, 12mm...Laminated glass is 6.38,10.76,10.38...Glass thickness is 4-19mm.Glass color has clear,super clear,tint blue/ green/coffee brown/gray...
Glass | Types | Laminated Glass/ Double Glazing/ Double Glazed/ Tempered Glazing/ Tempered Glazed/ Safety Glass/ Anti-Theft Glass/Fire-Proof Glass ，High Temperature Ink Printing Glass，Hurricane Proof Glass |
Thickness | 3mm/4mm/5mm/6mm/8mm/10mm/12mm/6.38mm/8.38mm /10.38mm/10.76mm/12.76mm/11.14mm/5mm+6air+5mm /5mm+9air+5mm/5mm+12air+5mm/6mm+6air+6mm /6mm+9air+6mm/6mm+12air+6mm | |
color | clear/super clear/ tinted blue/green/coffee brown/gray |
More Products
Factory
Shandong Super International Trade Co., Ltd has years of experience in manufacturing, quality control and trade.The main products are aluminum alloy doors & windows and PVC doors &Windows.After exporting many windows and doors to international customers Like Europe and America, Australia, South America, Southeast Asia and some parts of Africa. With advanced production equipment, our product meet the highest quality requirements as stipulated in EU CE certification, US certification, Australia AS2208 and AS2407 certification and our stringent quality control system.
Aluminum alloy casement window: blanking -assembly angle/screw connection - glue - EPDM sealing strip - weather strip -installing glass - installing pulley - installing hardware (crescent lock/touch lock/hook lock/handle lock,etc.)
product line
Aluminum casement window: cutting profiles - steel lining - welding profiles - Angle cleaning - hardware installation - sealing rubber strip installation - glass installation - sealant and rubber strip - finished assembly the process of making a casement window: First, cut the profile. According to the design requirements and size specifications, the profiles are precisely cut. Then, weld the profile. Through high-temperature welding technology, each cut profile is connected together to form a complete window frame structure.
Then came the hardware. As required, install various hardware accessories (such as hinges, locks, etc.) on the window frame to achieve opening, closing and locking functions. This is followed by the installation of sealing strips. Attach a sealing strip to the inner edge of the window frame to prevent water vapor penetration and enhance sound insulation. Then the glass is installed. Place the pre-prepared glass plate in the window frame, and use professional tools to fix the position relationship between the glass and the window frame. After completing the above steps, it is necessary to apply sealant and rubber strips to further strengthen and waterproof treatment. This can effectively prevent rain or air from seeping into the room through the gap. Finally, the finished product can be assembled to obtain the final product
1.Raw material quality testing: the color, thickness and strength of profiles will be checked after the profiles arrive at the factory. After the glass to the factory, the color and thickness of the glass will be checked again, and the sealing performance of hollow glass will be checked. Hardware color will be checked and tests how well the hardware works.
2.In the production process, there will be special quality inspectors to check each process of production.
3. After the product is finished, the group corner, sealing, size, use effect and so on will be tested
3. After the product is finished, the group corner, sealing, size, use effect and so on will be tested
Custom &Feedback
During these years of development, we have received praise from many customers. We are grateful for the support these customers have given us. Customer recognition and support for our products is the driving force for our continuous progress.
Team:
Our team has strong execution and innovation ability, we are able to quickly respond to customer needs and feedback, and constantly improve and optimize our products and services. We are constantly exploring new business models and business opportunities to provide more choice and value to our customers.
Certifications
Certification
The product has passed the CE, AS2047, AAMA and CSA certification.
The glass has passed the CE, AS2208 and US IGCC certification.
The glass has passed the CE, AS2208 and US IGCC certification.
