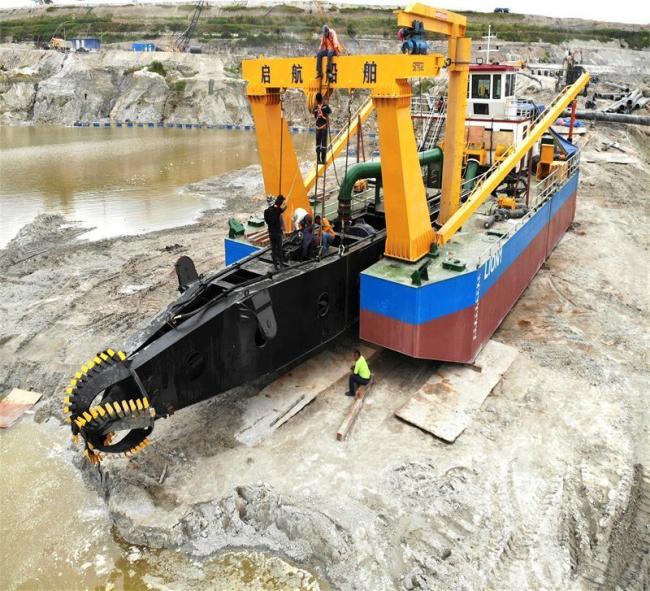

Diesel Engine Power 20 Inch Cutter Suction River Sand Dredger
1. Dredger Introduct :
Our premier factory-branded cutter suction dredger stands as a pinnacle choice for a multitude of waterborne applications including river, lake, port, and inland waterways projects. This versatile dredger adeptly processes sand, mud, and gravel across various dredging endeavors. Engineered with top-tier components, our cutter suction dredger ensures optimal performance, enabling customers to maximize profitability while minimizing operational costs.
Moreover, our cutter suction dredger excels in port construction and navigation channel maintenance, offering unparalleled flexibility and efficiency in operation. It efficiently removes sand, mud, clay, silt, and other sediment from water beds, facilitating smooth passage for vessels.
Featuring a robust configuration including Cumins diesel engines (alternatively offering Carter, Weichai, and other leading diesel engine brands), Shijiazhuang slurry pumps, and premium hydraulic pumps sourced from renowned manufacturers in America or Germany, our dredger guarantees reliability, low fuel consumption, superior capacity, and exceptional efficiency.
2. 20 inch cutter suction dredger basic parameter:
| Item | Parameter |
| Capacity (cubic meter ) | 1100m3 |
| Water flow (cubic meter ) | 5500m3 |
| Maximum dredging Depth( meter) | 20m |
| Discharge distance (meter) | 2000m |
| Engine power and brand (kw) | 2190kw |
| Main Engine fuel consumption (Liter) | 251L |
| Cutter head diameter(mm) | 2050mm |
| Cutter head power(kw) | 300kw |
| PLC system | Siemens |
| Hydraulic control system | Rexorth |
| Slurry pump brand and type | Shijiazhuang WN500 |
| Discharge pipe diameter (mm) | 500mm |
| Total length (meter) | 38m |
| Total width (meter) | 8.5m |
| Total depth (meter) | 2.5m |
| Total weight | 245T |
4.Parameter for Basic Model :
| Model | Sand and Solid Capacity | Max. Dredging Depth | Discharge Distance |
| HRXS-200 | 160m3/h | 8m | 800m |
| HRXS-250 | 200 m3/h | 9m | 1000m |
| HRXS- 300 | 300 m3/h | 10m | 1200m |
| HRXS-350 | 400 m3/h | 11m | 1500m |
| HRXS- 400 | 500 m3/h | 13m | 1500m |
| HRXS- 450 | 600 m3/h | 14m | 1500m |
| HRXS-500 | 800 m3/h | 15m | 2000m |
| HRXS-550 | 900 m3/h | 16m | 2000m |
| HRXS- 600 | 1100 m3/h | 16m | 2000m |
| HRXS- 650 | 1200 m3/h | 16m | 2100m |
| HRXS-700 | 1400 m3/h | 17m | 2200m |
| HRXS-800 | 1500 m3/h | 17m | 2500m |
Remark: Our factory in cutter suction dredger can offer the water flow from 800 cubic meter to 30000 cubic meter .also according to customers requirement to customized all standard and non standard dredging cutter suction dredger with the other power cutter suction dredger
5.Mainly Parts Introduce and Image:
6.Our unique technology and special size :
| Our factory can made all electric power cutter suction dredger and all kinds of dredging machinery |
| Our factory break the traditional manufacture technology . remove the main room to the bridge frame to improve the concentration to add the capacity . we have the most advanced seal technology |
| Our factory adopts the particular design technology can do the large water flow cutter suction dredger and all kinds of dredging machinery . we can do the biggest water flow 30000 cubic meter |
| All parts from famous brand combine the our factory advanced technology can get the best performance |
7.Successful Case:
8. Product Features :
| 1 | Easily operation . one worker can handle all . |
| 2 | Original Siemens PLC control system . all documents are appeared on the system |
| 3 | Reliable Rexroth hydraulic system . all brand hydraulic system from import we can offer. |
| 4 | All kinds of filter for hydraulic oil and water to get the fresh water and oil for cooling and hydraulic system |
| 5 | Each mainly device are tested individually and then fully test the whole in the testing pool |
| 6 | Short delivery time . Normally hot dredger we have in stock . others normally is 2-4 month |
| 7 | All spare parts our factory always have in stock . |
| 8 | Long after sales service and foreign service can available. |
| 9 | Economical price and high output to ensure the customers cover the cost for the shortest time and get the largest value . |
| 10 | Standard design:The pontoons and main spare parts are connected by the bolts and nuts, which means the dredger can be dismantled in the factory and mounted in the construction sites. Of course, the delivery time will be reduced a lot by containers. |
| 11 | World -class spare parts: We use the best parts like Cumins diesel engine and Siemens PLC controlling system, Shijiazhuang pump.......Also. we build a efficient system to optimize the flow the production so as to guarantee the quality and function of the dredgers. |
| 12 | Dredger application The dredgers can be adapted to different circumstance like river and lake. The material like sand, stones. mud.salt can be easily sucked and discharged to the destination place. |
1. Simple, rapid assembly and dismantling
2. Spare parts and floating pipe available
3. Transportable by road, rail or sea
4. Reliable hydraulic system
5. Fresh water engine cooling system
6. Low fuel consumption
7. Easy to operate
8. Good after-sales service
