Small Medical Waste Microwave Equipment Treatment
| Incinerator are designed to burn many types of medical waste. livestock corpse . life waste and industrial barbage including type IV pathological waste and infectious and contaminated "Red bag" . nozzle, plastic items .plastic caps, cellulose acetate membrane electrophoresis. liquid, toilet boxes. bacteria culture. drug sensitivity reaction plate. syphilis test board. other experimental specimens. operation resection stump. organ and so on |
Medical waste microwave disinfection equipment is a kind of medical waste disinfection equipment using the dual function of microwave and steam, the equipment first make water prehumidification to medical waste , use microwave thermal effect to heat prehumidified water to generate steam and medical waste containing polar molecules at the same time, and then by the sensitivity of bacteria to temperature sterilization, microwave also has non-thermal effect.Non-thermal effect refers to other microbe killing effects except thermal effect, which is the unique effect of microwave sterilization. The heating process of the equipment is also the process of disinfection. The disinfection room is kept for 45 minutes after reaching 95 degrees or above to complete disinfection. |

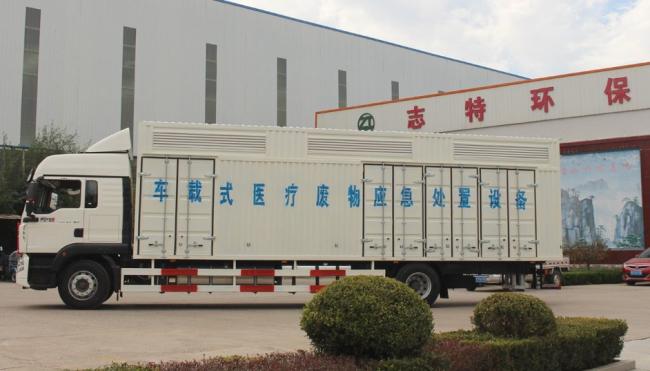

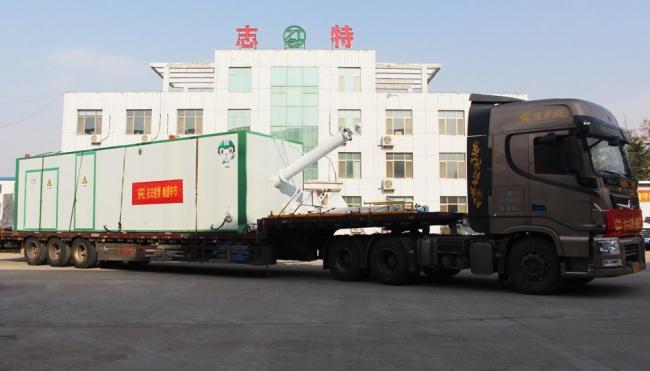

Mobile Medical Waste Microwave Treatment Equipment system is composed of feeding system, crushing system, microwave disinfection system, discharge system, steam supply system, waste gas collection system, electrical distribution system, etc.
- With overall design and production,good mobility, small footprint, low noise.
- High temperature microwave treatment sterilization penetration fast,good sterilization effect .
- Integrated design, compact equipment, high degree of automation, can be used as regional emergency standby facilities
- Applicable to hospitals, medical testing centers, airport testing stations, customs ports,It can realize the timely treatment of medical waste in isolated areas during major periods.
- Strong mobility, can quickly reach the epidemic area,hospital and shelter quarantine site, direct on-site disposal, reduce transport risks.
- No waste water generation, with purification device, clean discharge, no pollution.
| No. | System unit | Item | Technical parameters | |||
| Model | ZT-MWT-10 | ZT-MWT-20 | ZT-MWT-30 | ZT-MWT-50 | ||
| 1 | Stock bin | Volume | 100L | 200L | 300L | 500L |
| Material | Stainless steel + alloy steel | Stainless steel + alloy steel | Stainless steel + alloy steel | Stainless steel + alloy steel | ||
| 2 | Crushing system | Power | 5.5kw | 5.5kw | 7.5kw | 11kw |
| 3 | Sterilization chamber | Power | 1.5kw | 3.3kw | 4.5kw | 4.5kw |
| 4 | Main body dimension | 2000*1500*1800 | 2100*1500*1800 | 2200*1680*1840 | 2300*1800*1840 | |
| 5 | Supporting facility | Steam generator, water chiller, water softener, electric control box, exhaust equipment (optional) | ||||
| 6 | Total power | 12kw | 14.8kw | 18kw | 21.5kw | |
| 7 | Capacity(kg/h) | 10 | 20 | 30 | 50 | |
1.Microwave disinfection technology uses microwave disinfection time short,fast speed,strong penetration,uniform temperature inside and outside,energy saving,good disinfection effect, 2.In the microwave field,the cell structure is destroyed,and the balance of internal and external substances is destroyed,resulting in cell death. 3.The combination of microwave and water vapor makes the disinfection effect more effective. 4.Microwave disinfection technology does not produce dioxins and odorous gases,no wastewater discharge. |
ZHITE Environmental Protection Technology Co., Ltd.is a comprehensive domestic enterprise with integrating scientific research and development,engineering design,production and installation and commissioning services.The main products are medical waste treatment equipment,diseased livestock and poultry harmless treatment equipment,household waste treatment equipment,kitchen waste treatment equipment,tail vegetable treatment equipment,sludge treatment equipment and all kinds of shredding equipment and other solid waste treatment products. Also can design and customize all kinds of efficient and practical equipment and production lines according to customer needs.
Quality in mind, quantity in hand!High aspiration,long-term quality!We remain true to our original aspiration and forge ahead!Better Quality!--Our pursuit forever!
