Medical Laboratory Waste Microwave Sterilization Unit Equipment

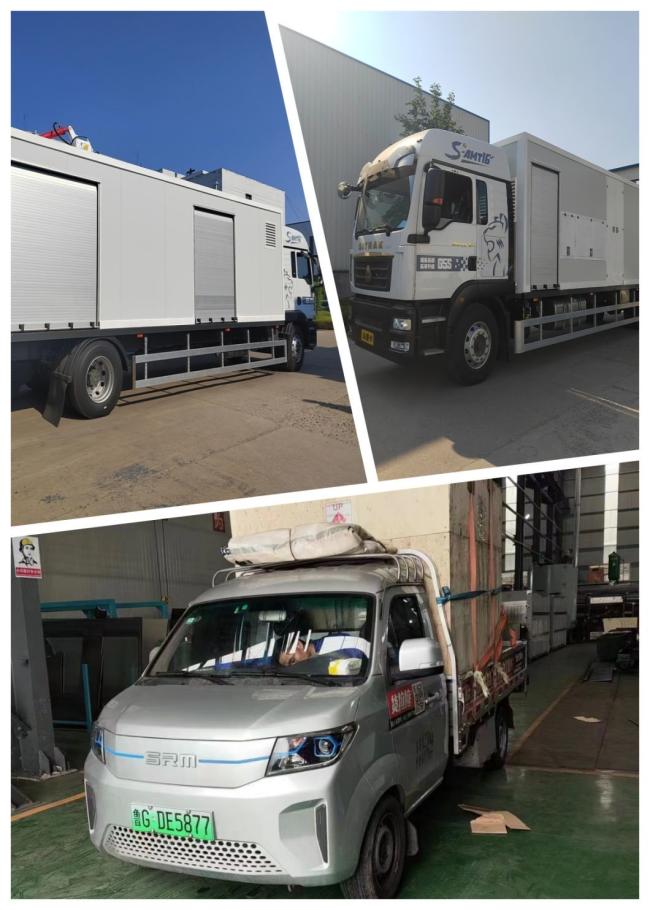

Mobile Medical Waste Microwave Treatment Equipment system is composed of feeding system, crushing system, microwave disinfection system, discharge system, steam supply system, waste gas collection system, electrical distribution system, etc.
- With overall design and production,good mobility, small footprint, low noise.
- High temperature microwave treatment sterilization penetration fast,good sterilization effect .
- Integrated design, compact equipment, high degree of automation, can be used as regional emergency standby facilities
- Applicable to hospitals, medical testing centers, airport testing stations, customs ports,It can realize the timely treatment of medical waste in isolated areas during major periods.
- Strong mobility, can quickly reach the epidemic area,hospital and shelter quarantine site, direct on-site disposal, reduce transport risks.
- No waste water generation, with purification device, clean discharge, no pollution.
This equipment can handle medical waste such as medical infection, injury and pathology, and carry out harmless disposal of medical waste. Equipment integrated design, a full set of equipment low energy consumption, automatic operation, simple operation, anytime and anywhere treatment of medical waste, fixed, mobile can be customized according to demand, convenient and flexible.Microwave disinfection treatment system is an integrated equipment, the equipment at least by automatic feeding unit, airtight bin unit, multi-function airtight crushing unit, negative pressure pumping unit, microwave disinfection sterilization bin unit, microwave generator unit, steam heating system, discharging unit, automatic control unit, waste gas treatment unit 10 units and alarm system. |
| No. | System unit | Item | Technical parameters | Remarks | ||
| Model | ZT-MMWT-20 | ZT-MMWT-30 | ||||
| 1 | Hoisting System | Garbage can | 100L | 150L | ||
| Power source | hydraulic system | hydraulic system | ||||
| Material | Stainless steel | Stainless steel | ||||
| 2 | Stock bin | Volume | 100L | 150L | ||
| Material | Stainless steel | Stainless steel | ||||
| Eccentric swage | Equipped | Equipped | ||||
| 3 | Crushing system | Power | 5.5kw | 7.5kw | ||
| Blade | 20MM D550 | 20MM D550 | ||||
| 4 | Sterilization chamber | Power | 2.2kw | 3kw | ||
| Chamber size | 530-5000 | 530-6000 | ||||
| Microwave generator | 1.5kw*2 | 1.5kw*2 | ||||
| 5 | Discharge screw | Power | 0 | 0 | ||
| 6 | Main body dimension (excluding hoist and discharge screw) | 2000*1500*1800 | 2000*1500*1800 | |||
| 7 | Supporting facility | Steam generator, water chiller, water softener, electric control box, exhaust equipment (optional), etc | ||||
| 8 | Total power | 12kw | 14.8kw | |||
| 9 | Total weight | 800kg | 900kg | |||
| 10 | Capacity(KGS/h) | 20 | 30 | |||
| 01.It is applicable to hospitals, medical testing centers, airport testing stations and customs ports. It can realize timely treatment of medical waste in isolated areas during major periods. 02.Microwave with strong penetration, thorough sterilization, blocking the spread of bacteria, to prevent the spread of the epidemic. 03.To solve the Emergency handling problem during equipment maintenance of medical waste disposal center. 04.High degree of automation, a full set of equipment can be operated by only one person, to avoid cross infection. 05.Equipment with integrated design, small footprint and low noise. 06.It can be used as a regional emergency standby facility. 07.Strong mobility, can quickly reach the epidemic area/hospital/shelter quarantine site, direct disposal on-site, reduce transport risks. 08.High degree of integration,can start operation immediately after park, low energy consumption, safe and stable. 09.No waste water, with purification device, clean discharge, no pollution. |
| 1.Energy Saving:Microwave heating is uniform,no energy loss,high energy,strong penetration of the object,instantaneous penetration into the object,good energy saving effect,take the daily processing capacity of 5T/D model as an example,installed power is 117kw. |


| ZHITE Environmental Protection Technology Co., Ltd.is a comprehensive domestic enterprise with integrating scientific research and development,engineering design,production and installation and commissioning services.The main products are medical waste treatment equipment,diseased livestock and poultry harmless treatment equipment,household waste treatment equipment,kitchen waste treatment equipment,tail vegetable treatment equipment,sludge treatment equipment and all kinds of shredding equipment and other solid waste treatment products. Also can design and customize all kinds of efficient and practical equipment and production lines according to customer needs. Quality in mind, quantity in hand!High aspiration,long-term quality!We remain true to our original aspiration and forge ahead!Better Quality!--Our pursuit forever! |
