6 Inch Cutter Suction Dredger for River Sand and Gold
1. Dredger overview The dredger we produce is self-propelled or non self-propelled, portable cutter suction dredger. The hull uses
dismantle and box-like structure, which equipped with horizontal shifting devices, cutter ladder lifting devices,
spud devices, deck crane and so on. It can also be equipped with anchoring poles and trolley devices.
Generally,it has functions on dredging, conveying and discharging of mud and sand. It can produce certain
amount of vacuum by the centrifugal pump.
The dredge pump is driven by the main diesel engine through the reducing gear box.
The Alternator, which driven by the auxiliary diesel engine supplies electricity for power and lighting of the whole
dredger.
Generator sets supplies electricity for lighting and emergency use when it doesn't working.
Cutter head is driven by hydraulic motor; cutter bearing has lubrication seal-in units.
The dredger is moved by alternate swing of the spuds. The spuds are lifted by the hydraulic cylinder.
2. Product parameter
| 250 | 350 | 450 | 550 | 650 | |
| Max. Dredging Depth | 8m | 11m | 13m | 15m | 16m |
| Discharge Distance | 800m | 1200m | 1300m | 2000m | 2000m |
| Water Flow | 800m3/h | 2000m3/h | 3000m3/h | 4200m3/h | 6000m3/h |
| Solid Sand Capacity | 150m3/h | 400m3/h | 600m3/h | 850m3/h | 1500m3/h |
| Cutter Power | 60KW | 100KW | 130KW | 200KW | 450KW |
| LOA | 17.0m | 28.0m | 33.0m | 38.0m | 43.0m |
| Width | 6.0m | 7.0m | 8.5m | 8.5m | 9.5m |
| Depth | 1.5m | 2.0m | 2.5m | 2.5m | 2.8m |
| Draught | 1.0m | 1.4m | 1.5m | 1.7m | 1.7m |
| Discharge Pipe ID | 250mm | 350mm | 450mm | 500mm | 650mm |
| Cutter Head Dia | 1200mm | 1500mm | 1500mm | 1800mm | 2200mm |
| Total Weight | 50T | 90T | 145T | 190T | 260T |
| Total Power | 361KW | 925KW | 1186KW | 1594KW | 2496KW |

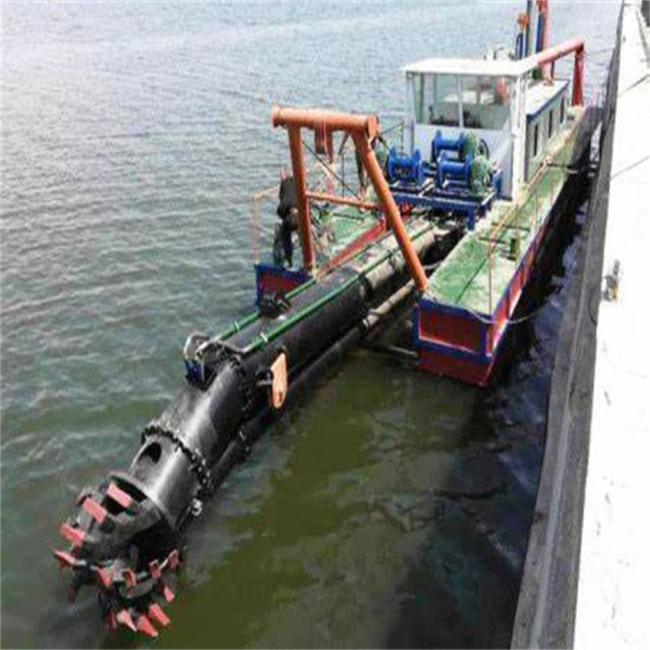

3. product picture
4.Product Features:
1. Modular design:
The pontoons and main spare parts are connected by the bolts and nuts, which means the dredger can be dismantled in the factory and mounted in the construction sites. Of course, the delivery time will be reduced a lot by containers.
2. World -class spare parts:
We use the best parts like Cumins disel engine and Simmens PLC controlling system, Shijiazhuang pump.......Also, we build a efficient system to optimize the flow the production so as to guarantee the quality and function of the dredgers.
3. Flexible in use:
The dredgers can be adapted to different circumstance like river and lake. The material like sand, stones, mud, salt can be easily sucked and discharged to the destination place.
