I. Core Structural and Performance Characteristics

1. Compact Structure and Small Machining Range

   Small Footprint: The machine tool has a compact structure and occupies minimal floor space, making it ideal for laboratories, research institutions, or small parts workshops.
2. Small Swing Diameter: The maximum swing diameter over the bed is typically around 100mm, with a maximum machining diameter of about 60mm, designed specifically for small components.

3. High-Precision Spindle System

   High-Speed Spindle: Often uses high-frequency motors or servo spindle motors, achieving very high rotational speeds (up to 3000 RPM or more), ensuring ideal cutting speeds for small-diameter parts.
4. High-Precision Spindle Bearings: Frequently employs precision angular contact ball bearings or hydrostatic bearings to ensure spindle running accuracy, resulting in superior workpiece roundness and low surface roughness.

5. High-Speed, High-Precision Drive System

   Linear Guideways: Commonly uses high-rigidity linear guideways, which have low friction coefficients, high movement sensitivity, and provide extremely high positioning and repeatability.
6. High-Speed Feed: Utilizes precision ball screws and servo drives to achieve fast and smooth feed motion, suitable for precise contour machining.

7. Tool Post Designed for Efficiency

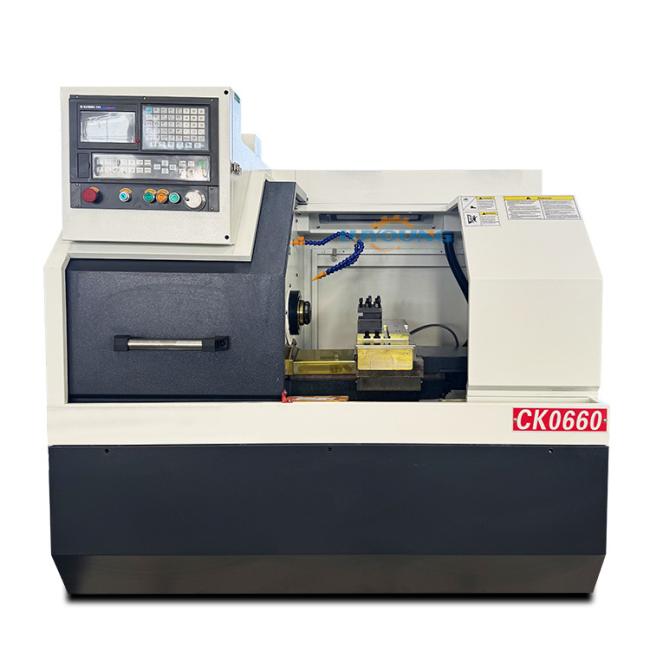

   Powered Tool Post (Optional): Many CK06 series machines can be equipped with powered tool posts, enabling turning-milling compound machining. This allows for multiple operations (turning, milling, drilling) in a single setup, greatly improving efficiency for complex small parts.

II. Design and Application Characteristics

1. Excellent Machining Accuracy and Surface Finish

   Due to its compact size, good rigidity, low vibration, and high-precision spindle and drive systems, this type of machine can easily achieve micron-level machining accuracy and superior surface finishes.

2. High Production Efficiency and Automation

   Automation Integration: Can be easily integrated with auto feeders (e.g., bar feeders) for 24/7 unmanned automated production, making it ideal for batch production of small parts.
3. Fast Tool Change: The tool post (especially servo-powered turrets) has very short tool change times, further reducing non-cutting time.

4. Simple Operation and Low Power Consumption

   Typically equipped with user-friendly CNC systems (e.g., GSK, Syntec), making them easy to operate.
5. The spindle motor power is relatively low (usually a few kilowatts), resulting in low energy consumption.
