1-87811665-0 Engine Cylinder Liner Set for ISUZU 6HH1 1878116650
6HH1 12 Valves Liner Set OEM Quality High Standard
| Part name | Liner Set |
| Liner quantity | 4 liners |
| Liner Height | 180mm |
| Liner ID. | 115mm |
| Piston TL | 106.4 |
| Pison Pin Size | 36 X 79 mm |
| Piston number | 5970 ; 6060 |
| Ignition Mode |
Diesel pressure combustion |
| Packing | ORIGIN PARDS packing |
| System | Cylinder Block |
| Feature |
TP process liner OEM factory piston Bushing full copper Component well integrity |
| Piston | 8-94391606-0 8-94391599-0 |
| Part No. |
1-87811436-0 ; 1-87811436-1 1-87811665-0 ; 1-87811665-1 1-87811665-2 ; 1-87811665-3 |
| Replacing Part No. |
1878114360 ; 1878114361 1878116650 ; 1878116651 1878116652 ; 1878116653 |
1. Origin Pards liner set are complete assembly after careful calculation, can produces maximum kinetic energy and power, with higher combustion efficiency than ordinary products.
2. Inner side of liner there are oblique grid and bright surface, the function of oblique grid help keeping engine oil and let piston moving smoothly, reduce friction from piston and liner. This should process on advanced machine tools.
3. Piston and piston pin are manufacture in OEM factory, quality assurance and performance stabilty.
4. Conrod bushing have full copper content, help long life use and good performance.
5. Piston ring process according origin size, have good air seal and fixing force, fits piston very much.

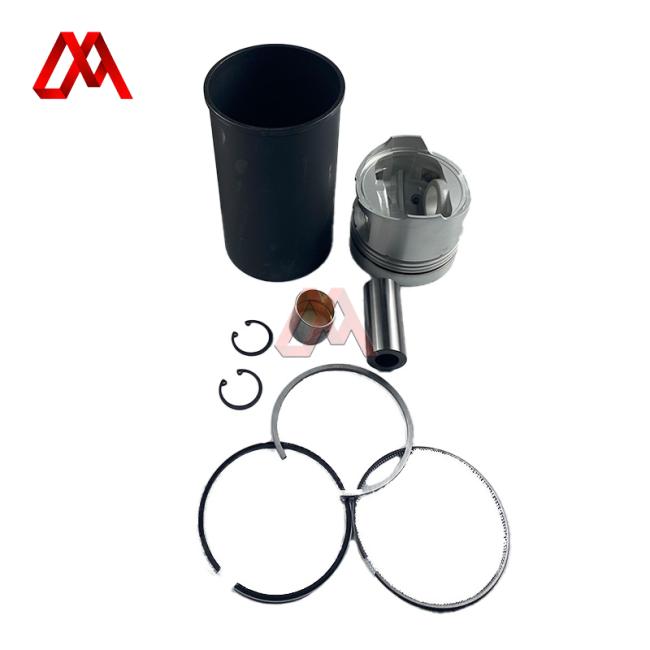

6. Inside liner set , there are 6 parts: piston, piston pin, snap, piston ring, cylinder liner, conrod bushing.
