1000MHZ 100WAnti Drone System Autel RF Power Amplifier 1G 100W GaN Amplifier Drone Counter Module
Price:
$230
MOQ:
1 piece
Delivery Time:
1-3 workdays
Brand:
LDSK
Product Description
Product Description

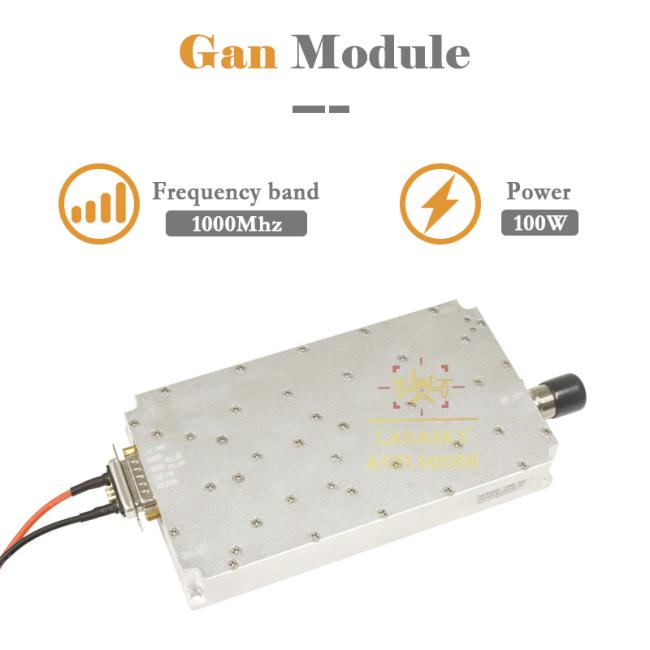

1000Mhz 100W GaN Amplifier Module
Appearance and installation instructions:
1. Overall dimensions: 170*94*26.5mm
2. Interface form:
① Power supply conditions: +30V power supply: 7W2 (male)1. Overall dimensions: 170*94*26.5mm
2. Interface form:
②RF input interface: SMA-KFD (optional)
③RF output interface: N-KFD
④Control interface:
a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on,low level or floating, the power amplifier turns off)
b.Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
3.Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.
|
Frequency
|
1000Mhz
|
|
Output Power(dBm)
|
100W(50dBm)
|
|
In-band group delay
|
≤1us
|
|
Gain
|
45±1.0,45±1.0 (external input 6dbm, power amplifier output 50dbm)
|
|
In-band fluctuation (dB)
|
≤2.5 (peak-to-peak value)
|
|
Input voltage standing wave ratio
|
≤1.35
|
|
Output voltage standing wave ratio
|
≤1.3
|
|
Supply voltage Typical
|
+30Vdc Range: 24-36V
|
|
Supply current
|
+30Vdc@100W≤5.5A
|
|
Output RF connector
|
N-50KFD
|
|
Size
|
170×94×26.5mm (excluding connectors)
|
|
Input signal source
|
Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources
|
|
1 7W2 male socket
2 Feedthrough capacitors (from top to bottom) |
1: A1 is the 30V power input, and A2 is GND;
2: The first pin of 7W2 is the PA_SW power amplifier enable; 3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off; 4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source; |
Lead time
| Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
| Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
Customization
| Item | Logo | Frequency | Power | Packing |
| MOQ(PCS) | 1 | 1 | 1 | 1 |
