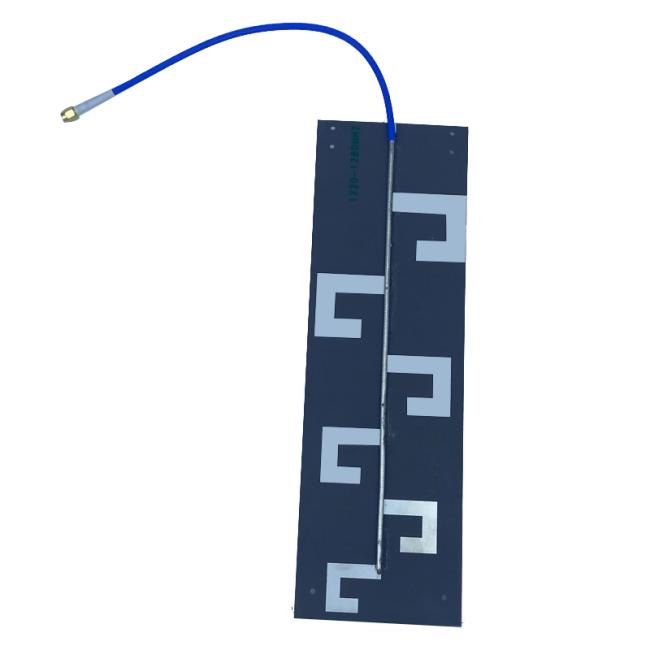

Lightweight 0.18KG Directional PCB Antenna 900mhz 1.5G 2.4G 5.8G for Anti Drone
Price:
$18.00/sets 2-49 sets
MOQ:
2 piece
Delivery Time:
5-8 workdays
Brand:
LDSK
Product Description
Product Description
Specification
Frequency | 5700-5900Mhz |
Gain | 15.5 dBi |
VSWR | ≤2.0 |
Maximum input power | 50w |
Inpur connector type | Lead out RG141 cable 120mm long with SMA-J |
Size | 350*150*1mm |
Pack size | 380*280*2mm |
Weight | 0.18KG |
Color | Customized |
Material | PTFE double-sided copper clad laminate |
Antenna | Frequency Range | 433mhz,900mhz,1.2G,1.5G,2.4G,5.2G,5.8G |
Gain | 2-18 dBi | |
VSWR | ≤2.0 | |
Inpendance | 50 Ω | |
Antenna size | Customize | |
Polarization | Vertical | |
Mechanical | Inner Material | PCB |
Connector type | IPEX or Customizable | |
Mounting Method | IPEX Connector | |
Environmental | Operating Temperature | -20ºC~+60ºC |
Storage Temperature | -20ºC~+65ºC | |
Environmentally Friendly | ROHS Compliant |
