Anti Drone Wideband Horn Antenna 4-8Ghz 4000-8000MHZ 20dBi High Gain VSWR 1.5 1 Typ
Price:
$1800
MOQ:
1 piece
Delivery Time:
5-8 workdays
Brand:
LDSK
Product Description
Horn antenna 4G-8G/4000-8000MHZ 20dBi high gain antenna 4-8Ghz antenna anti drone antenna
Product Description
| Horn antenna-BDHA48-20 | ||
| Item | Specification | Units |
| Frequency Range | 4-8 | GHz |
| Gain | 20 Typ. | dBi |
| VSWR | 1.5:1 Typ. | |
| Polarization | Linear | |
| Connector | SMA-F | |
| Material | Al | |
| Surface Treatment | Paint | |
| Size | 585.40*284.10*234.09 | mm |
| Weight | 3.779 | kg |

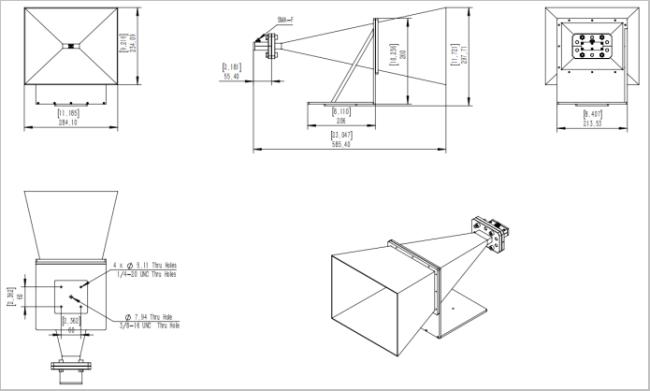

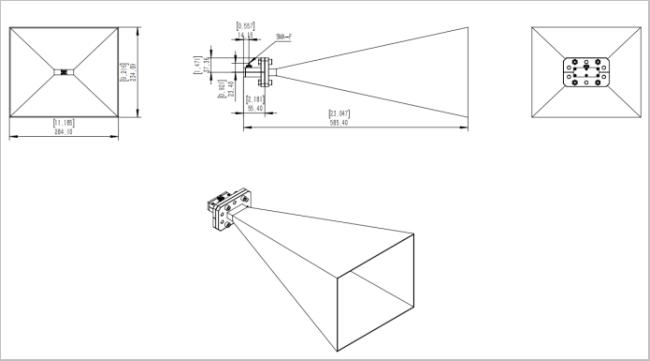

Outline Drawing(size:mm)

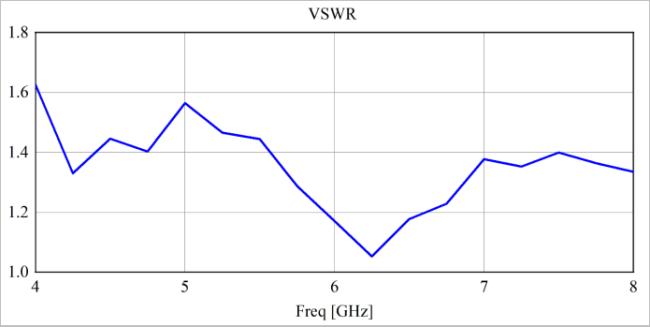

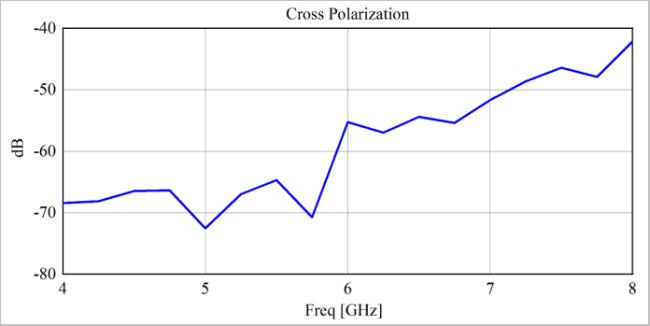

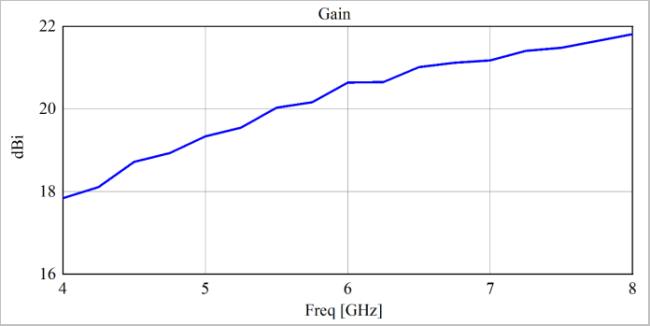

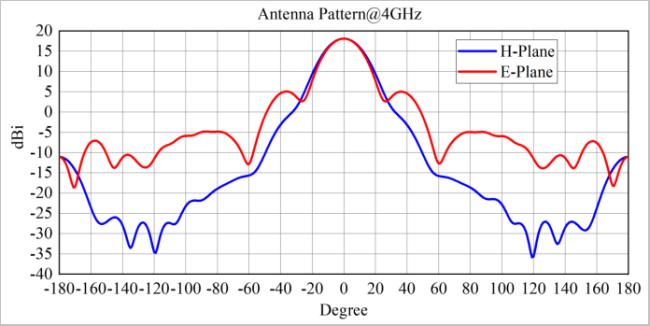

Simulated Data
Company Product
Packing and Delivery
FAQ
1.Why Choose us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.
2.What is the process of placing an order?
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.
3. How to contact us?
amber@ladaskytech.com
+86 13556824863
