Compact Handheld Drone Detector Providing Real Time Vibration And Sound Alerts With Easy One Handed Operation And Portability Drone Detection Anti Drone System For Wearable Use
Product Overview

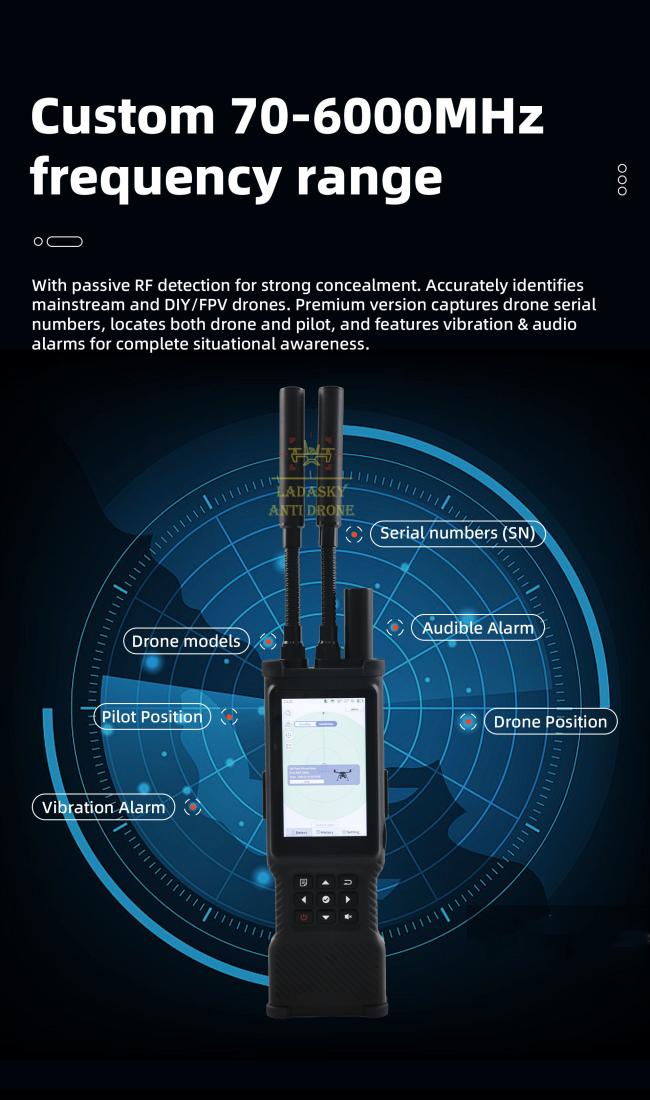

The TTSK-L01 is a portable handheld device that combines navigation positioning and drone detection functions in one. By performing in-depth analysis and feature identification on drone signals, this device can precisely detect mainstream brand drones, self-assembled (DIY) drones, and FPV drones within its effective working range. It is capable of detecting selected major drone brands, and can decode key information such as drone models, serial numbers (SN), as well as the positions of both the drone itself and its operator. To ensure timely notification, the device issues alerts through vibration and sound prompts.
With a compact handheld structure, the device is convenient to carry and initiates operation automatically once powered on. It is fitted with a 4-inch color LCD display, multi-functional mapping capabilities, various connectivity methods, and flexible power supply modes, all of which facilitate optimal one-handed operation for users.
Product Features
1)Full-Spectrum Detection Capability
The LDKW08 covers a frequency span from 100MHz to 8GHz, delivering uninterrupted and all-encompassing coverage for each MHz within this range. With ultra-wideband full-spectrum performance, it enables real-time detection of analog video transmission signals across all drone frequency bands, boasting an extremely low false alarm rate. Simultaneously, it displays all related signal data in real time, allowing users to intuitively and efficiently obtain signal information.
Product Parameters
| Name | Relevant Parameters: | Note |
|
Detection Method |
Passive RF detection and signal analysis |
|
|
Detection Frequency Bands |
12 preset selectable bands (customizable within 70 MHz–6 GHz) |
|
|
Detection Range |
1.5–2 km (depending on environment and drone transmit power) |
|
|
Azimuth Accuracy |
15°–30° (with optional directional antenna) |
depending on the frequency band and transmission power. |
|
Device Dimensions |
225 × 75 × 40 mm (excluding antenna) |
|
|
Device Weight |
≤0.9kg |
|
|
Battery Life |
≥6h |
|
|
Operating Temperature |
-20℃--50℃ |
|
|
Storage Temperature |
-40℃--70℃ |
|
|
Protection Rating |
IP55 |
Product Desciption
Why choose us?
FAQ:
Q1: Are you a factory or trading company?
Q2: How about the shipping method?
A2: DHL/UPS/TNT/FedEx and other air shipments and sea shipment are all workable. In one words, we support do any shipments you want.
Q3: How about the delivery date?
A3: In general, the delivery date will be 5-7 working days for normal buy quantity. But if bulk order, please allow us check further.
Q4: How about the label and logo?
A4: Customize label and logo are workable.
Q5: How about the MOQ?
A5: 1pcs
Q6: How to do if the product I received is defective?
A6: Our strict quality control ensures 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you a part or product.
