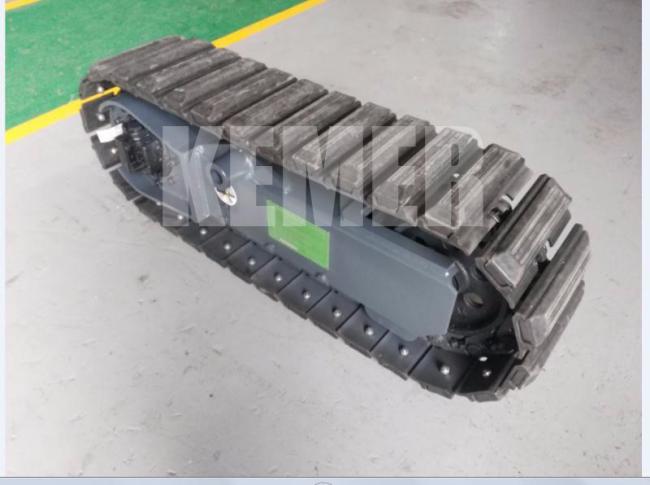

Video Technical Support After Service Steel Mini Crawler Undercarriage with Rubber Pads
Length | 1200mm | ||||
Loading Capacity | 1000 KG(set) | ||||
Payload | 500-600 KG(set) | ||||
Distance between center | 829 mm | ||||
Pitch | 72 mm | ||||
Track width | 180 mm | ||||
Track Frame | No/Weld/Bolt | ||||
Motor Displacement | 16.1 ml/r | ||||
Max speed | 2.3 km/h(Each side 23L/min) | ||||
Max Output Torque(each side) | 1150N.m | ||||
Max Gradeability | 35% | ||||
Products details:
1.Customized track frame.We can customized the Rubber crawler undercarriage according to customer's needs.
2.Maintenance:tips to help customers how to maintain the crawler undercarriage and how to longer the service life.
3.Good spare parts
We can customized the Rubber crawler undercarriage according to your needs Above is just some of our models.
Ningbo Kemer Engineering Machinery Co.,LTD
We located in Ningbo China.With many years' experience in this field,our undercarriage parts are specially selected and fabricated.
Have been exported to South Asia,Australia,Turkey,Brazil and many other countries.
Products are widely welcomed by our customers.
Customized service is available here.We usually customized the Rubber crawler undercarriage according to customer's needs like the length,width,track width,loading capacity,speed and so on.If you have detailed drawing we can make accordingly.
Usually machine facotry will buy Rubber crawler undercarriage from us and connect to their machines.
0.5 to 80 ton Track Assembly is available here.0.5 to 10 ton Rubber Crawler Undercarriage
We make 0.5 to 80 ton crawler undercarriages.
KRT3000
3 ton Rubber crawler undercarriage
KRT4000
4 ton Rubber crawler undercarriage
KRT1500
1.5 ton Rubber crawler undercarriage
Our Customers
Our customers come and visit our factory and we share a good time then.DIscussed about the products and their requirements.
