220V/380V/415V/440V/480V 500 Liters Per Hour Milk Plate Sterilizer for Food Beverage
Price:
$12,800.00/sets 1-1 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
NC, NC
Product Description
Product Overview

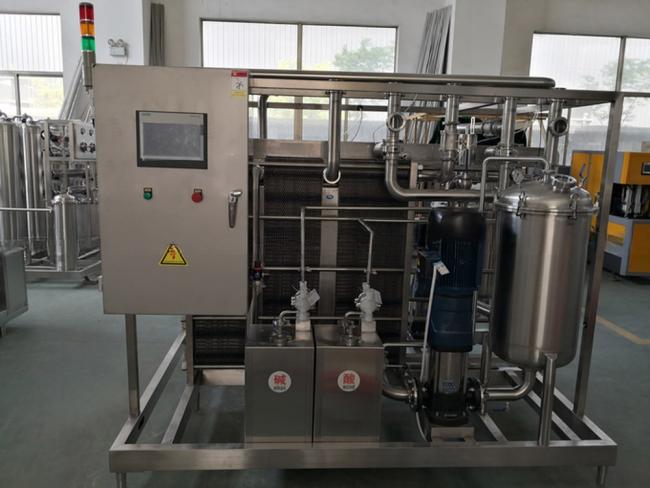

500 1000 2000 5000 Liters Per Hour Milk Plate Sterilizer
Plate type pasteurizer is PLC controlled,with optional capacity from 1t/hr to 15t/hr.The system work in aseptic section and normal section, for the technical require-ments of filling at low temperature,normal temperature and high temperature. The seven-section heat exchanger ensures minimum consumptionof energy,and per-fect design of CIP and SIP satisfies the demand of cleaning and sterilization.Ultra-high temperature water is employed as the media for the heating of materials and temperature adjustment of filling exit,featuring high accuracy.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Item name | Technical parameter | Item name | Technical parameter | ||||
Equipment Model | BR26-PUT-20B(4 stage) | Electrical power | 4.6KW | ||||
Heat exchange area | 20M2 | Material Inlet& Outlet Dia | DN38 | ||||
Material | 304 | Cold water Inlet&Outlet Dia | DN38 | ||||
Plate sheet size | 1210×340×0.6 | Cold water flow rate | 5t/h | ||||
Pasteurizing temp. | Fully automatic control | Steam pipe diameter | DN48×3 | ||||
Accurancy | ±1C | Steam consumption | 150Kg/h | ||||
reflux valve work condition | Alarm when high temperature, reflux when low temperature(automatically) | Compressed air pressure | >0.6Mpa | ||||
Maximum pressure | 0.5MPa | Compressed air consumption | 0.06M3/min | ||||
Weight | 1.5T | Equipment Size | 2200(L)×1800(W)×2400(H) | ||||
Power | 3 phase 50HZ 380V | ||||||
PRODUCT CONFIGURATION

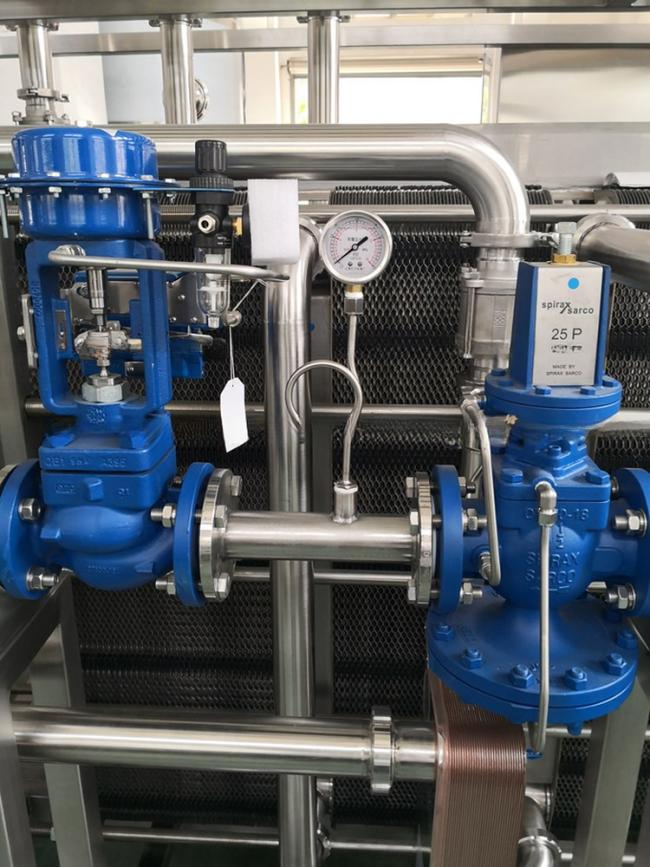

Spirax Sarco Valve

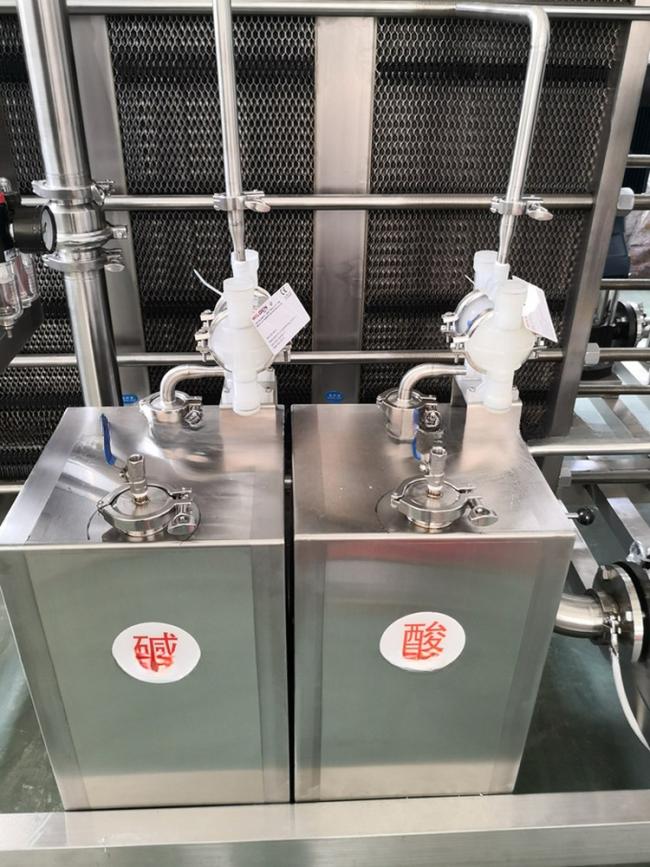

Alkali and Acid Vat

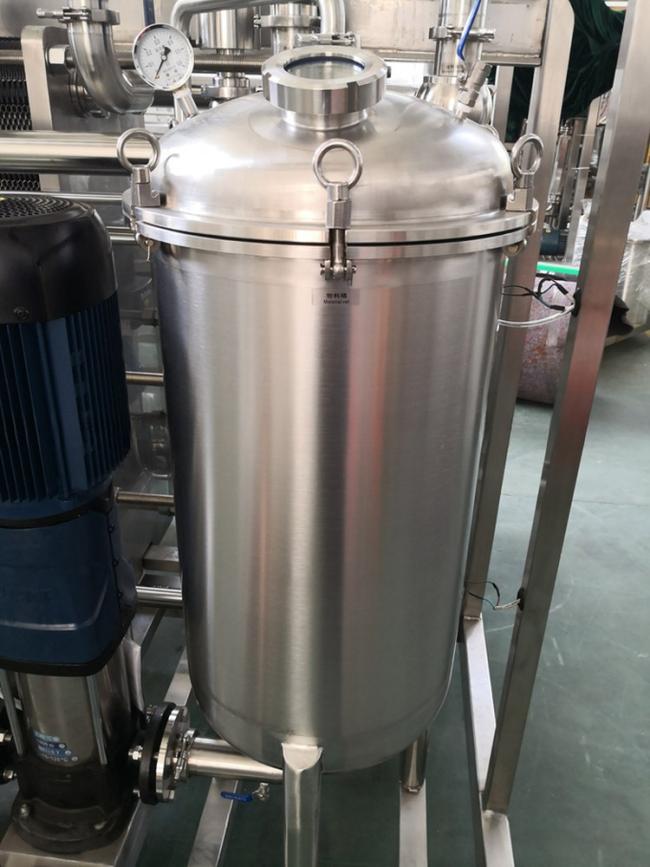

Food Sanitary Material Vat
