500L Square Type Emulsification Tank for Milk Stainless Steel 7.5KW 1000*1000*1800mm

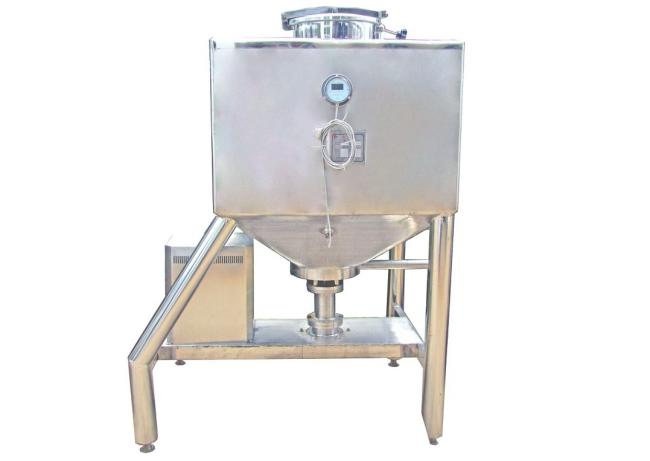

Food Sanitary Stainless Steel 600L Square Bottom Shear Emulsification Machine
Square bottom shear emulsification machine of this square high shear emulsification can in accordance with JB/T4735-1997 "steel welding atmospheric vessel of production, testing and acceptance, high things flow scattered the emulsion, by the role of the rotor diversion slot, give fluid provides a vertical flow of high-speed shear, eliminate the level of mixed up quality difference, import high quality emulsification head, rotating speed can reach 1500 RPM, to the production of the cane sugar, milk powder, rubber additives such as the dissolution of the emulsification has the best effect, is the similar products in the production efficiency is the highest products.
Technical parameter
| Effective volume | Length of internal tank | Width of internal tank | Height of internal tank | Total height | Heat preservation layer | Motor power | Rotation speed |
| (L) | (mm) | (mm) | (mm) | (mm) | (mm) | (kw) | (r/min) |
| 400 | 900 | 900 | 550 | 1000 | 50 | 7.5 | 1460 |
| 600 | 1000 | 100 | 650 | 1200 | 50 | 11 | 1460 |
| 800 | 1050 | 1050 | 750 | 1400 | 50 | 15 | 1460 |
| 1000 | 1150 | 1150 | 750 | 1600 | 50 | 15 | 1460 |
Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customerset up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time,you will see the machine working and running
conditon in our factory!
