Semi Automatic 20L Double Bottle Washing Machine for Bottles Packaging at Affordable

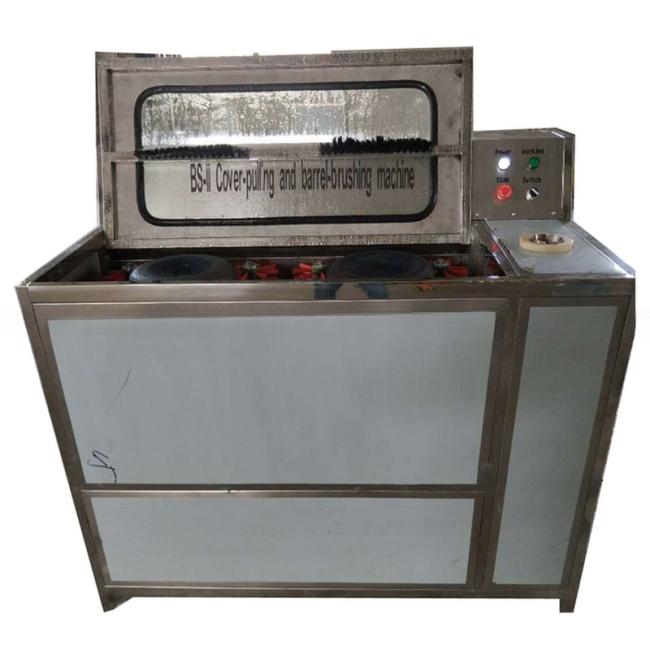

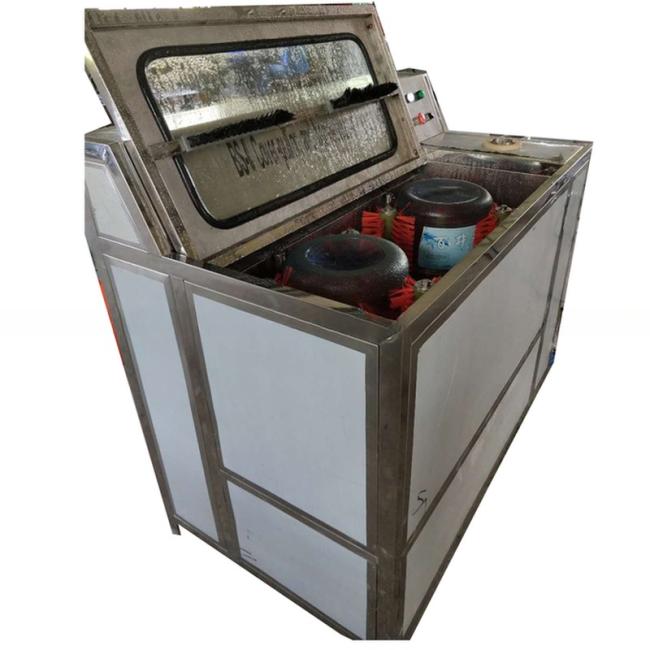

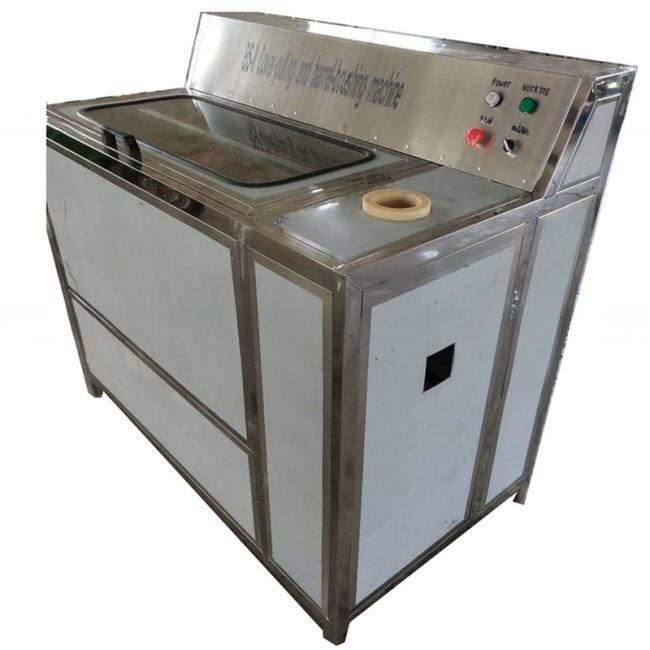

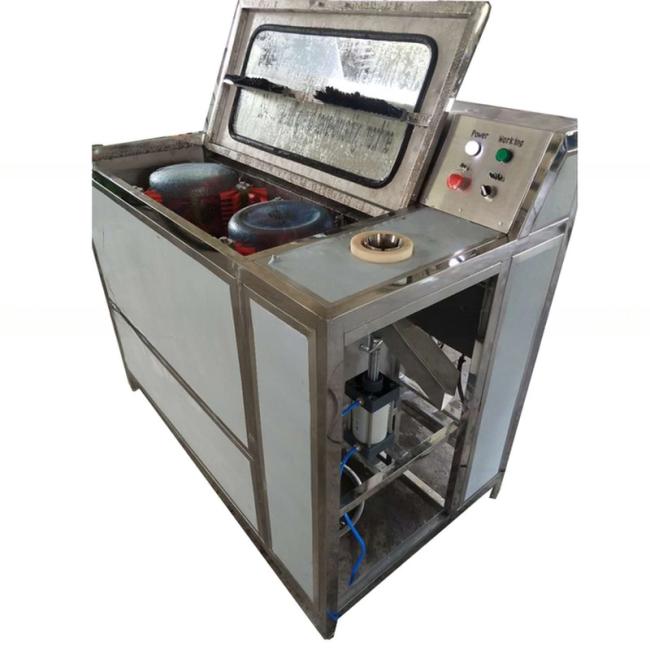

Machine Introduction
This washing machine is mainly use for the 3,5 gallon barrel filling production line, it can wash the barrel mouth and body, so specially use for mineral water etc.
The barrel is first decapped on the right side and then is put into the left part.
The brushes will remove the stain but will not damage the barrel and printed pattern on the barrel, the special brushes on the
bottom of the barrel. It can not only wash barrel with flat barrel, but also barrel with sunken bottom.
During the process of cleaning. With the aid of detergent, it can clean the stain completely. On the outlet for barrel, the clean
water spraying system will wash away the detergent.
The whole machine has employed an enclosed design, with high reliability and good stability.
| Power supply | 220V/240V±5% 50HZ |
| Input power | 0.75KW+0.75KW |
| Bottle spec(mm) | Φ270×490×Φ56 |
| Bottle volume | 5 or 3 gallons |
| Bottle washing capacity | 200b/h |
| Out size(mm) | 1250×950×1210 |
| Packing size(mm): | 1350×1050×1350 |
| Weight: | N.W.:195KG G.W.:210KG |
Overall size: 800*800*1200mm
Weight: 150kgs
Power: 1.5kw
Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time,you will see the machine working and running conditon in our factory!
