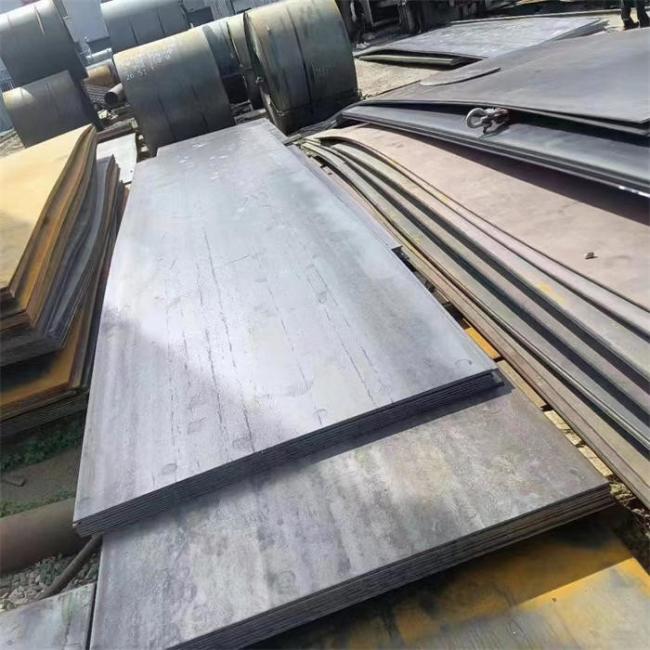

High Hardness NM400 Wear Plate Hot Rolled 4.0mm-100mm Thickness
NM400 Wear-Resistant Steel Plate High Hardness Wear-Resistant Components
Our Wear Resistant Steel Plate is engineered to withstand harsh conditions, offering exceptional durability and extended service life in high-wear applications. Crafted from premium quality steel alloy.
it features:
- Superior Wear Resistance: Designed to resist abrasion, erosion, and impact, ensuring long-lasting performance in challenging environments.
- High Strength: Provides robust mechanical properties to endure heavy loads and dynamic stresses without compromising structural integrity.
- Versatile Applications: Ideal for mining equipment, construction machinery, material handling systems, and other industries where abrasive wear is a concern.
- Reliable Performance: Ensures consistent performance over time, reducing downtime and maintenance costs.
NM400 is wear-resistant steel with a hardness of 400 HBW, as well as high strength and outstanding impact toughness. The enhanced resistance of NM400 enables considerable savings in all heavy applications where a longer lifespan, reduced weights, energy efficiency, and good weldability are required. All NM400 plates are fully killed and fine-grain treated - trimmed on all four edges, shot blasted, and UT tested in accordance with EN10160 S1E1
NM400 Plates are used in various applications like Civil engineering, buildings, and structures, industrial machinery, edge of loaders in the loader industry, wear-resistant lining plate in the crusher industry, slat type conveyors in colliery mechanical industry, lining plates of coal pulverizer in the power industry, lining plate of hopper for heavy handling truck, and various other applications that require long duration, low weight, high performance, and excellent weldability.
NM400 Steel Plates Specification :
Thickness : 4.0mm-100mm
Width : 1500mm 1800mm 2000mm 2200mm
Length : 6m 8m 10m 12m or cutting any length as request
Production : Hot-Rolled (HR)
Material : NM 400, BHN 400 Steel Plate, NM400 Abrasion Resistant Steel Plates, NM400 Wear Resistant Plates
Chemical Composition Of NM 400 Plates
| NM 400 Chemical Compositiom | |||||||||||
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| thickness mm | max % | max % | max % | max % | max % | max % | max % | max % | max % | typv | typv |
| 3-(8) | 0.15 | 0.7 | 1.6 | 0.025 | 0.01 | 0.3 | 0.25 | 0.25 | 0.004 | 0.33 | 0.23 |
| 8-20 | 0.15 | 0.7 | 1.6 | 0.025 | 0.01 | 0.5 | 0.25 | 0.25 | 0.004 | 0.37 | 0.27 |
| (20)-32 | 0.18 | 0.7 | 1.6 | 0.025 | 0.01 | 1 | 0.25 | 0.25 | 0.004 | 0.48 | 0.29 |
| (32)-45 | 0.22 | 0.7 | 1.6 | 0.025 | 0.01 | 1.4 | 0.5 | 0.6 | 0.004 | 0.57 | 0.31 |
| (45)-51 | 0.22 | 0.7 | 1.6 | 0.025 | 0.01 | 1.4 | 0.5 | 0.6 | 0.004 | 0.57 | 0.38 |
| (51)-80 | 0.27 | 0.7 | 1.6 | 0.025 | 0.01 | 1.4 | 1 | 0.6 | 0.004 | 0.65 | 0.41 |
| (80)-130 | 0.32 | 0.7 | 1.6 | 0.025 | 0.01 | 1.4 | 1.5 | 0.6 | 0.004 | 0.73 | 0.48 |
Mechanical Properties for NM 400 High Tensile Plate
| Mechanical properties of NM 400 | |||||
| Grade | Mechanical Property | Charpy V Impact Test | |||
| NM 400 | Yield | Tensile | Elongation | Degree | longitudinal |
| Min Mpa | Mpa | Min % | -40 | J | |
| 1000 | 1250 | 10 | 45 | ||
