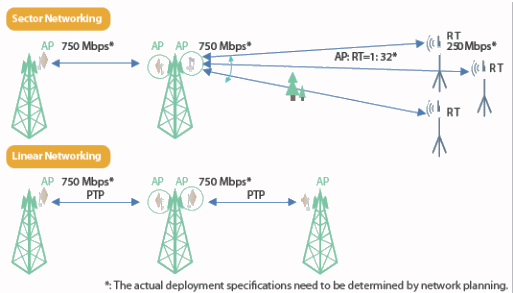

RTN510 PMP network is networked by one AP (Access Point, including AP equipment and sector antenna) connecting with up to 32 RTs (Remote Terminals), and each AP could provide total max. 750 Mbps capacity. For PTP network, it adapt same AP as PMP while adding external directional antenna for long distance transmission, and it also support max. 750Mpbs capacity.
Outdoor RTN 510AP RTN 510RT Outdoor E-band Cabinet System Wireless Microwave Equipment
Price:
$7,700.00/sets 2-49 sets
MOQ:
2 sets
Delivery Time:
Negotiable
Brand:
HW
Product Description
PRODUCT DESCRIPTION

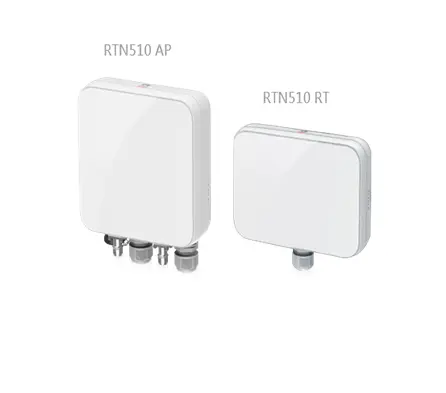

OptiX RTN 510 HW Public Spectrum Point-to-Multipoint Microwave
HW unlicensed PMP microwave RTN510 works in 4.91 to 5.97 GHz unlicensed frequency, and it can be flexible deployed in LOS (Line-of-Sight) and NLOS (Non-Line-of-Sight) scenarios. It support sector networking and linear networking, suit for large-scale coverage and linear scenarios, such as video surveillance in safe city, railway and highway, etc.
TECHNICAL SPECIFICATION
Main specifications of RTN 510 | ||||
RF Performance | ||||
Model Number | AP (Access Point) | RT (Remote Terminal) | ||
Frequency Range | 5 GHz: 4910-5970 MHz | |||
Channel Spacing | 10 | 20 | 40 | 80 MHz | |||
Modulation Schemes | MCS0 (BPSK)-MCS9 (256QAM) | |||
RF Functions | GPS Synchronization; DFS (Dynamic Frequency Selection); AM (Adaptive Modulation) | |||
Antenna gain | 17dBi (PMP), 22dBi (PTP)18dBi (PMP), 23dBi (PTP) | 16dBi17dBi | ||

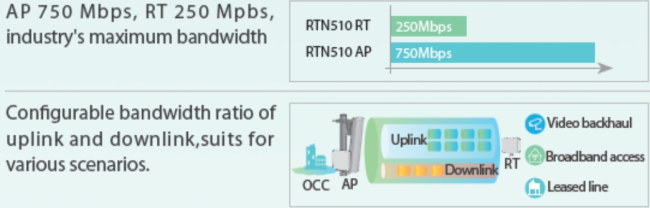

Throughput | Up to 750 Mbps* | Up to 250 Mbps* | ||
System Performance | ||||
Ports | 1 * GE (o), 1 * GE (e), 1 * GE (PoE) | 1* GE (PoE) | ||
Dimensions(H x W x D) | 204 mm x 204 mm x 65 mm | 241 mm x 168 mm x 52 mm | ||
Weight | 2.7 kg | 1.8 kg | ||
Power Consumption | 26W, typical | 10.5W, typical | ||
Power Supply | AC/DC/PoE | |||
Lightning Protection | 10KV (EN 61000-4-5) | |||
Dying gasp | support | |||
Ethernet Performance | ||||
Service Type | E-Line , E-LAN | |||
VLAN | IEEE 802.1q , IEEE 802.1p | |||
QinQ | Support | |||
Ethernet OAM | 802.1ag, 802.3ah | |||
QoS | Service classification by DSCP, CoS SP+WRR Port shaping 8-class QoS | Service classification by DSCP, CoSSP Port shaping 8-class QoS | ||
Network Management | ||||
NMS | Web Server, Mobile phone management, eSight, U2000 | |||
Environment | ||||
Protection class | IP67 | |||
Operation Temperature | –40ºC ~ +60ºC | |||
Corrosion resistance of salt mist | Comply IEC 60068-2-11, with highest standard of 4 weeks of salt mist corrosion test, applicable to the oshore scene | |||
Security | ||||
Encryption | AES 256bit | |||
RT access control | MAC address-based white list | |||
Authentication | RADIUS | |||
The actual deployment specications need to be determined by network planning. | ||||
