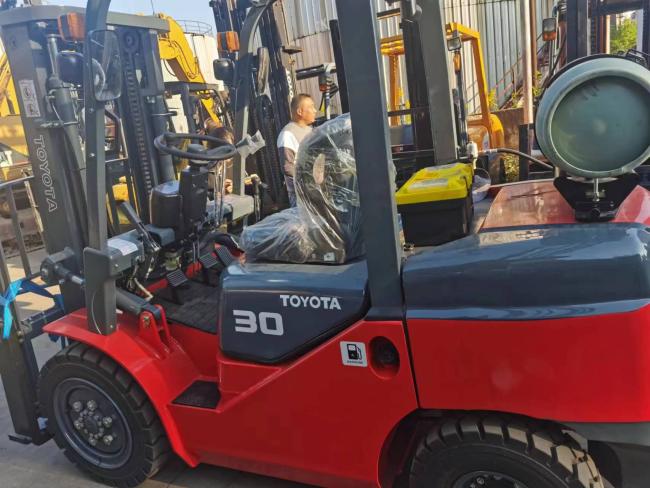

3000kg Loading Capacity Lpg Forklift Truck with Performance and Smooth Operation
Sell Brand new Lpg Forklift Truck 3 Ton 3.5T Gas/Lpg Forklift CPQYD30-XRW22 With Side Shift
Parameter:
| 1.2 | Manufacturer's type designation | CPQYD30-XRW22 | |
| 1.3 | Drive: electric (battery or mains), diesel, petrol, fuel gas | LPG/GASOLINE | |
| 1.4 | Operator type: hand, pedestrian, standing, seated, order-picker | Seated | |
| 1.5 | Rated capacity/rated load | Q (kg) | 3000 |
| 1.6 | Load centre distance | c (mm) | 500 |
| 1.8 | Load distance, centre of drive axle to fork | x (mm) | 475 |
| 1.9 | Wheelbase | y (mm) | 1700 |
| 2.1 | Service Weight | kg | 4680 |
| 2.2 | Axle loading, laden front/rear | kg | 6450/930 |
| 2.3 | Axle loading, unladen front/rear | kg | 1700/2680 |
| 3.1 | Tyres: solid rubber, superelastic, pneumatic, polyurethane | Pneumatic | |
| 3.2 | Tyre size, front | 28×9-15-14PR | |
| 3.3 | Tyre size, rear | 6.50-10-10PR | |
| 3.5 | Wheels, number front / rear (x = driven wheels) | 2×/2 | |
| 3.6 | Tread, front | b10 (mm) | 1005 |
| 3.7 | Tread, rear | b11 (mm) | 975 |
| 4.1 | Tilt of mast/fork carriage forward/backward | α/β(°) | 6/12 |
| 4.2 | Height, mast lowered | h1 (mm) | 2869 |
| 4.3 | Free lift | h2 (mm) | 165 |
| 4.4 | Lift | h3 (mm) | 6000 |
| 4.5 | Height, mast extended | h4 (mm) | 7046 |
| 4.7 | Height of overhead guard (cabin) | h6 (mm) | 2150(2250) |
| 4.8 | Seat height relating to SIP | h7 (mm) | 1175 |
| 4.12 | Coupling height | h10 (mm) | 350 |
| 4.19 | Overall length | l1 (mm) | 3770 |
| 4.20 | Length to face of forks | l2 (mm) | 2700 |
| 4.21 | Overall width | b1/b2(mm) | 1225/1725 |
| 4.22 | Fork dimensions | s/e/l (mm) | 45×122×1070 |
| 4.23 | Fork carriage DIN 15 173 --- ISO 2328, class/type A,B | Class A | |
| 4.24 | Fork-carriage width | b3 (mm) | 1100 |
| 4.25 | Distance between fork-arms | b5 (mm) | 272-1082 |
| 4.31 | Ground clearance, laden, below mast | m1 (mm) | 130 |
| 4.32 | Ground clearance, centre of wheelbase | m2 (mm) | 170 |
| 4.34.1 | Aisle width for pallets 1000 x 1200 crossways | Ast (mm) | 4075 |
| 4.34.2 | Aisle width for pallets 800 x 1200 lengthways | Ast (mm) | 4275 |
| 4.35 | Turning radius | Wa (mm) | 2400 |
| 4.36 | Minimum pivoting point distance | b13 (mm) | 810 |
| 5.1 | Travel speed, laden/unladen | km/h | 18/19 |
| 5.2 | Lift speed, laden/unladen | m/s | 0.46/0.50 |
| 5.3 | Lowering speed, laden/unladen | m/s | 0.45/0.50 |
| 5.5 | Drawbar pull, laden/unladen | N | 20800/14500 |
| 5.7 | Gradeability, laden/unladen | % | 25/25 |
| 5.10 | Service brake | Hydraulic | |
| Parking brake | Mechnical | ||

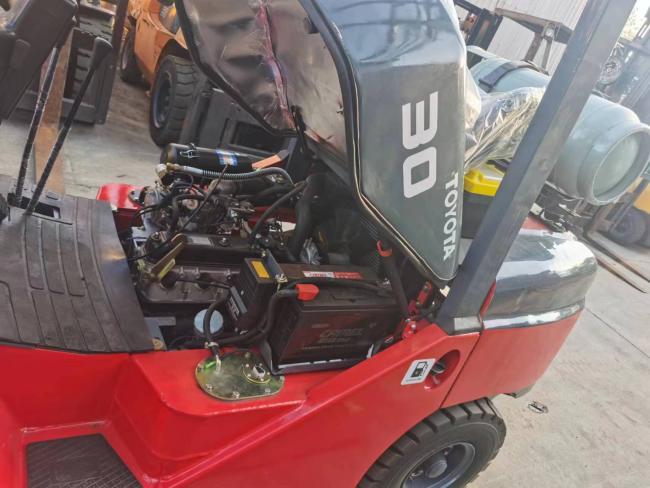

| 7.1 | Engine manufacturer/type | NISSAN GCT/K25 | |
| 7.2 | Engine power | kW | 37.4 |
| 7.3 | Rated speed | r/min | 2500 |
| 7.4 | Number of cylinders/displacement | (-) / (cm3) | 4/2488 |
| 7.9 | Vehicle electrical system voltage | V | 12 |
| 7.10 | Battery voltage/nominal capacity | V/Ah | 12/90 |
| Rated torque | N·m/r/min | 176.5/1600 | |
| Transmissions Manufacturer | China(F) | ||
| Transmissions Type | Powershift | ||
| Stage FWD/RVS | 1/1 | ||
| 10.1 | Operating pressure for attachments | bar | 175 |
| 10.2 | Oil volume for attachments | l/min | 60 |
| 10.3 | Hydraulic Tank - capacity (drain & refill) | liter | 65 |
| 10.4 | Fuel tank capacity | liter | 65 |
| 10.7 | Sound pressure level at the driver´s seat | dB (A) | 85 |
Great number old customers all over the world, because we have good service before and after sales.
Our Company specialized in used enginery contruction build, has experience for so many years, specialized in export all kinds of the used construction machine.We have established good business relationship with many countries from all over the world such as Africa, Middle East, Saudi Arabic, West Asia, South East and so on.We supply used excavators ,used bulldozers,used loaders,used cranes ,used forklifts,used dumpers,used road graders,used road rollers.Many famous brand for your choice.
We will arrange the shipping within 7 days after the deposit,and there are different shipping ways for your reference:
1:Container:It is cheapest and fast
2:Bulk ship:It is suitable for big machines
3:Flatrack:It is better for big machines and the machines can be shipped as it is,no need to dismantle
4:Ro-Ro:It is the best way for shipping,safe and fast
