87L/H Total Fuel Consumption Diesel Engine Cutter Sand Mining Dredger with Suction Pump
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description

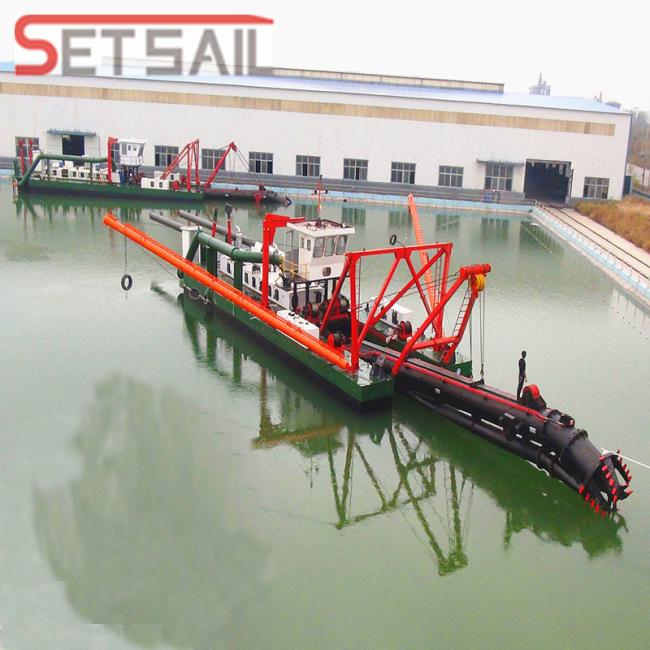

China diesel engine cutter sand mining dredger with suction pump
![China Diesel Engine Cutter Sand Mining Dredger with Suction Pump]()
Product shows :
Set sail cutter suction dredger used the all famous device . Cummin diesel engine , Shijiazhuang slurry pump Germany hydraulic pump Siemens PLC so on . use the hydraulic control the cutter head to improve the concentration to add the output . High pressure slurry pump through the suction pump the get the mixture of sand and mud from the river lake sea or reservoir so on ,then use the discharge pipe transfer the mixture to the land . Slurry pump power the normal from the diesel engine . especially according to the working situation and the requirement of customer power can designed electric . cutter head deck crane anchor rod and all of hydraulic winch. all of electrical equipment form the Siemens to control all . use the winch to control the cutter head to sector work of right and left.![China Diesel Engine Cutter Sand Mining Dredger with Suction Pump]()
![China Diesel Engine Cutter Sand Mining Dredger with Suction Pump]()
Workshop:![China Diesel Engine Cutter Sand Mining Dredger with Suction Pump]()
![China Diesel Engine Cutter Sand Mining Dredger with Suction Pump]()
![China Diesel Engine Cutter Sand Mining Dredger with Suction Pump]()
Parameter of 12 inch cutter suction dredger :
| Dredging depth | 12m |
| Capacity | 400m3 |
| Discharge distance | 1000m |
| Draft | 1.2m |
| Total weight | 120t |
| Total length | 31m |
| Total width | 7m |
| Total hight | 2m |
| Main pump size | 400ND |
| Water flow | 2000m3 |
| Head diameter | 1450mm |
| Speed | 11/22/33 |
| Discharge distance pipe diameter | 350mm |
| Main engine power/brand | 557kw |
| Auxiliary engine power /brand | 200kw |
| Pump Gearbox brand | Fada |
| Speed ratio | 2:1 |
| Hydraulic gearbox brand | Fada |
| Cutter head diameter | 1450mm |
| Cutter head power | 108kw |
| Spud diameter /wall thickness | 425mm*20mm |
| Spud Length | 17m |
| Spud weight | 7.2t |
| swing winch wire rope diameter | 22mm |
| Lifting winch wire rope diameter | 24mm |
| trolley moveing distance | 6m |
| Oil cylinder diameter | 160mm |
| Hydraulic system brand | Rexroth/Huade |
| Anchor weight | 400kg |
Product shows :
Set sail cutter suction dredger used the all famous device . Cummin diesel engine , Shijiazhuang slurry pump Germany hydraulic pump Siemens PLC so on . use the hydraulic control the cutter head to improve the concentration to add the output . High pressure slurry pump through the suction pump the get the mixture of sand and mud from the river lake sea or reservoir so on ,then use the discharge pipe transfer the mixture to the land . Slurry pump power the normal from the diesel engine . especially according to the working situation and the requirement of customer power can designed electric . cutter head deck crane anchor rod and all of hydraulic winch. all of electrical equipment form the Siemens to control all . use the winch to control the cutter head to sector work of right and left.
Product detailed shows :
Best parts will be used for the dredgers, like world famous Cummin engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves. all configuration equipment are customized according to the request .meantime we can offer the longer service than the other factory
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves. all configuration equipment are customized according to the request .meantime we can offer the longer service than the other factory
Cutter suction dredger feature:
| Diesel engine | Normally cummin on dredger Cater .Weichai Yuchai and other can available |
| Cutter head | Generally drive power hydraulic . Electric power cutter head can offer |
| Generator set | Cummin brand generator set Weichai brand others can available |
| Hydraulic system | Hydraulic control system from Germany Rexroth |
| PLC system | PLC adopts advanced system from Germany Siemens |
Workshop:
Function of cutter suction dredge :
| 1. | Cutter suction dredger is widely used in the river lake .sea .inland waterway and reservoir so on for dredging project |
| 2. | Cutter suction dredger is helpful for the port construction and match the wash sand equipment for project |
| 3. | Cutter suction dredger can match the mining machinery to get the gold and diamond etc. |
| 4. | Cutter suction dredger is suitable for all kinds of working situation , especially river with the high sand content and large project |
| 5. | Design of cutter suction dredger can reach the more dredger depth . we can make the design according to the dredging depth working site. |
Factory introduce :
| Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| Factory has manufacture experience more than 20 years. |
| More than 50 certificated engineers and technicians. |
| We have certification and patent more than 50 item. It contains ISO CE etc. |
| Set Sail dredger is sold more than 80 countries . |
| We have full range of dredging equipment for CSD dredger . jet suction dredger,.Wheel bucket Dredger. Bucket chain dredger. gold mining equipment. work boat. Tailing suction dredger and sand transportation boat etc. |
