Hydraulic Diesel Engine Cutter River Mud Dredger with 250mm Discharge Pipe Diameter
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
River Sand suction dredger with cutter head and mud pump
1.Parameter of 12 inch cutter suction dredger :
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()

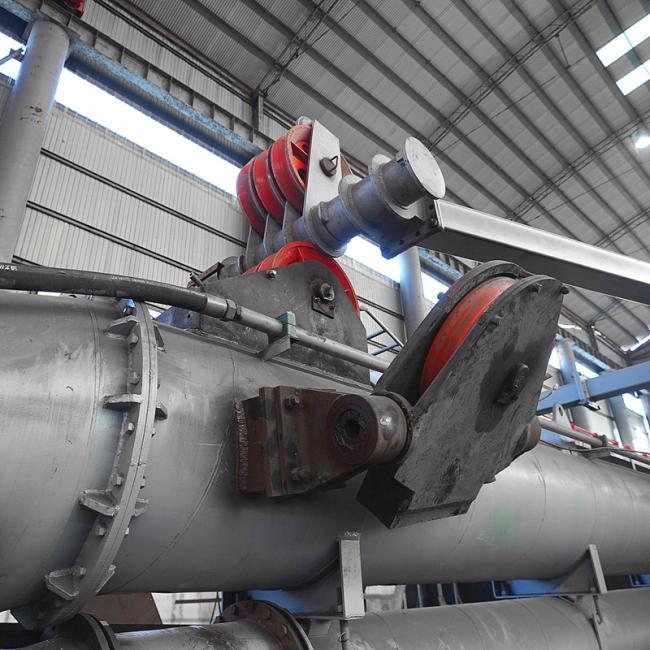

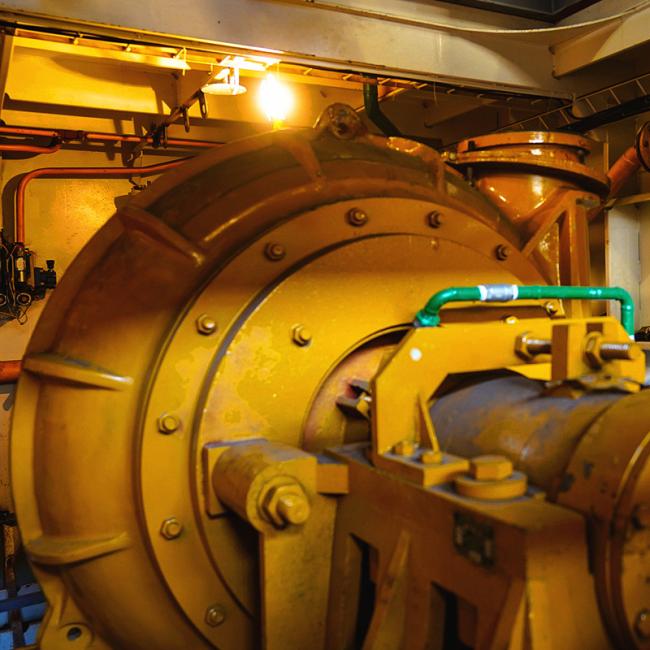

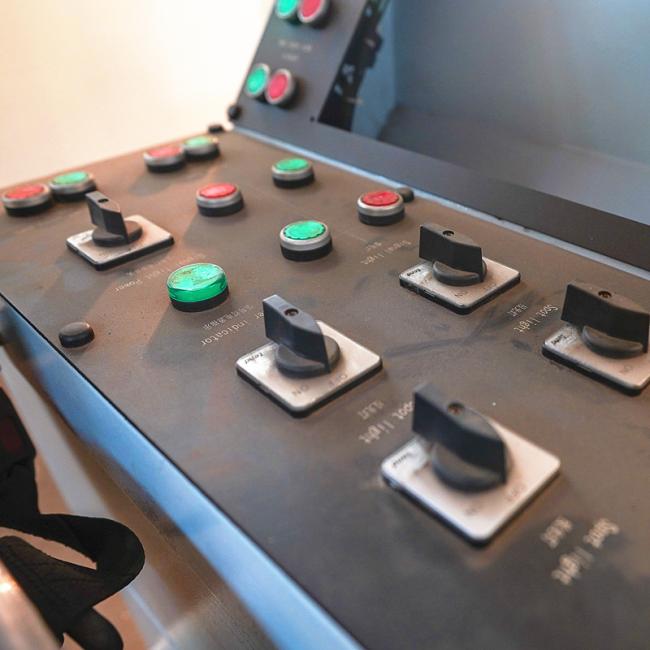

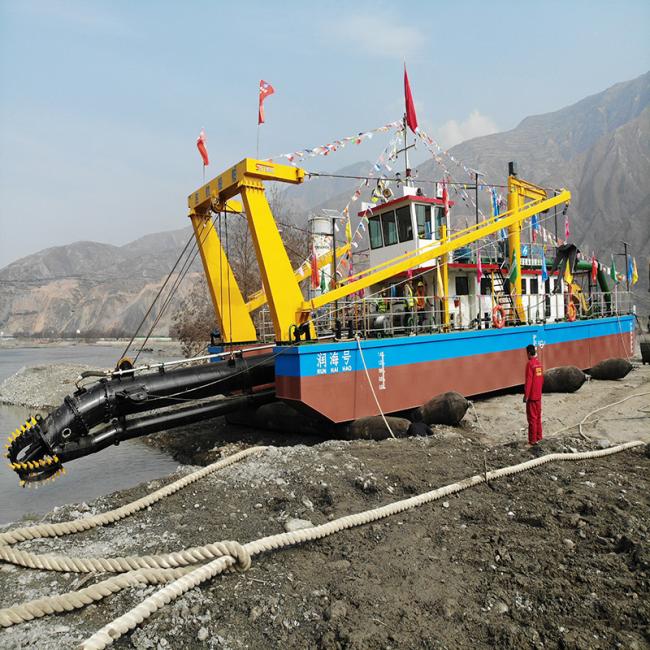

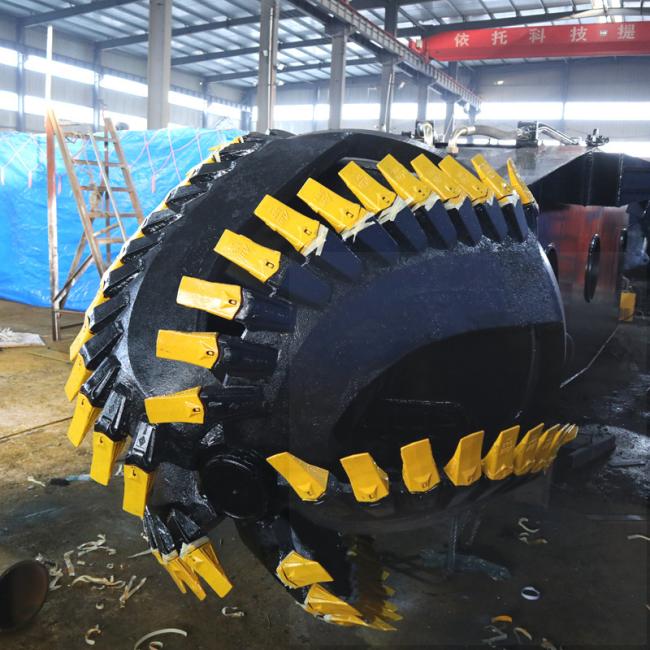

3.Product detailed shows :![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
4.Cutter suction dredger feature:
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
9.Function of cutter suction dredge :
10.Factory introduce :
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
1.Parameter of 12 inch cutter suction dredger :
| Dredging depth | 10m |
| Capacity | 300m3 |
| Discharge distance | 1200m |
| Draft | 1.2m |
| Total weight | 130t |
| Total length | 25m |
| Total width | 6.2m |
| Total hight | 2m |
| Main pump size | 300ND |
| Water flow | 1500m3 |
| Head diameter | 1350mm |
| Speed | 11/22/33 |
| Discharge distance pipe diameter | 250mm |
| Main engine power/brand | 559kw |
| Auxiliary engine power /brand | 200kw |
| Pump Gearbox brand | Fada |
| Speed ratio | 2:1 |
| Hydraulic gearbox brand | Fada |
| Cutter head diameter | 1350mm |
| Cutter head power | 60kw |
| Spud diameter /wall thickness | 425mm*20mm |
| Spud Length | 17m |
| Spud weight | 7.2t |
| swing winch wire rope diameter | 22mm |
| Lifting winch wire rope diameter | 24mm |
| trolley moveing distance | 6m |
| Oil cylinder diameter | 160mm |
| Hydraulic system brand | Rexroth/Huade |
| Anchor weight | 400kg |
The Cutter Suction Dredger of steel construction, the non self-propelled, dismountable type, is able to berth and dredge at any waters both
in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland
river steel engineering ship manufacture of P. R. China.
The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering
construction technique issued by Ministry of Water Resources(MWR) of P. R. China.
The hull consists of three pontoons, one main pontoon (engine room), two side pontoons. All parts are dimensioned to allow the YS-CSD350 dredger
to be transported by road, rail or water. The dredger is equipped with a rapid connection disconnection system for the pontoons, achieved
using bolts at deck level, hull front and rear , and hooks at the bottom. Further salient features of the dredger are the dredger is powered by
a Marine engine. the main engine is to drive the dredge pump and hydraulic pump. Hydraulic pump will in turn power other all equipments
such as cutter, swing and ladder winches, and the spud rams etc.
The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations. The side pontoons
are connected to the main pontoon by means of bolts.
The hull steel plate used is CCSB (shipbuilding steel plate ) .
in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland
river steel engineering ship manufacture of P. R. China.
The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering
construction technique issued by Ministry of Water Resources(MWR) of P. R. China.
The hull consists of three pontoons, one main pontoon (engine room), two side pontoons. All parts are dimensioned to allow the YS-CSD350 dredger
to be transported by road, rail or water. The dredger is equipped with a rapid connection disconnection system for the pontoons, achieved
using bolts at deck level, hull front and rear , and hooks at the bottom. Further salient features of the dredger are the dredger is powered by
a Marine engine. the main engine is to drive the dredge pump and hydraulic pump. Hydraulic pump will in turn power other all equipments
such as cutter, swing and ladder winches, and the spud rams etc.
The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations. The side pontoons
are connected to the main pontoon by means of bolts.
The hull steel plate used is CCSB (shipbuilding steel plate ) .
2.Product shows :
3.Product detailed shows :
4.Cutter suction dredger feature:
| Diesel engine | Normally cumins on dredger Cater .Weichai Yuchai and other can available |
| Cutter head | Generally drive power hydraulic . Electric power cutter head can offer |
| Generator set | Cumins brand generator set Weichai brand others can available |
| Hydraulic system | Hydraulic control system from Germany Rexroth |
| PLC system | PLC adopts advanced system from Germany Siemens |
5. Function :
6.Question for reply:
7. FAQ:
Q1, Is Set Sail a factory or trading company?
A: Set Sail - Qingzhou Set Sail Dredging Equipment Equipment Co., Ltd is a leading dredger manufacturer in China, we have 6 factories and over 100 workers to enable large production.
Q2, What are the services the Set Sail company is providing?
A: Free dredger consultation, drawing design, customization, on-site visits, 24/7 availability, free assembly, training, operation testing, and lifetime technical assistance.
Q3, What are the delivery terms?
A: Set Sail Dredger delivery can be in containers or in bulk depends on the dredger size. Set Sail has in-stock dredgers, and constantly storing dredger parts, pipes, pontoons, to shorten the delivery period for special needs.
Q3, What about the payment terms?
A: Payment can be paid in T/T or L/C, payment terms and financial support can be discussed.
Q4, What are the warranty terms?
A: Set Sail provides a standard 1-year warranty, free problem solving with lifetime technical assistance
Q5, Why you say Set Sail is your trustworthy dredger manufacturer?
A: Set Sail is a trustworthy dredger manufacturer because we have 30 years' manufacturer workmanship, trusted by many Fortune 500 companies globally. Set Sail continuing to innovate and develop new products such as amphibious dredger, salt mining dredger and more, upgrades existing dredger technology. Our engineers and designers are hired from prestigious dredger institutions in China. Our products are working in more than 40 countries so far and have 6 global offices to better serve our clients.
8.Workshop:
| 1 | Cutter suction dredger is widely used in the river lake .sea .inland waterway and reservoir so on for dredging project |
| 2. | Cutter suction dredger is helpful for the port construction and match the wash sand equipment for project |
| 3. | Cutter suction dredger can match the mining machinery to get the gold and diamond etc. |
| 4. | Cutter suction dredger is suitable for all kinds of working situation , especially river with the high sand content and large project |
| 5. | Design of cutter suction dredger can reach the more dredger depth . we can make the design according to the dredging depth working site. |
6.Question for reply:
| 1 | How many water flow is the cutter suction dredger ? |
| 2 | How many maximum dredging depth ? |
| 3 | How many kilo meter is your discharge distance ? |
7. FAQ:
Q1, Is Set Sail a factory or trading company?
A: Set Sail - Qingzhou Set Sail Dredging Equipment Equipment Co., Ltd is a leading dredger manufacturer in China, we have 6 factories and over 100 workers to enable large production.
Q2, What are the services the Set Sail company is providing?
A: Free dredger consultation, drawing design, customization, on-site visits, 24/7 availability, free assembly, training, operation testing, and lifetime technical assistance.
Q3, What are the delivery terms?
A: Set Sail Dredger delivery can be in containers or in bulk depends on the dredger size. Set Sail has in-stock dredgers, and constantly storing dredger parts, pipes, pontoons, to shorten the delivery period for special needs.
Q3, What about the payment terms?
A: Payment can be paid in T/T or L/C, payment terms and financial support can be discussed.
Q4, What are the warranty terms?
A: Set Sail provides a standard 1-year warranty, free problem solving with lifetime technical assistance
Q5, Why you say Set Sail is your trustworthy dredger manufacturer?
A: Set Sail is a trustworthy dredger manufacturer because we have 30 years' manufacturer workmanship, trusted by many Fortune 500 companies globally. Set Sail continuing to innovate and develop new products such as amphibious dredger, salt mining dredger and more, upgrades existing dredger technology. Our engineers and designers are hired from prestigious dredger institutions in China. Our products are working in more than 40 countries so far and have 6 global offices to better serve our clients.
8.Workshop:
9.Function of cutter suction dredge :
| 1 | Cutter suction dredger is widely used in the river lake .sea .inland waterway and reservoir so on for dredging project |
| 2. | Cutter suction dredger is helpful for the port construction and match the wash sand equipment for project |
| 3. | Cutter suction dredger can match the mining machinery to get the gold and diamond etc. |
| 4. | Cutter suction dredger is suitable for all kinds of working situation , especially river with the high sand content and large project |
| 5. | Design of cutter suction dredger can reach the more dredger depth . we can make the design according to the dredging depth working site. |
10.Factory introduce :
| Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| Factory has manufacture experience more than 20 years. |
| More than 50 certificated engineers and technicians. |
| We have certification and patent more than 50 item. It contains ISO CE etc. |
| Set Sail dredger is sold more than 80 countries . |
| We have full range of dredging equipment for CSD dredger . jet suction dredger,.Wheel bucket Dredger. Bucket chain dredger. gold mining equipment. work boat. Tailing suction dredger and sand transportation boat etc. |
11.Our mainly product : ![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
![Hydraulic Diesel Engine Cutter River Mud Dredger with Suction Pump]()
