16 Inch Cutter Suction Dredging Machinery 8mm Deck Plate 500 Cubic Meter Capacity
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
Diesel engine hydraulic control 16 inch cutter suction dredging machinery
Cutter Suction Dredger is self-propelled or non self-
pro-pelled. portable cutter suction dredger.Hull can be
dis-mantled and re-assemble easily with box
structure.Equipped with horizontal shifting devices.
cutter ladder lifting devices. spud devices. deck crane
and so on.Widely used in sand-excavating.river
dredging. desilt-ing.Reclamation for channels and land
port construction, etc.
pro-pelled. portable cutter suction dredger.Hull can be
dis-mantled and re-assemble easily with box
structure.Equipped with horizontal shifting devices.
cutter ladder lifting devices. spud devices. deck crane
and so on.Widely used in sand-excavating.river
dredging. desilt-ing.Reclamation for channels and land
port construction, etc.
Mainly features:
| 1 | Cutter suction dredger is suitable for inland waterways. lakes. rives of dredging. |
| 2 | Standard design. allowing early delivery and low price. |
| 3 | Cutter suction dredger has advantages of high output. low cost and convenent rapare. |
| 4 | Completely assembled and fully tested before delivery. |
| 5 | Cutter suction dredger adopt hydeaulic system. this system is very steady. it isn't easy to appear failure. |
| 6 | Simple rapid assembly and dismantling. |
| 7 | Ready for operation on arrival at site. |
| 8 | Dredging pump adopt diesel engine to transmission.the power is stonger and steady. |
| 9 | Spare parts available from stock. |
| 10 | Transportable by road. rail or sea. |
| 11 | Reliable hydraulic system. |
| 12 | Efficient fuel consumption. |
16 inch dredger image:
Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together). all main parts such as sand pump and hydraulic pump power from the Cumins diesel engine . hydraulic pump provide the power for lifting winch swing winch . anchor boom winch . .hydraulic spud carrier and cutter head so on .

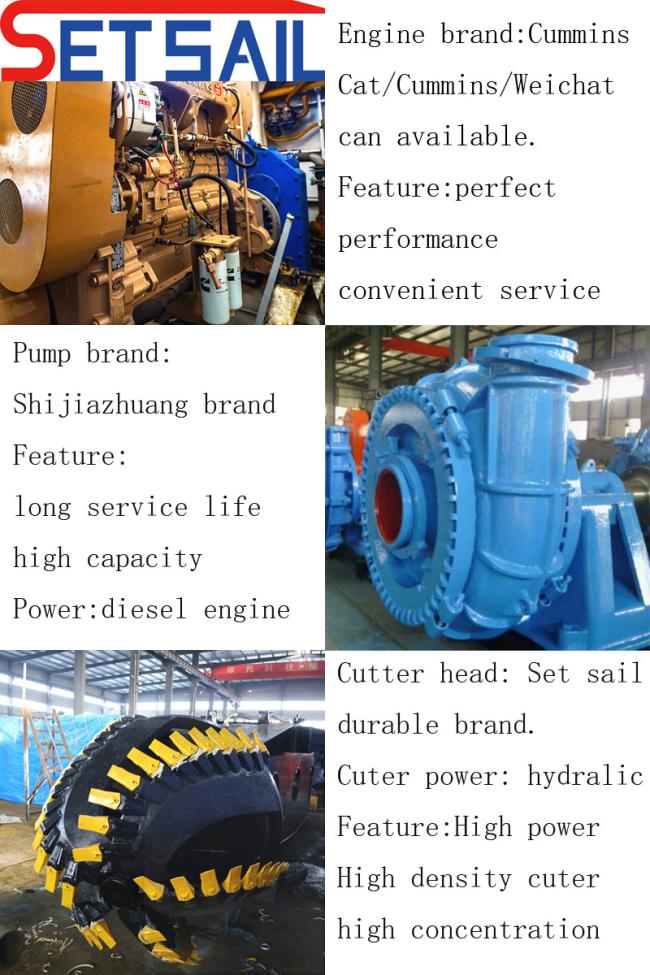

Detailed parts introduce :
Best parts will be used for the dredgers, like world famous Cumins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
16 inch dredger basic information :
| Dredger Loa | 32.0m |
| Hull Size(L*B*H) | 19.0×7.5×2.0m |
| Main pontoon(L*B*H) | 13.8×3.5×2.0m |
| Side Pontoon(L*B*H) | 19.0×2.0×2.0m |
| Structure | Box-structure |
| Main Engine Brand&Power | Cumins 582kw/Jichai 540Kw |
| Auxiliary enging power | Cumins 224kw |
| Harbour Generator | Cumins 30kw/Jichai 30kw |
| Total Power | Cumins 836kw/Jichai 790kw |
| Dredging Pump | Warma Technology |
| Discharge Pipr Inner Dia. | 400mm |
| Head | 45m |
| Max.Dredging Depth | 13m |
| Water Flow | 2500m³/h |
| Solid Sand Capacity | 500m³/h |
| Cutter head diameter | 1450mm |
| Cutter head power | 108kw |

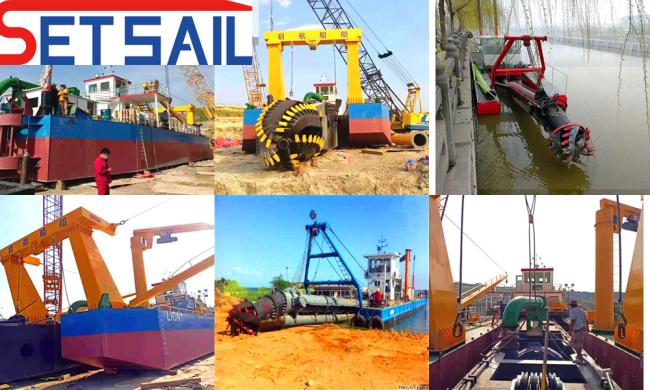

Dredger at installation site :
Dredger packing and transportation :
suction dredger feature:
| Diesel engine | Normally cumins on dredger Cater .Weichai Yuchai and other can available |
| Cutter head | Generally drive power hydraulic . Electric power cutter head can offer |
| Generator set | Cumins brand generator set Weichai brand others can available |
| Hydraulic system | Hydraulic control system from Germany Rexroth |
| PLC system | PLC adopts advanced system from Germany Siemens |
Our service :
| 1 | offer the solution and design before the sale. |
| 2 | Inquiry and consulting support. |
| 3 | Sample testing support. |
| 4 | View our Factory. |
| 5 | Training how to instal the machine, training how to use the machine. |
| 6 | Engineers available to service machinery overseas. |
Our customer:
Company overview:
| 1 | More than 25 years experience |
| 2 | More than 120 certificated engineers and technicians |
| 3 | Cooperated with famous ship design & research institute and Ocean University |
| 4 | Exported to more than 80 countries in all over the world |
Question for customer:
| 1 | The capacity of the output per hour? |
| 2 | The max.dredging Depth ? |
| 3 | The max. discharge distance ? |
