2500 Cubic Meter Water Flow Cyclone Type Hydrocyclone Cutter Suction Sand Ship for River
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
Flexible high quality 16 inch cutter suction sand ship for river
Cutter Suction Dredger is self-propelled or non self- pro-pelled. portable cutter suction dredger.Hull can be dis-mantled and re-assemble easily with box structure.Equipped with horizontal shifting devices.cutter ladder lifting devices. spud devices. deck crane and so on.Widely used in sand-excavating.river
dredging. desilt-ing.Reclamation for channels and land port construction. etc.
dredging. desilt-ing.Reclamation for channels and land port construction. etc.
Mainly features:
| 1 | Cutter suction dredger is suitable for inland waterways. lakes. rives of dredging. |
| 2 | Standard design. allowing early delivery and low price. |
| 3 | Cutter suction dredger has advantages of high output. low cost and convenent rapare. |
| 4 | Completely assembled and fully tested before delivery. |
| 5 | Cutter suction dredger adopt hydeaulic system. this system is very steady. it isn't easy to appear failure. |
| 6 | Simple rapid assembly and dismantling. |
| 7 | Ready for operation on arrival at site. |
| 8 | Dredging pump adopt diesel engine to transmission.the power is stonger and steady. |
| 9 | Spare parts available from stock. |
| 10 | Transportable by road. rail or sea. |
| 11 | Reliable hydraulic system. |
| 12 | Efficient fuel consumption. |
16 inch dredger image:
Detailed parts introduce :
16 inch dredger basic information :
| Dredger Loa | 32.0m |
| Hull Size(L*B*H) | 19.0×7.5×2.0m |
| Main pontoon(L*B*H) | 13.8×3.5×2.0m |
| Side Pontoon(L*B*H) | 19.0×2.0×2.0m |
| Structure | Box-structure |
| Main Engine Brand&Power | Cummins 582kw/Jichai 540Kw |
| Auxiliary enging power | Cummins 224kw |
| Harbour Generator | Cummins 30kw/Jichai 30kw |
| Total Power | Cummins 836kw/Jichai 790kw |
| Dredging Pump | Warman Technology |
| Discharge Pipr Inner Dia. | 400mm |
| Head | 45m |
| Max.Dredging Depth | 13m |
| Water Flow | 2500m³/h |
| Solid Sand Capacity | 500m³/h |
| Cutter head diameter | 1450mm |
| Cutter head power | 108kw |

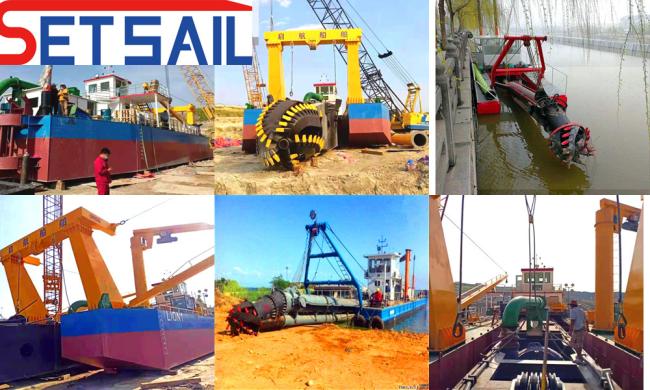

Dredger at installation site :

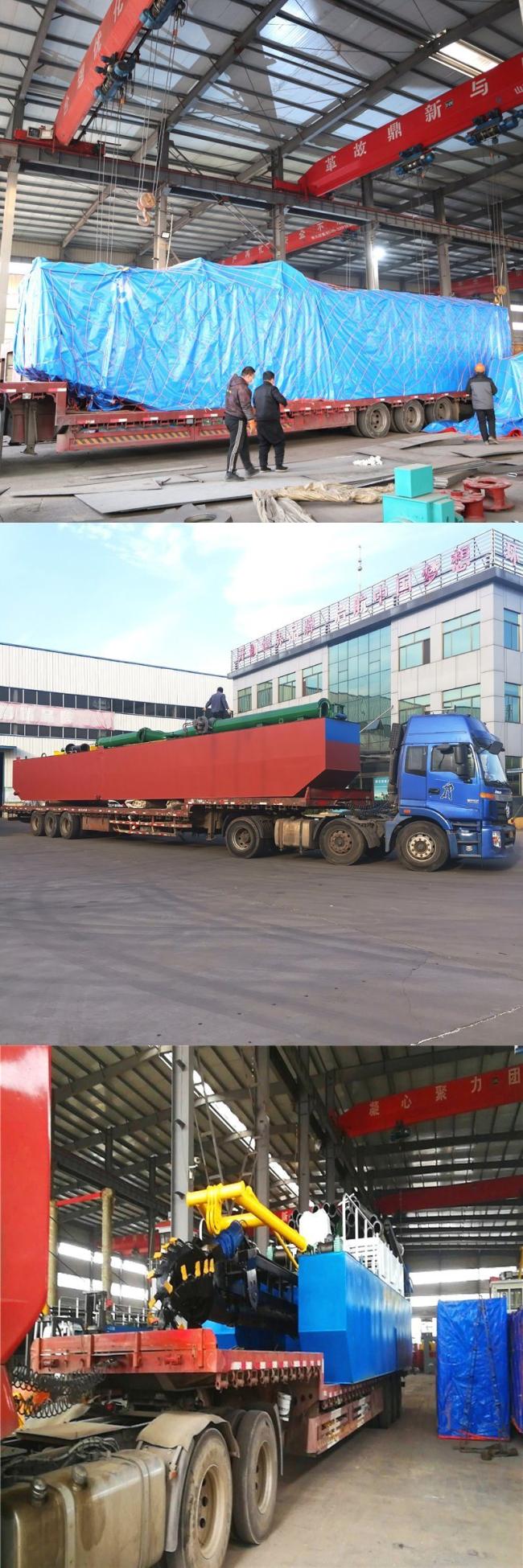

Dredger packing and transportation :
Our service :
| 1 | offer the solution and design before the sale. |
| 2 | Inquiry and consulting support. |
| 3 | Sample testing support. |
| 4 | View our Factory. |
| 5 | Training how to instal the machine, training how to use the machine. |
| 6 | Engineers available to service machinery overseas. |
Our customer:
Company overview:
| 1 | More than 25 years experience |
| 2 | More than 120 certificated engineers and technicians |
| 3 | Cooperated with famous ship design & research institute and Ocean University |
| 4 | Exported to more than 80 countries in all over the world |
Question for customer:
| 1 | The capacity of the output per hour? |
| 2 | The max.dredging Depth ? |
| 3 | The max. discharge distance ? |
