Shipping Cost and Capacity 16 Inch Cutter Suction Dredger for Bangladesh River Sand
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
16 inch cutter suction dredger used in Bangladesh river sand
Cutter Suction Dredger is self-propelled or non self- pro-pelled. portable cutter suction dredger.Hull can be dis-mantled and re-assemble easily with box structure.Equipped with horizontal shifting devices.cutter ladder lifting devices. spud devices. deck crane and so on.Widely used in sand-excavating.river dredging. desilt-ing.Reclamation for channels and land port construction. etc.
Mainly features:
| 1 | Cutter suction dredger is suitable for inland waterways. lakes. rives of dredging. |
| 2 | Standard design. allowing early delivery and low price. |
| 3 | Cutter suction dredger has advantages of high output. low cost and convenent rapare. |
| 4 | Completely assembled and fully tested before delivery. |
| 5 | Cutter suction dredger adopt hydeaulic system. this system is very steady. it isn't easy to appear failure. |
| 6 | Simple rapid assembly and dismantling. |
| 7 | Ready for operation on arrival at site. |
| 8 | Dredging pump adopt diesel engine to transmission.the power is stonger and steady. |
| 9 | Spare parts available from stock. |
| 10 | Transportable by road. rail or sea. |
| 11 | Reliable hydraulic system. |
| 12 | Efficient fuel consumption. |
16 inch dredger image:
Hydraulic cutter head to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together). all main parts such as sand pump and hydraulic pump power from the Cummins diesel engine . hydraulic pump provide the power for lifting winch swing winch . anchor boom winch . .hydraulic spud carrier and cutter head so on .
Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
Set Sail main product : cutter suction dredger . jet suction dredger . wheel bucket suction dredger . bucket chain river mining and sand dredger .trailing hopper suction dredger .land mining machinery . multi function service working boat . sand transportation boat . sand washing platform . meantime we can according to the customers request to do the any dredging machinery .

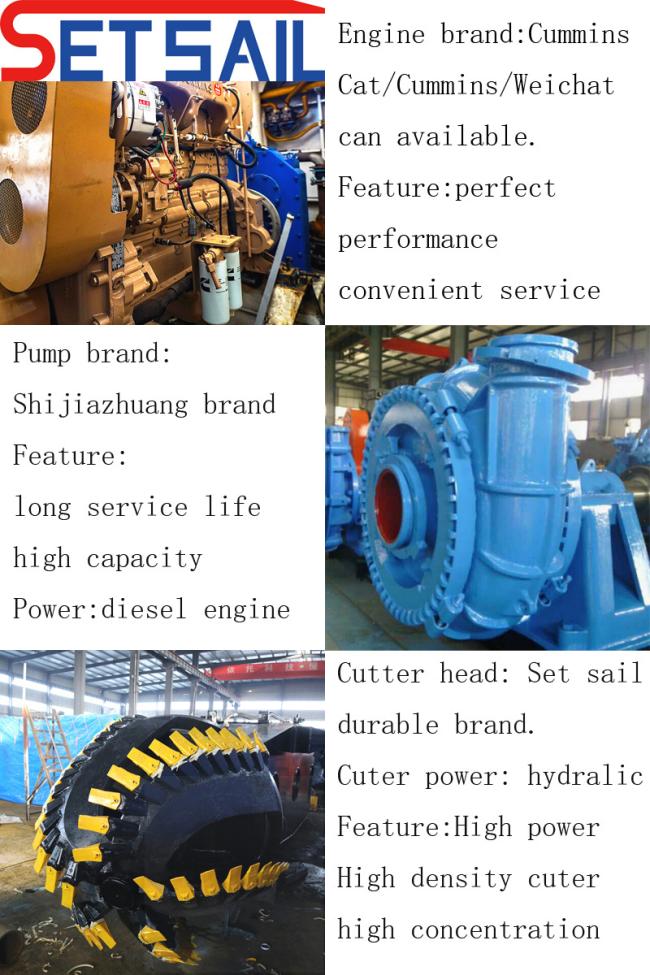

Detailed parts introduce :
16 inch dredger basic information :
| Dredger Loa | 32.0m |
| Hull Size(L*B*H) | 19.0×7.5×2.0m |
| Main pontoon(L*B*H) | 13.8×3.5×2.0m |
| Side Pontoon(L*B*H) | 19.0×2.0×2.0m |
| Structure | Box-structure |
| Main Engine Brand&Power | Cummins 582kw/Jichai 540Kw |
| Auxiliary enging power | Cummins 224kw |
| Harbour Generator | Cummins 30kw/Jichai 30kw |
| Total Power | Cummins 836kw/Jichai 790kw |
| Dredging Pump | WarmTechnology |
| Discharge Pipr Inner Dia. | 400mm |
| Head | 45m |
| Max.Dredging Depth | 13m |
| Water Flow | 2500m³/h |
| Solid Sand Capacity | 500m³/h |
| Cutter head diameter | 1450mm |
| Cutter head power | 108kw |

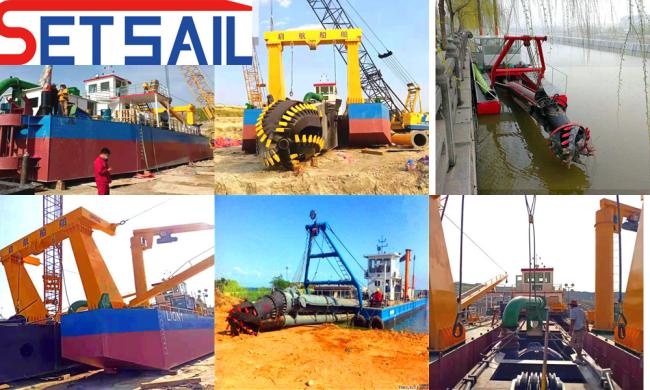

Dredger at installation site :

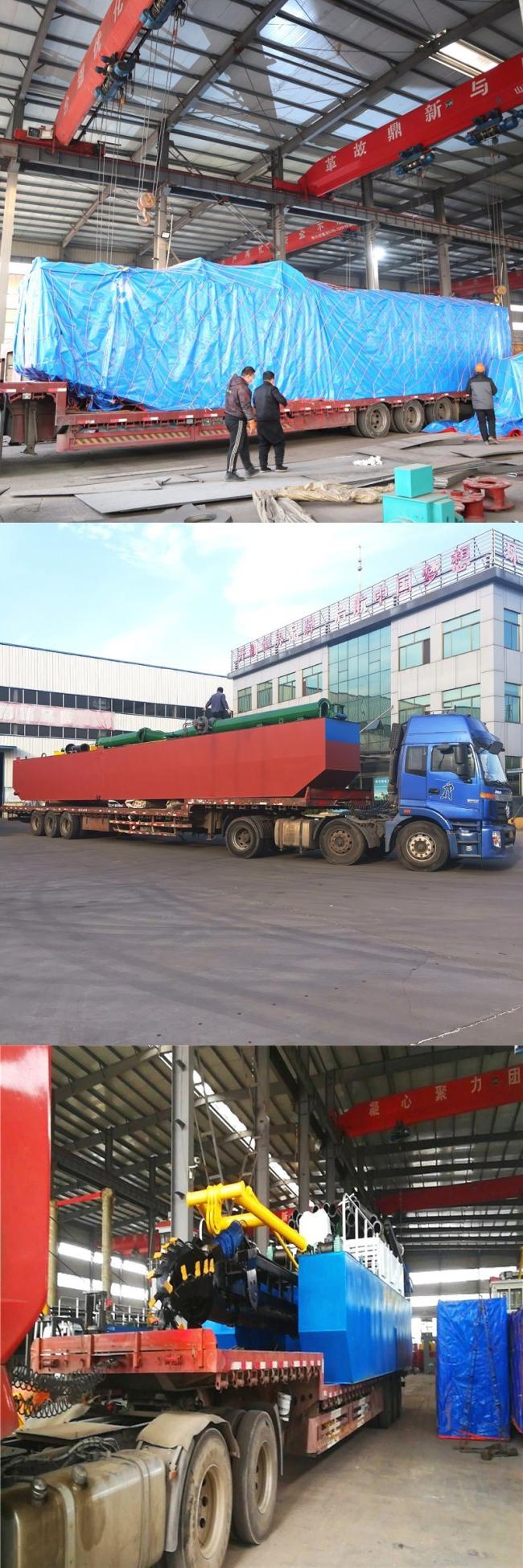

Dredger packing and transportation :
Our service :
| 1 | offer the solution and design before the sale. |
| 2 | Inquiry and consulting support. |
| 3 | Sample testing support. |
| 4 | View our Factory. |
| 5 | Training how to instal the machine, training how to use the machine. |
| 6 | Engineers available to service machinery overseas. |
Our customer:
Company overview:
| 1 | More than 25 years experience |
| 2 | More than 120 certificated engineers and technicians |
| 3 | Cooperated with famous ship design & research institute and Ocean University |
| 4 | Exported to more than 80 countries in all over the world |
Question for customer:
| 1 | The capacity of the output per hour? |
| 2 | The max.dredging Depth ? |
| 3 | The max. discharge distance ? |
