15-50m Full Automatic Hydraulic Cutter Head Cutter Suction Dredger for Dredging Needs
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
China full automatic hydraulic cutter head cutter suction dredger
cutter suction dredger overview:
| Set Sail cutter suction dredger is widely used for dredging sand . mud. gravel in the river . lake. sea. Pond . lagoon reservoir port constructure and inland waterways so on dredging project . configuration of Cummins marine diesel engine and Shijiazhuang dredge pump. this model dredger can keep high capacity and low failture. can use the shortest working time to get the biggest profit for the customers Besides according to the customers request to equiped GPS control system . all realtime data are collected display on the secrren form the sounder depth . water flow meter and all kinds of machinery pressure meter . it make the easier for checking all equipment working situation . |
| Type | QH-2006 | QH-2508 | QH-3508 | QH-4012 | QH-5015 | QH-6015 | QH-7018 | QH-8018 |
| Basic function | All kinds of dredging project | |||||||
| Main Particulars | ||||||||
| Length overall (ladder raised) | 16.5m | 24.5m | 24.5m | 31m | 39m | 39m | 46m | 46m |
| Breadth | 3.2m | 5.5m | 5.5m | 7m | 8.6m | 8.8m | 10.2m | 10.2m |
| Depth | 1.26m | 1.48m | 1.48m | 2m | 2.25m | 2.25m | 2.7m | 2.7m |
| Design draught | 0.7m | 0.9m | 0.8m | 1.2m | 1.2m | 1.25m | 1.5m | 1.5m |
| Maximum standard dredging depth | 6m | 8m | 8m | 12m | 15m | 15m | 18m | 18m |
| Diameter of discharge pipe | 200 mm | 250 mm | 350mm | 400mm | 500mm | 600 mm | 700mm | 800mm |
| Max. mixture capacity | 450m3 | 800m3 | 1500m3 | 2000m3 | 3500m3 | 5000m3 | 7000m3 | 9000m3 |
| Dredge pump power | 140kW | 220kW | 540kW | 650kW | 800kW | 1150kW | 1800kW | 2600kW |
| Cutter power | 38kW | 50kW | 64kW | 78kW | 180kW | 260kW | 450kW | 450kW |
| Total weight | 23T | 42T | 61T | 120T | 180T | 230T | 360T | 380T |

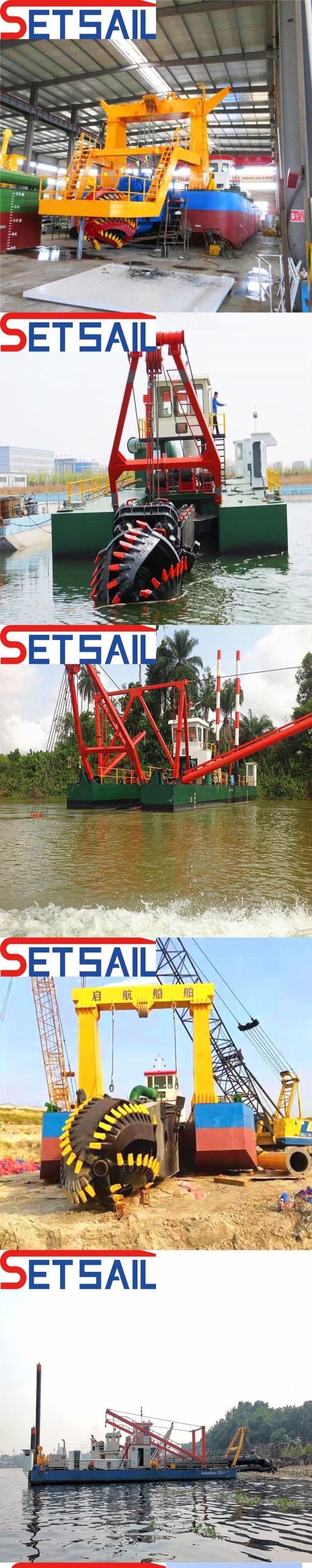

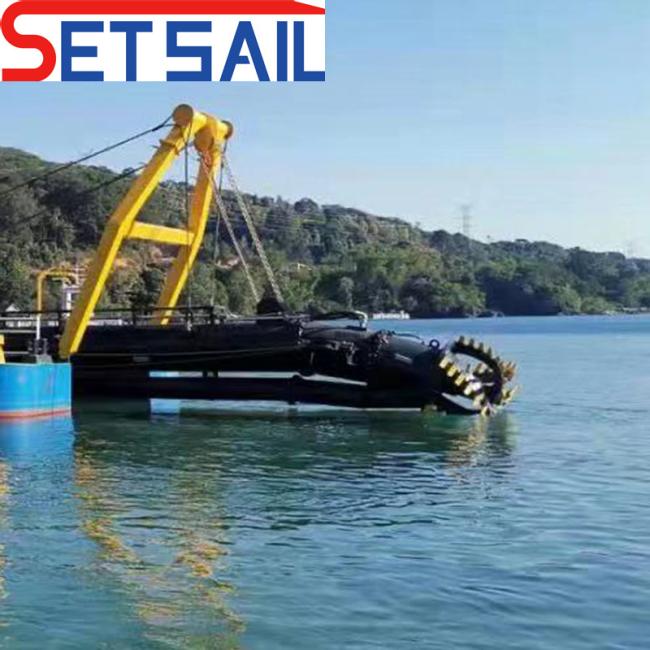

Product picture:

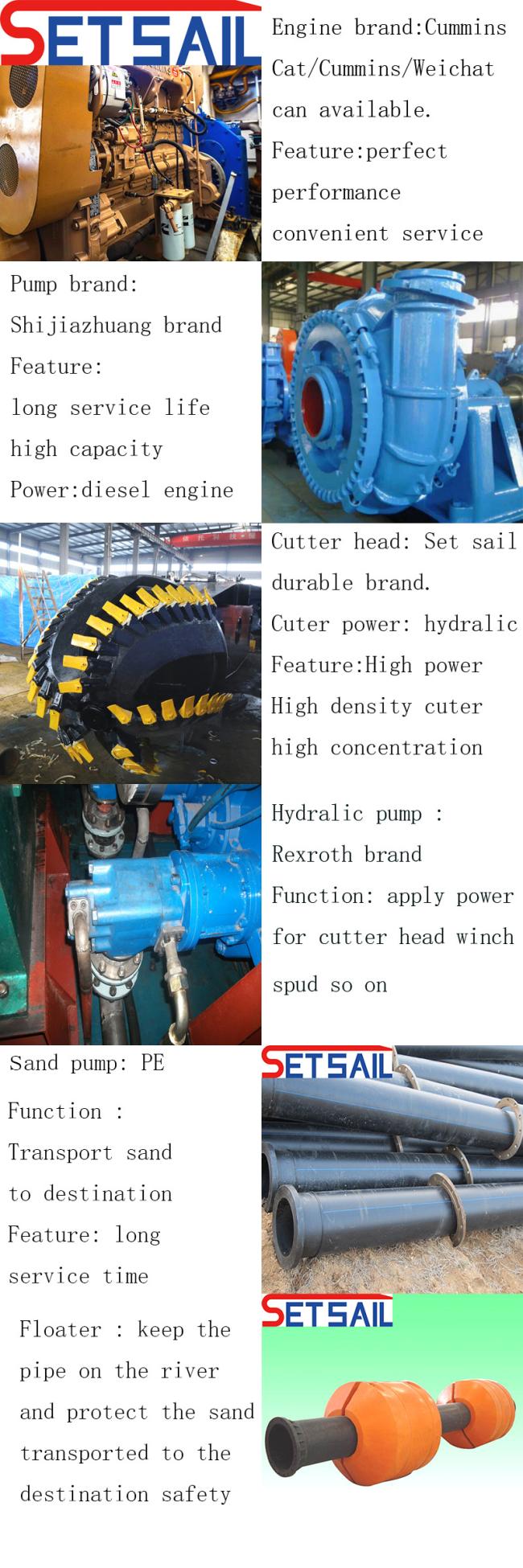

Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.

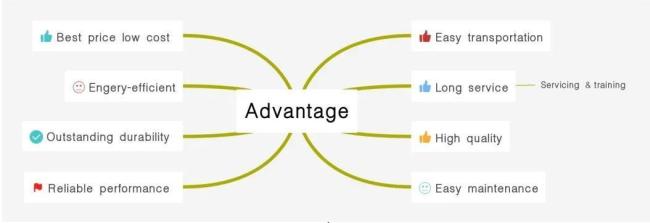

Product Advantages:
Detailed information :
Main feature :
| 1 | All configuration device from the abroad brand . Cummins and Cater. diesele engine . Rexroth hydrulic system . Siemens PLC .DGPS system . all steel plate complys the CCSB and CCSA standard . Electrical complances brand is ABB. |
| 2 | Flexible payment. our factory support L/C . T/T . Installment so on . we can also according to the the real situation of customer to choose the fitted the payment way. |
| 3 | High quality service : we can send the expert engineer to the abroad for a long time . |
| 4 | Reliable manufacture technology :all technology especially Welding techonlogy is certified by the ship inspection Bureau |
| 5 | Operation with high efficient cutter head with special patented cutter teeth of highest wear resistance. we can according to the different working situation to choose the different cutter teeth . use the especially cutter teeth shape to improve the concentration to increase the capacity. |
Factory and working shop :

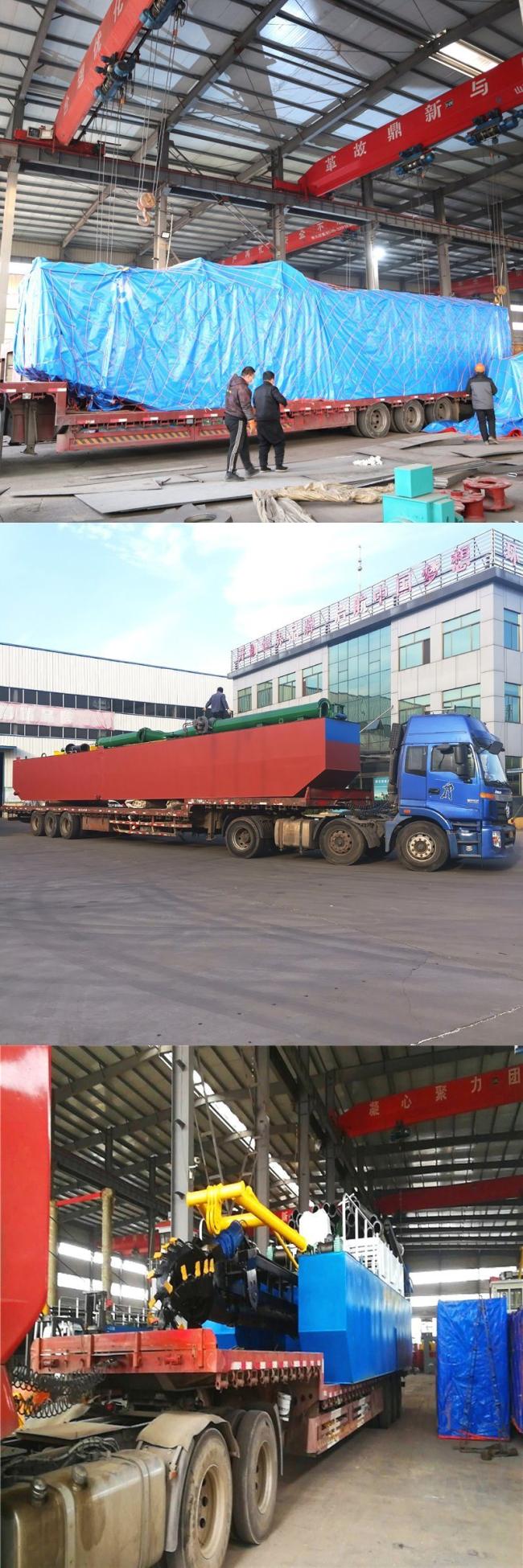

Packing and transportation :
Why choose us :
| 1 | 20 years' dredger manufacture workmanship |
| 2 | Fortune 500 Company chosen supplier |
| 3 | Large production ISO 9001 2015 CE quality system |
| 4 | 8 manufacture shops R&D center testing pool |
| 5 | Business in more than 38 countries |
| 6 | More than 10 series of dredging equipment .in addition also produce the river mining and land mining machinery service working boat . sand transportation boat . sand washing produce line and weed harvest so on |
| 7 | Enterprise credit rating AAA |
| 8 | We set up the branch in the abroad . it can be better to serve the our customers |
