24inch Cummins Diesel Engine Power Cutter Suction Dredger with and 2t Anchor Weight
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
Cummins diesel engine power cutter suction dredger with low price
Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together). all main parts such as sand pump and hydraulic pump power from the Cummins diesel engine . hydraulic pump provide the power for lifting winch swing winch . anchor boom winch . .hydraulic spud carrier and cutter head so on .
Set Sail main product : cutter suction dredger . jet suction dredger . wheel bucket suction dredger . bucket chain river mining and sand dredger .trailing hopper suction dredger .land mining machinery . multi function service working boat . sand transportation boat . sand washing platform . meantime we can according to the customers request to do the any dredging machinery .
![Cummins Diesel Engine Power Cutter Suction Dredger with Low Price]()
![Cummins Diesel Engine Power Cutter Suction Dredger with Low Price]()
Product Description:
Principle drawing :
![Cummins Diesel Engine Power Cutter Suction Dredger with Low Price]()
![Cummins Diesel Engine Power Cutter Suction Dredger with Low Price]()
Technical parameter:
Cutter suction dredger display:
Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
![Cummins Diesel Engine Power Cutter Suction Dredger with Low Price]()
![Cummins Diesel Engine Power Cutter Suction Dredger with Low Price]()
Detailed display :
![Cummins Diesel Engine Power Cutter Suction Dredger with Low Price]()
Cutter suction sand dredger advantage :

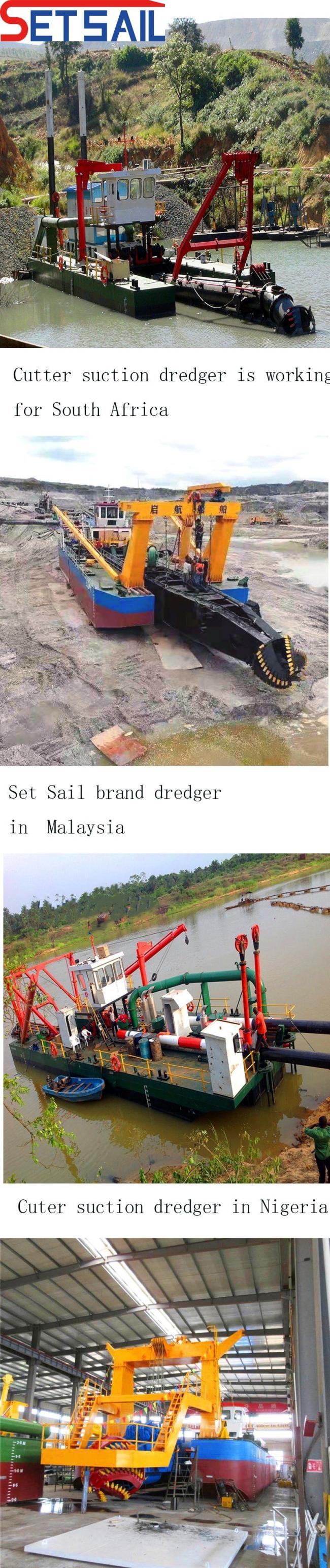

Set Sail dredger in abroad :
![Cummins Diesel Engine Power Cutter Suction Dredger with Low Price]()
Set Sail service :
Cutter suction dredger packaging and shipment:
![Cummins Diesel Engine Power Cutter Suction Dredger with Low Price]()
Our customers :
![Cummins Diesel Engine Power Cutter Suction Dredger with Low Price]()
Certification:
![Cummins Diesel Engine Power Cutter Suction Dredger with Low Price]()
Main product :
![Cummins Diesel Engine Power Cutter Suction Dredger with Low Price]()
Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together). all main parts such as sand pump and hydraulic pump power from the Cummins diesel engine . hydraulic pump provide the power for lifting winch swing winch . anchor boom winch . .hydraulic spud carrier and cutter head so on .
Set Sail main product : cutter suction dredger . jet suction dredger . wheel bucket suction dredger . bucket chain river mining and sand dredger .trailing hopper suction dredger .land mining machinery . multi function service working boat . sand transportation boat . sand washing platform . meantime we can according to the customers request to do the any dredging machinery .
Product Description:
| Set Sail cutter suction sand dredger is perfectly suited for dredging sand, mud, gravel in the river or lake, Pond and lagoon. configuration of Cummins marine diesel engine and Shijiazhuang slurry pump, this model dredger can keep perfect and stable performance. Besides, it can also be perfectly in dredging work of port construction and navigation channel maintenance with flexible operation. It can dredge sand, mud, clay, silt or other sediment in the water bed for passing vessel. |
Principle drawing :
| 1 | Cutter Head | 9 | Signal Light Support | 17 | Ventilator |
| 2 | Pulley for Ladder | 10 | Control Cabin Base | 18 | Spud |
| 3 | Pulley for Swing | 11 | Diesel Engine | 19 | Discharge Pipe |
| 4 | Anchor | 12 | 3 phase Electric Motor | 20 | Spud Holder |
| 5 | Pulley for A-shape Portal Frame | 13 | Diesel Engine | 21 | Rail |
| 6 | A-shape Portal Frame | 14 | Gearbox | 22 | Suction Pipe |
| 7 | Swing Winch | 15 | Slurry Pump | ||
| 8 | Control Cabin | 16 | Main Pontoon Cover |
Technical parameter:
| Size | 8inch | 10inch | 12inch | 18inch | 20inch | 24inch | 26inch |
| Dredging depth | 8m | 10m | 12m | 15m | 15m | 18m | 18m |
| Water flow (15%) | 800m3 | 1500m3 | 2000m3 | 3500m3 | 5000m3 | 7000m3 | 9000m3 |
| Capacity | 160m3 | 300m3 | 400m3 | 700m3 | 1000m3 | 1400m3 | 1800m3 |
| Discharge distance | 1000m | 1000m | 1200m | 1500m | 2000m | 2000m | 2100m |
| Total weight | 85t | 90t | 120t | 180t | 230t | 360t | 380t |
| Total length | 31.1m | 31.1m | 31m | 39m | 39m | 46m | 46m |
| Total width | 5.5m | 5.5m | 7m | 8.6m | 8.8m | 10.2m | 10.2m |
| Total depth | 1.48m | 1.48m | 2m | 2.25m | 2.2m | 2.7m | 2.7m |
| Pump size | 200 | 250 | 350 | 450 | 500 | 600 | 650 |
| Head | 46m | 53m | 50m | 65m | 54m | 51m | 57m |
| Discharge pipe dia. | 250mm | 350mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Engine brand | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins |
| Main engine power | 230kw | 456kw | 557kw | 1137kw | 1335kw | 1620kw | 1950kw |
| Auxiliary engine power | 100kw | 122kw | 200kw | 260kw | 405kw | 700kw | 700kw |
| Pump gerbox brand | Fada | Fada | Fada | Fada | Fada | Fada | Fada |
| Hydraulic gerbox brand | Fada | Fada | Fada | Fada | Fada | Fada | Fada |
| Cutter head power | 50kw | 64kw | 78kw/108kw | 180kw | 260kw | 450kw | 450kw |
| Cutter head dia. | 1000mm | 1200kw | 1450kw | 1800kw | 2000kw | 2400kw | 2400kw |
| Spud weight | 2.22t | 3.42t | 7.2t | 16.3t | 18.65t | 26.5t | 26.5t |
| Anchor boom length | 6m | 9m | 12m | 15m | 15m | 18m | 18m |
| Trolley moving distance | 2.5m-3.5m | 2.5m-4m | 2.5m-4m | 4m-6m | 4m-6m | 6m-8m | 6m-8m |
| Hydraulic brand | Rexroth | Rexroth | Rexroth | Rexroth | Rexroth | Rexroth | Rexroth |
| Anchor weight | 200kg | 250kg | 400kg | 1t | 1.5t | 2t | 2t |
| PLC brand | Siemens | siemens | siemens | siemens | siemens | siemens | siemens |
Cutter suction dredger display:
Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.

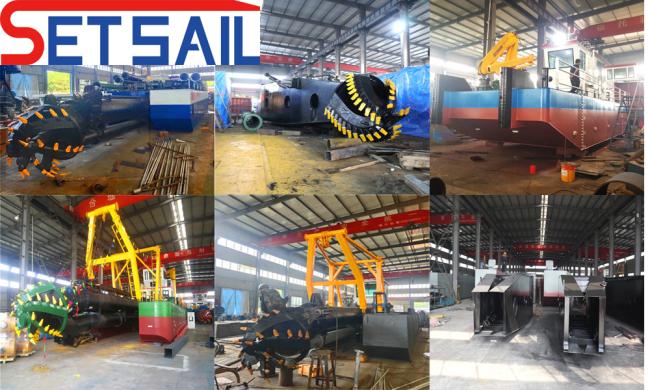

Detailed display :
| The below pictures is the normally configuration . we can according to the requirements of customers to customized . such as marine diesel engine Cater . Cummins . Weichai .Yuchai etc for choice. Slurry pump from Shijiazhuang industrial pump factory . beside we can offer Qiangda pump factory so on. Hydraulic control system from Germany Rexorth . vickers and parker can choice. Gearbox from Hangzhou Fada. Our full of electrical power cutter suction dredger adopts Cummins set generator with the famous electric motor . |
Cutter suction sand dredger advantage :

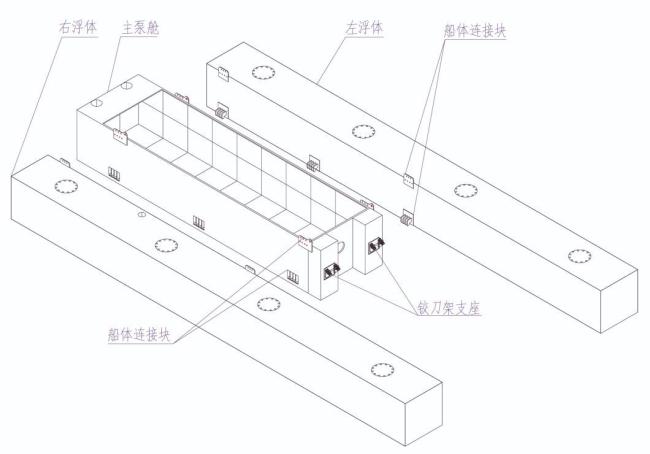

| 1 | Standard design: The pontoons and main spare parts are connected by the bolts and nuts, which means the dredger can be dismantled in the factory and mounted in the construction sites. Of course, the delivery time will be reduced a lot by containers. |
| 2 | World -class spare parts: We use the best parts like Cummins diesel engine and Siemens PLC controlling system, Shijiazhuang pump.......Also, we build a efficient system to optimize the flow the production so as to guarantee the quality and function of the dredgers. |
| 3 | Dredger application The dredgers can be adapted to different circumstance like river and lake. The material like sand, stones, mud, salt can be easily sucked and discharged to the destination place. |
Set Sail service :
| 1 | Inquiry and consulting support. Our service team all online to guide for every problem |
| 2 | Sample sand dredger testing support. We have testing support for all dredger |
| 3 | View our Factory. Welcome to inspect factory |
| 4 | Training how to install the sand dredger boat, training how to use the sand dredger .training how to repair dredger |
| 5 | Engineers available to service sand dredger boat overseas. When the complex failure we will send the engineer to oversea |
| 6 | After sales team in Nigeria, India, Bangladesh, Colombia etc for 24h sand dredger boat after-sale service |
| 7 | we can offer the all guide service :assemble .repair and free for training the local workers |
Our customers :
Certification:
Main product :
