28inch Cutter Suction Dredger for River Sand Lifelong After-sales Service Guaranteed
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
Hydraulic control 28inch cutter suction dredger for river sand
1. 28 inch cutter suction dredger parameter : | Item | Parameter | Remark |
| Dredging depth | 20m | Add undereater pump can reach the 30meter |
| Solid capacity | 1400m3 | According to 20% concentration to count |
| Discharge distance | 2200m | Add the booster station can reach the long distance transportation |
| Load draft | 2m | |
| Total weight | 700t | |
| Toal length | 45m | |
| Total width | 9.8m | |
| Total depth | 3.6m | it means the dimension is from bottom to the deck |
| Bottom plate thickness | 14mm | CCS Standard |
| Front and back plate thickness | 20mm | |
| Side plate thickness | 12mm | |
| Deck plate thickness | 12mm | |
| Pump brand | Shijiazhuang industrial pump factory | According to the customer's request to choose the brand |
| Water flow | 7000m3 | we can do the over 20000m3 cutter suction dredger |
| Head | 64m | |
| Rotate speed | 400r/m | |
| Efficiency | 81.50% | |
| Suction /Discharge pipe diameter | 600mm | Diameter is not changeless according to the anthentic situation to choice . |
| Main engien brand and power | Cummins 3000kw | Can provide CAT .Weichai so on diesel engine brand |
| Rotate speed | 1900r | Rotate speed is adjustable |
| Auxiliary diesle engine and brand | Cummins 1000kw | Can provide CAT .Weichai so on diesel engine brand |
| Driving Pump and hydraulic system gerbox Brand | Hangzhou Fada | |
| Sup diameter *wall thickness | 860mm*25mm | |
| Weight | 700ton | |
| Lifting winch first layer pull | 200KN | |
| Wire rope diameter | 28mm | |
| Swing winch first layer pull | 160KN | |
| Wire rope diameter | 26mm | |
| Anchor boom length | 18m | |
| Spud carriage stroke | 6m-8m | |
| Spund carriage pontoon length | 12m |

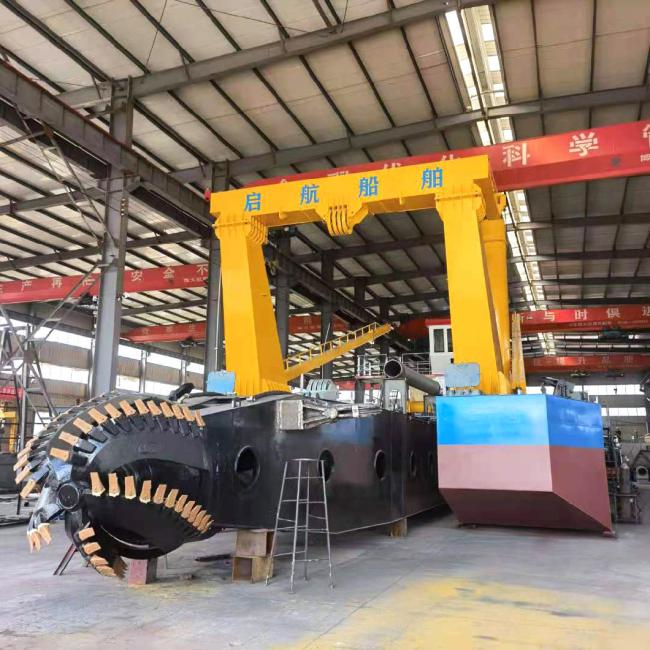

2. Cutter suction dredger shows :
Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
3. Set sail cutter suction dredger feature :
| 1 | A wide range of use applications. General used for river. lake .sea .reservoir .and inland waterway so on |
| 2 | Full hydraulic control with Rexroth. Vickers . all brand from the abroad . |
| 3 | Siemens PLC operation with the operation convenience.modular control all data in the one place. |
| 4 | Dredger components available in factories to allow short delivery times . all conponents is tested serious . |
| 5 | Follow manufacture guideline: CCS-ZC standard .all process can reach the international standard. |
| 6 | Western Dredge brand parts. easy to find globally . All the accessories have overseas service points |
| 7 | Optional equipment is available such as Spud carriage, anchor boom. underwater pump so on . |
| 8 | Gain access to our sales team. design team. manufacture team 24/7. help the customers solves failure in time. |
| 9 | The modular design enables fast assembly with seniors engineers . |
7.Our service :
| *Our factory can offer the long time after -sale service and free spare parts for customers |
| *Our factory can offer the experienced installation team for installation and training the local workers |
| *we can according to the request of customers to choose the reasonable and practical device |
| *we can provide the professional and quick solution for any problem |
| *we have the professional technician regularly to follow up customers |
| *we can sign all kinds of agreement to ensure the customers right |

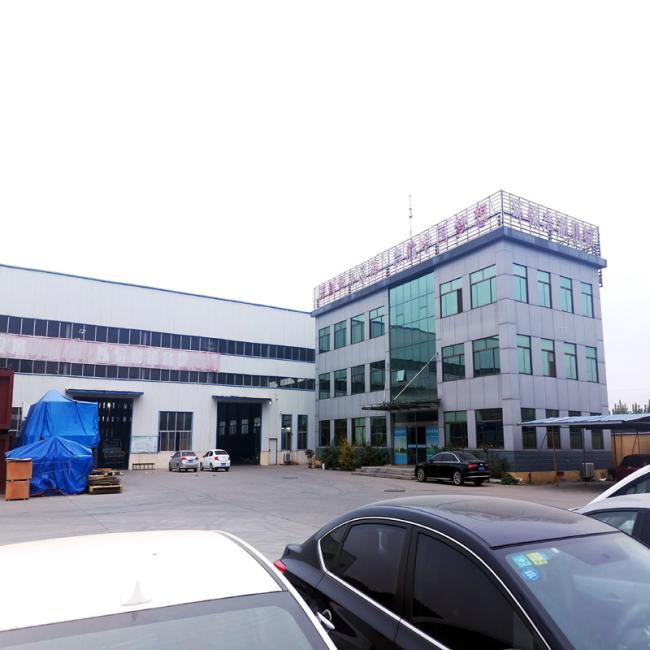

4.About Set Sail dredger factory:
| 1 | 30 years' dredger manufacture workmanship. especially large water flow dredger field . |
| 2 | Fortune 500 Company chosen supplier .Germany . American brand as the main conponents on my dredger. |
| 3 | Enterprise credit rating AAA. Enterprise credit can ensure the product quality and all service . |
| 4 | 6 manufacture shops .R&D center, testing pool. |
| 5 | Large production. ISO 9001 2015 quality system. CE certification so on . |
| 6 | Presences more than 40 countries. |
5. Customer visit our factory :
6. Certification :

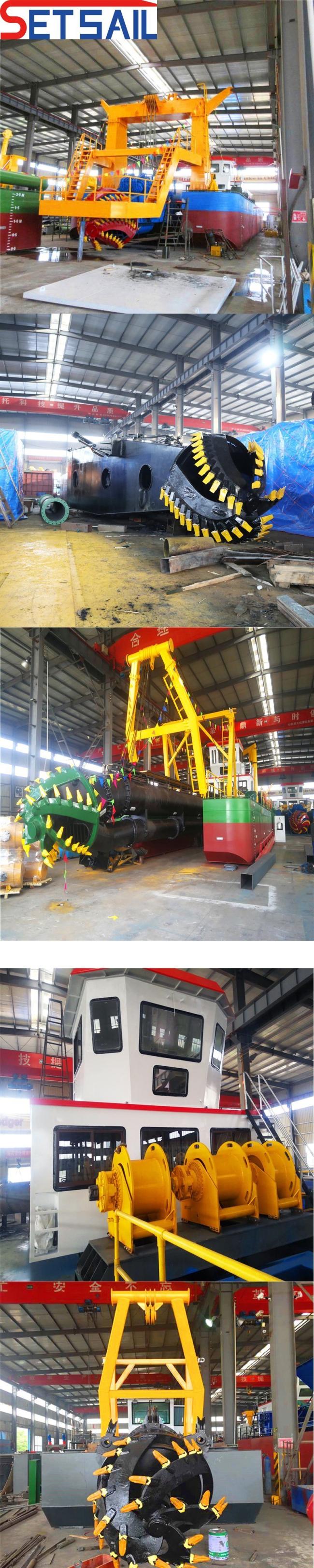

7. Main product picture :
