28 Inch Water Flow 7000m3 Cutter Suction Dredger with 160kn Swing Winch Pulling Force
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description
28 inch water flow 7000m3 cutter suction dredger used in river
1. 28 inch cutter suction dredger parameter :
| Item | Parameter | Remark |
| Dredging depth | 20m | Add undereater pump can reach the 30meter |
| Solid capacity | 1400m3 | According to 20% concentration to count |
| Discharge distance | 2200m | Add the booster station can reach the long distance transportation |
| Load draft | 2m | |
| Total weight | 700t | |
| Toal length | 45m | |
| Total width | 9.8m | |
| Total depth | 3.6m | it means the dimension is from bottom to the deck |
| Bottom plate thickness | 14mm | CCS Standard |
| Front and back plate thickness | 20mm | |
| Side plate thickness | 12mm | |
| Deck plate thickness | 12mm | |
| Pump brand | Shijiazhuang industrial pump factory | According to the customer's request to choose the brand |
| Water flow | 7000m3 | we can do the over 20000m3 cutter suction dredger |
| Head | 64m | |
| Rotate speed | 400r/m | |
| Efficiency | 81.50% | |
| Suction /Discharge pipe diameter | 600mm | Diameter is not changeless according to the anthentic situation to choice . |
| Main engien brand and power | Cummins 3000kw | Can provide CAT .Weichai so on diesel engine brand |
| Rotate speed | 1900r | Rotate speed is adjustable |
| Auxiliary diesle engine and brand | Cummins 1000kw | Can provide CAT .Weichai so on diesel engine brand |
| Driving Pump and hydraulic system gerbox Brand | Hangzhou Fada | |
| Sup diameter *wall thickness | 860mm*25mm | |
| Weight | 700ton | |
| Lifting winch first layer pull | 200KN | |
| Wire rope diameter | 28mm | |
| Swing winch first layer pull | 160KN | |
| Wire rope diameter | 26mm | |
| Anchor boom length | 18m | |
| Spud carriage stroke | 6m-8m | |
| Spund carriage pontoon length | 12m |

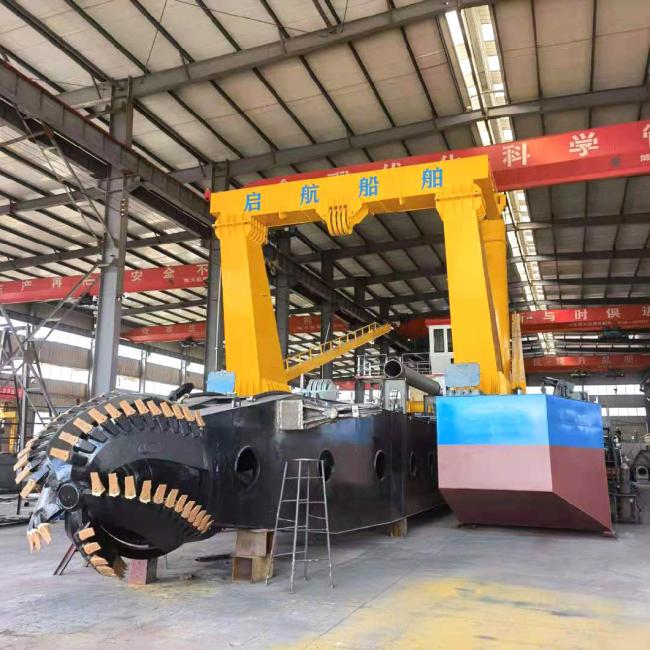

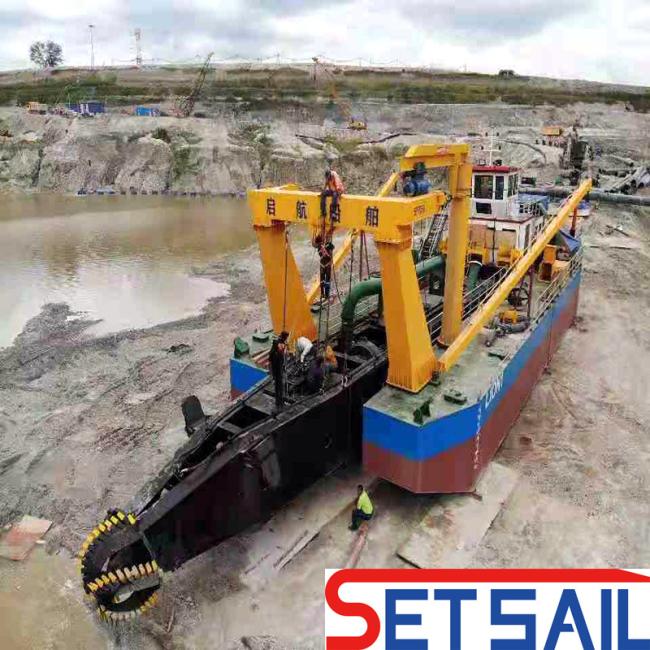

2. Cutter suction dredger shows :
3. Set sail cutter suction dredger feature :
| 1 | A wide range of use applications. General used for river. lake .sea .reservoir .and inland waterway so on |
| 2 | Full hydraulic control with Rexroth. Vickers . all brand from the abroad . |
| 3 | Siemens PLC operation with the operation convenience.modular control all data in the one place. |
| 4 | Dredger components available in factories to allow short delivery times . all conponents is tested serious . |
| 5 | Follow manufacture guideline: CCS-ZC standard .all process can reach the international standard. |
| 6 | Western Dredge brand parts. easy to find globally . All the accessories have overseas service points |
| 7 | Optional equipment is available such as Spud carriage, anchor boom. underwater pump so on . |
| 8 | Gain access to our sales team. design team. manufacture team 24/7. help the customers solves failure in time. |
| 9 | The modular design enables fast assembly with seniors engineers . |
4.About Set Sail dredger factory:
| 1 | 30 years' dredger manufacture workmanship. especially large water flow dredger field . |
| 2 | Fortune 500 Company chosen supplier .Germany . American brand as the main conponents on my dredger. |
| 3 | Enterprise credit rating AAA. Enterprise credit can ensure the product quality and all service . |
| 4 | 6 manufacture shops .R&D center, testing pool. |
| 5 | Large production. ISO 9001 2015 quality system. CE certification so on . |
| 6 | Presences more than 40 countries. |

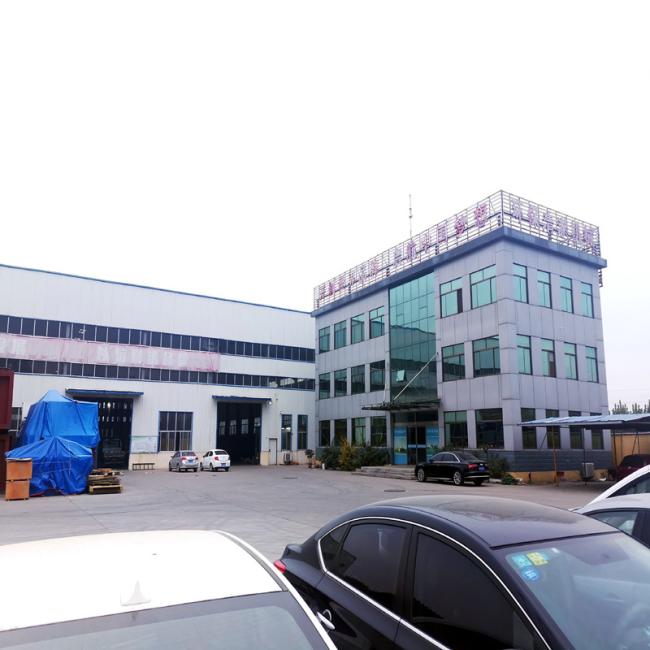

5. Customer visit our factory :
6. Certification :

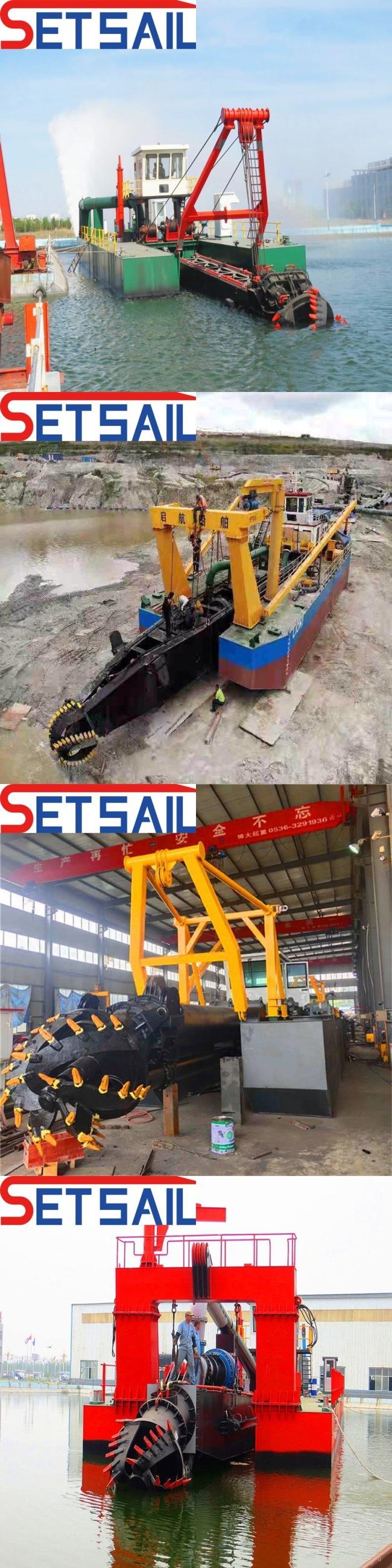

7. Main product picture :
8.FAQ: Q1, Is Set Sail a factory or trading company?
A: Set Sail - Qingzhou Set Sail Dredging Equipment Equipment Co., Ltd is a leading dredger manufacturer in China, we have 6 factories and over 100 workers to enable large production.
Q2, What are the services the Set Sail company is providing?
A: Free dredger consultation, drawing design, customization, on-site visits, 24/7 availability, free assembly, training, operation testing, and lifetime technical assistance.
Q3, What are the delivery terms?
A: Set Sail Dredger delivery can be in containers or in bulk depends on the dredger size. Set Sail has in-stock dredgers, and constantly storing dredger parts, pipes, pontoons, to shorten the delivery period for special needs.
Q3, What about the payment terms?
A: Payment can be paid in T/T or L/C, payment terms and financial support can be discussed.
Q4, What are the warranty terms?
A: Set Sail provides a standard 1-year warranty, free problem solving with lifetime technical assistance
Q5, Why you say Set Sail is your trustworthy dredger manufacturer?
A: Set Sail is a trustworthy dredger manufacturer because we have 30 years' manufacturer workmanship, trusted by many Fortune 500 companies globally. Set Sail continuing to innovate and develop new products such as amphibious dredger, salt mining dredger and more, upgrades existing dredger technology. Our engineers and designers are hired from prestigious dredger institutions in China. Our products are working in more than 40 countries so far and have 6 global offices to better serve our clients.
